DIESEL FILTER - TURBINE SERIES GTB681DM GRIFFIN

DIESEL FILTER - TURBINE SERIES GTB681DM GRIFFIN

Regular price $2,613.30 AUD
Regular price Sale price $2,613.30 AUD
Sale Sold out
Quantity

Description

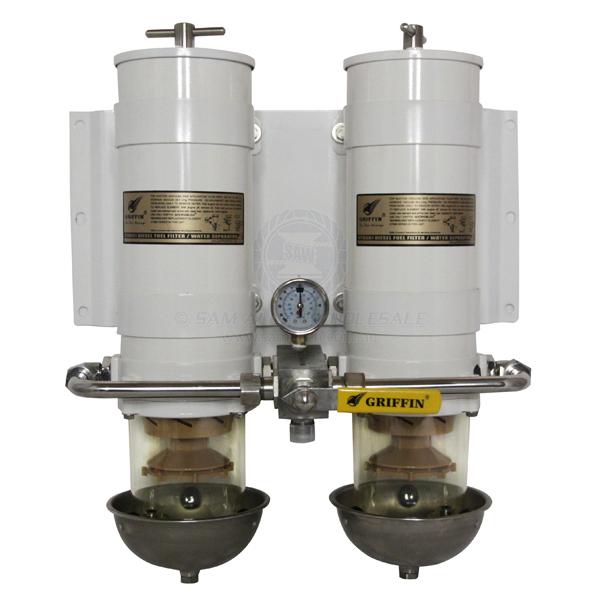

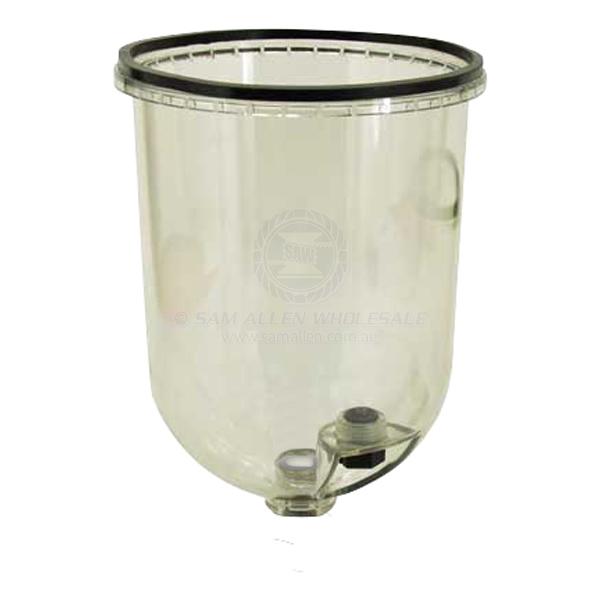

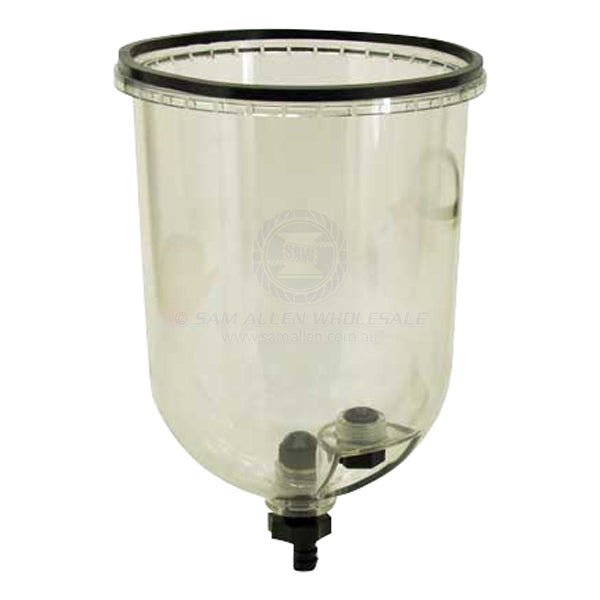

Diesel Filter Kit GTB681DM Double Manifold Bowl & Shield

Specifications

Part No. CMW-374132
Port Size 7/8-14 inch UNF
Flow Rate 1363LPH (360GPH)
Service Clearance 254mm
Dimensions H 542mm x W 476mm x D 253mm
Temperature -20°C / +121°C
Clean Pressure Drop 25.5kPa
Max. Operating Pressure 103kPa
Unit Qty 1

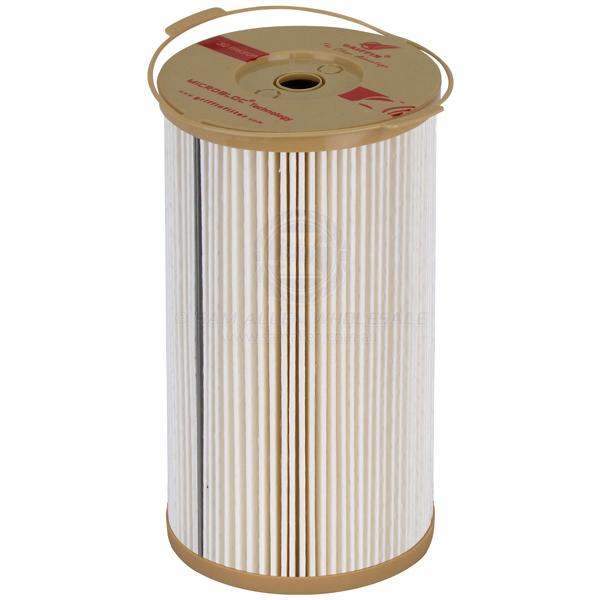

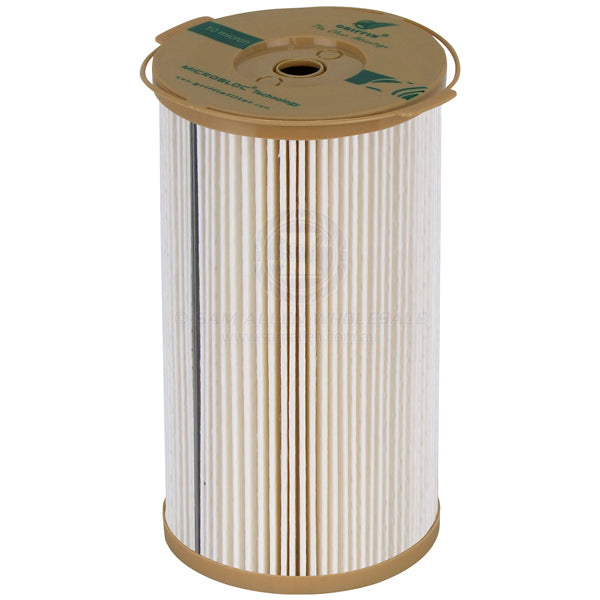

Note • Provides unsurpassed fuel filtration and water separation, and is comparable to the Racor Marine 1000 series filters. • The GTB681 series filter use GRIFFIN replacement element GTB68, formerly designated as G2020, to remove contaminants as small as 2 microns with that size element. Elements are also available in 10 and 30 micron sizes. • Supplied as standard with a 10 micron GRIFFIN MICROBLOC element. * Hose fittings are not included.

Guides & Documents

GTB228DM_GTB681DM-MAS_Turbine_Manifold_Series.pdf
