DIY Eye To Eye Single Axle Trailer Suspension Kit 1000Kg Rated 60"-75" Long Axles

EYE TO EYE SHACKLE SPRING DIY SINGLE AXLE TRAILER KIT.
AXLE LENGTHS 60"- 75" (for longer axles SKU: 180704158956)
EYE TO EYE SHACKLE SPRINGS


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$20
6 STUD D40/NP300 (6/114.3 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD SUZUKI / F100 (5/139.7, 9/16" STUDS AND NUTS) +$20

AVAILABLE LENGTHS
60", 1525MM TIP TO TIP (1425MM HUB FACE TO HUB FACE)
63", 1600MM TIP TO TIP (1500MM HUB FACE TO HUB FACE)
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)

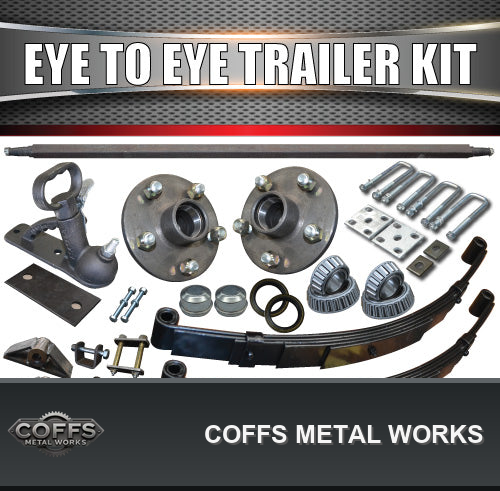

IN THIS KIT
1X 40MM SQUARE BARE AXLE, AVAILABLE IN 60", 63" 64", 65", 66, 67", 68", 69", 70", 71", 73", 75". ( IF YOUR NOT SURE ON THE SIZE YOU NEED THEN SEND US A MESSAGE WITH YOUR CHASSIS WIDTH AND WHEELS YOUR USING IN WHICH WE WILL GIVE OUR JUDGEMENT)

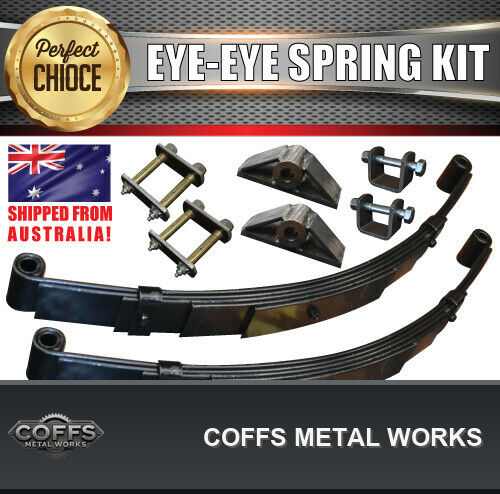

2X 5 LEAF 60MM BLACK EYE TO EYE SPRINGS. RATED 1380KG PER PAIR
2X FRONT HANGERS WITH SPRING BOLTS
2X REAR SHACKLE EXTRA STRENGTHENED HANGERS
2X REAR DOUBLE GREASABLE SHACKLE BOLTS WITH NYLOC NUTS
2X FISH PLATES
4X 40MM X 130MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

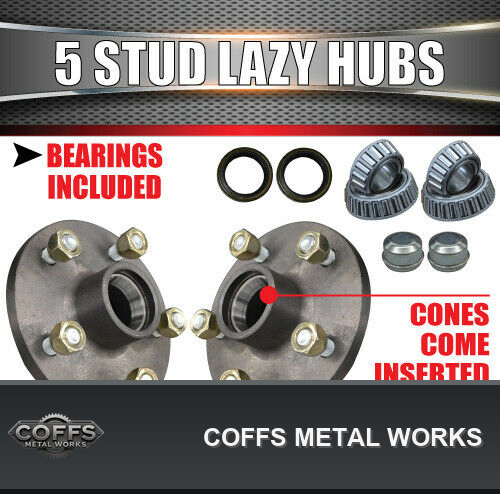

2X 5 STUD HUBS WITH CUPS ALREADY PRESSED IN. s.g casting
2X LM HOLDEN BEARING SETS (2X LM INNER BEARINGS, 2X LM OUTER BEARINGS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

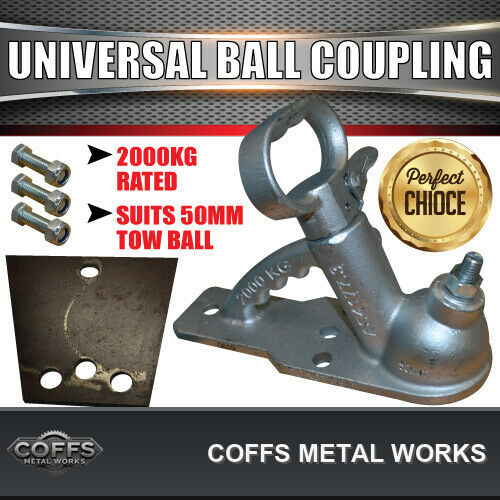

1X UNIVERSAL 50MM 2000KG BALL COUPLING
1X WELD ON COUPLING BASE PLATE
3X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS

SPRING ASSEMBLY BELOW

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
