DIY Single Axle Trailer Kit 750Kg Rated 45mm Slipper Springs. 39mm Stub Axles

DIY SINGLE AXLE TRAILER KIT.
750KG RATING


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$20
6 STUD D40/NP300 (6/114.3 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD SUZUKI / F100 (5/139.7, 9/16" STUDS AND NUTS) +$20

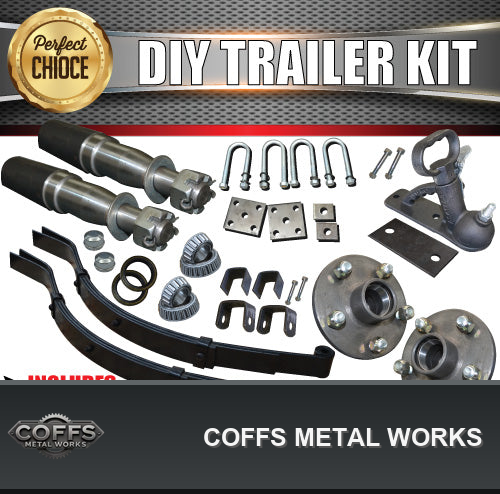

IN THIS KIT

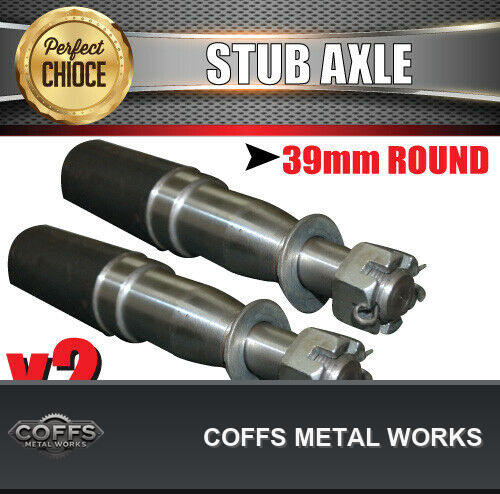

2X 39MM X 200MM STUB AXLES, WASHERS AND SPLIT PINS

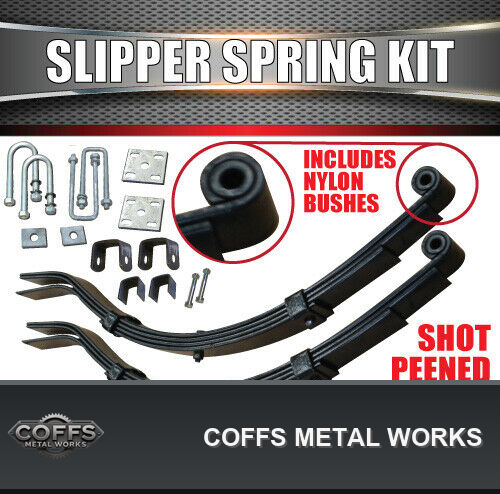

2X 4 LEAF 45MM BLACK SLIPPER SPRINGS WITH NYLON BUSHES. RATED 900KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
2X 1/2"SPRING BOLTS WITH SPRING WASHERS AND NUTS
2X FRONT SLIPPER HANGERS
2X REAR SLIPPER HANGERS
2X FISH PLATES
4X 39MM ROUND U BOLTS WITH SPRING WASHERS AND NUTS ( 50X130 1/2" UBOLTS AVAILABLE ON REQUEST )
2X AXLE PADS

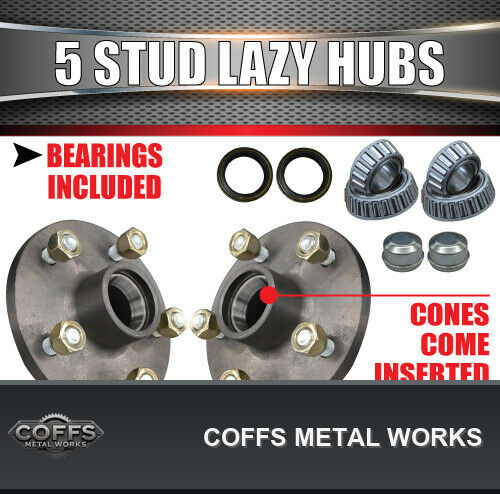

2X 5 STUD HUBS WITH CUPS ALREADY PRESSED IN. HUBS MADE FROM SG CAST WHICH IS MUCH STRONGER THEN GREY IRON
2X LM HOLDEN BEARING SETS (2X LM INNER BEARINGS, 2X LM OUTER BEARINGS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

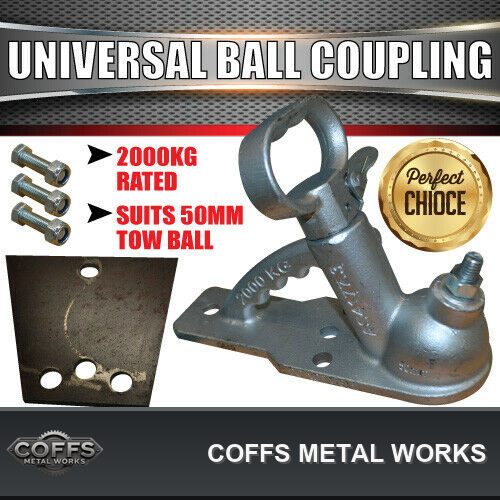

1X UNIVERSAL 50MM 2000KG BALL COUPLING
1X WELD ON COUPLING BASE PLATE
3X TENSILE COUPLING BOLTS WITH NYLOC NUTS

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
