Coffs Metal Works STAINLESS STEEL BRAKE KIT
WITH STAINLESS STEEL PISTONS, BACKING PLATES AND SLEEVE PINS
Also with stainless bearing buddy's
This Coffs Metal Works stainless steel ventilated hydraulic disc brake kit is much more superior to any standard trailer or RV brake kit. The ventilated stainless disc will allow the caliper to breathe and work at full capacity with better cooling . The ventilation disc will also allow any mud or water to easily release from the brake setup. With the caliper having dual bleed nipples it will allow more options for caliper position. The caliper also has a bolt and sleeve design. The stainless discs and calipers will allow a lot less headache of constantly having to replace the complete brake setup.

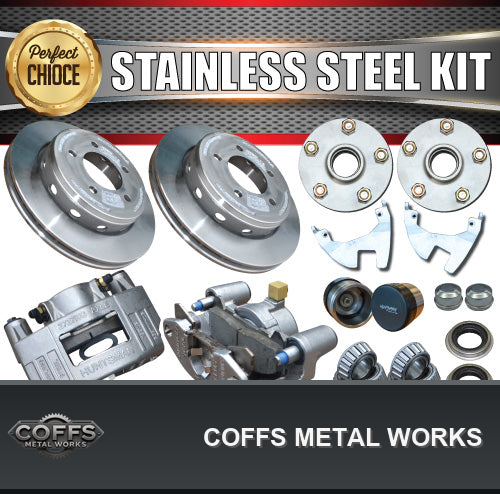

FULL KIT INCLUDES

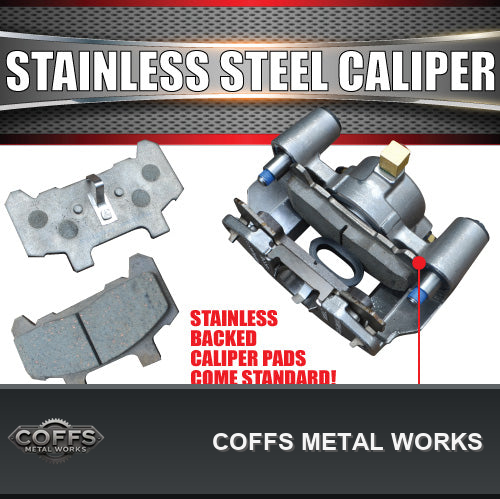

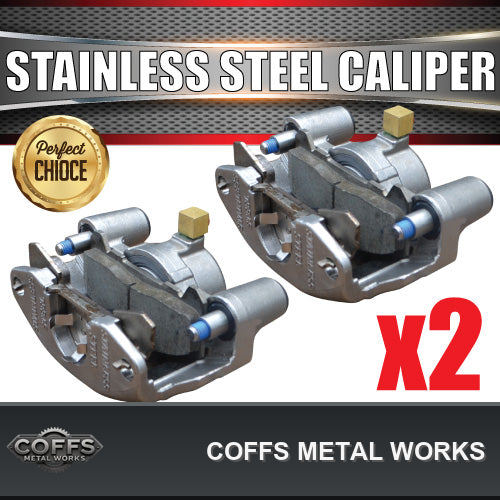

2X STAINLESS STEEL DISC BRAKE CALIPERS WITH STAINLESS BRAKE PADS

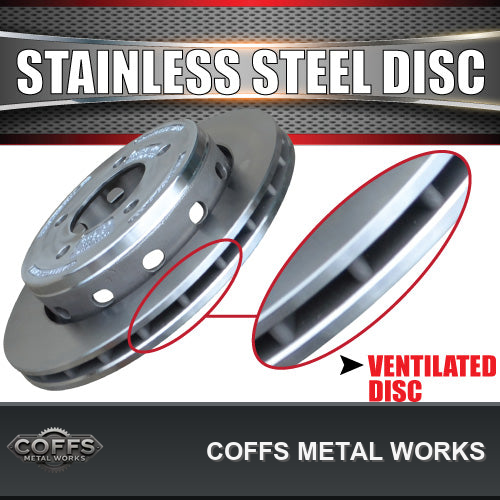

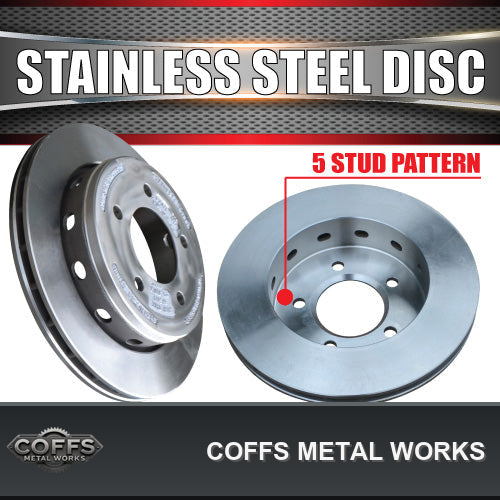

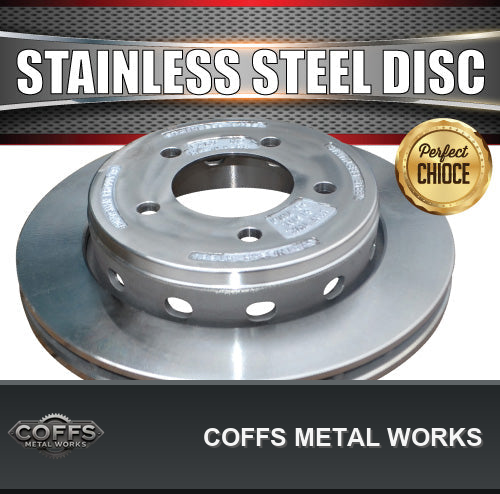

2X 10.9" STAINLESS STEEL VENTILATED DISCS
2X 40MM OR 45MM SQUARE SLIP OVER WELD ON DISC MOUNTS
2X DACROMET LAZY HUBS
2X COMPLETE BEARING KITS WITH STAINLESS STEEL MARINE SEALS
2X FREE ALL STAINLESS STEEL BEARING BUDDY'S
STUD PATTERNS & BEARING COMBINATIONS AVAILABLE
FORD 5/114.3 PCD- LM (L67048 INNER & L11949 OUTER), SLIMLINE (L68149 INNER & L12749 OUTER)
FORD AMERICAN 5/114.3PCD (L68149 INNER & L44649 OUTER)
COMMODORE 5/120 PCD- LM (L67048 INNER & L11949 OUTER), SLIMLINE (L68149 INNER & L12749 OUTER)
HT HOLDEN 5/108 PCD- LM (L67048 INNER & L11949 OUTER), SLIMLINE (L68149 INNER & L12749 OUTER)

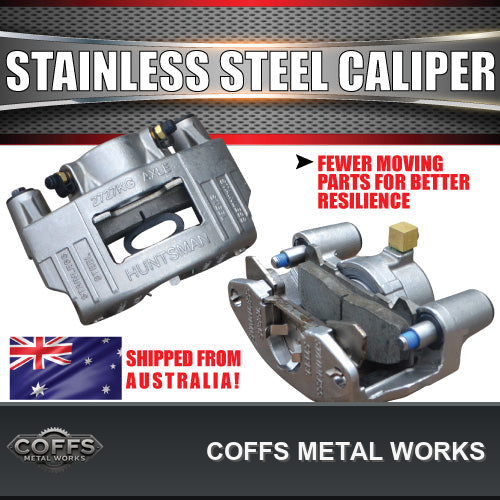

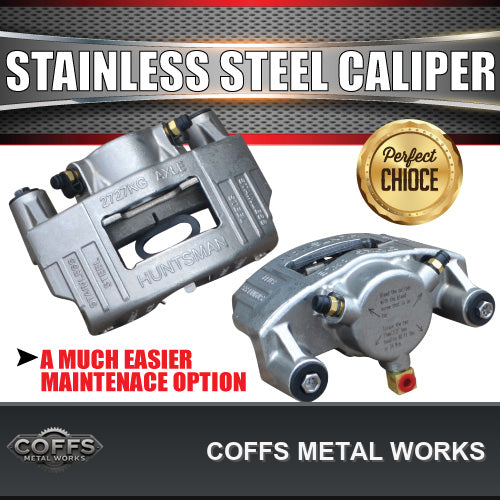

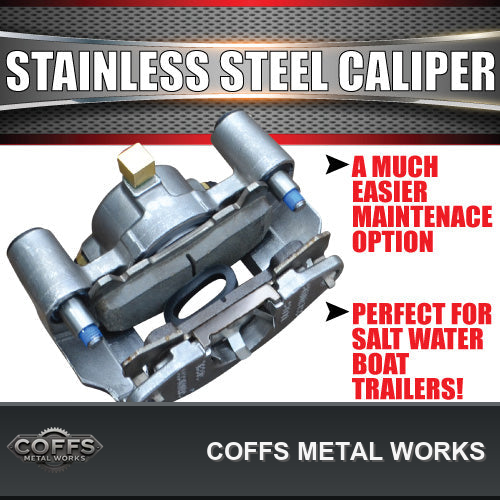

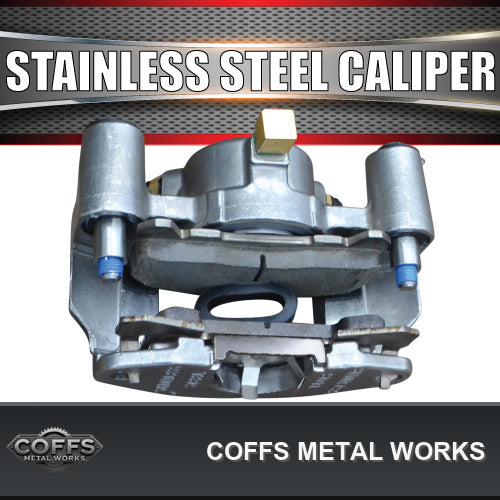

Coffs Metal Works STAINLESS CALIPERS

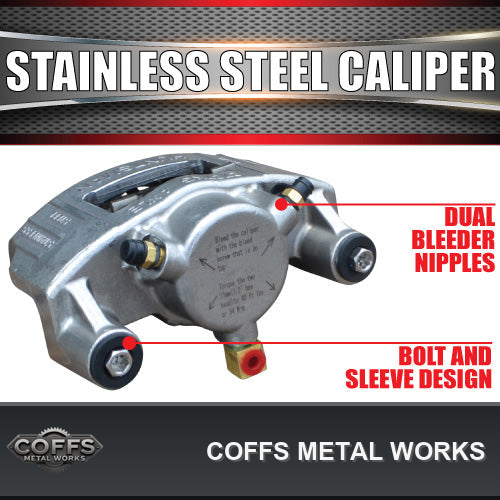

DUAL BLEEDER NIPPLES
STAINLESS STEEL BACKING PLATES
STAINLESS STEEL BOLT PINS
STAINLESS STEEL SLEEVES
HOLE CENTRES: 147MM
USED ON 10", 11" AND 12" DISCS
SUIT APPROX 23MM THICK DISCS

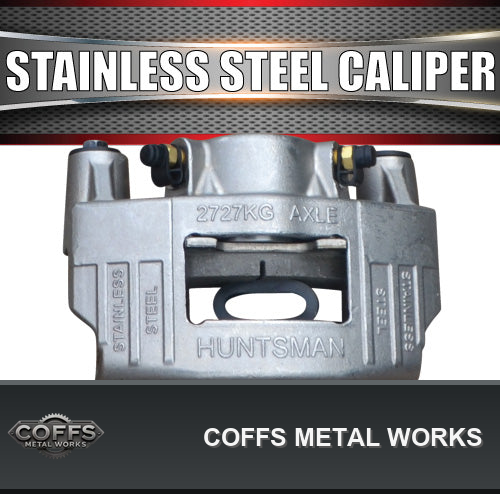

CALIPERS RATED TO 2727KG PER AXLE
