KUS TANK SENDERS - FUEL/WATER 1-1/4 BSP - 240-30 OHMS

$187.45 AUD

Sale Sold out

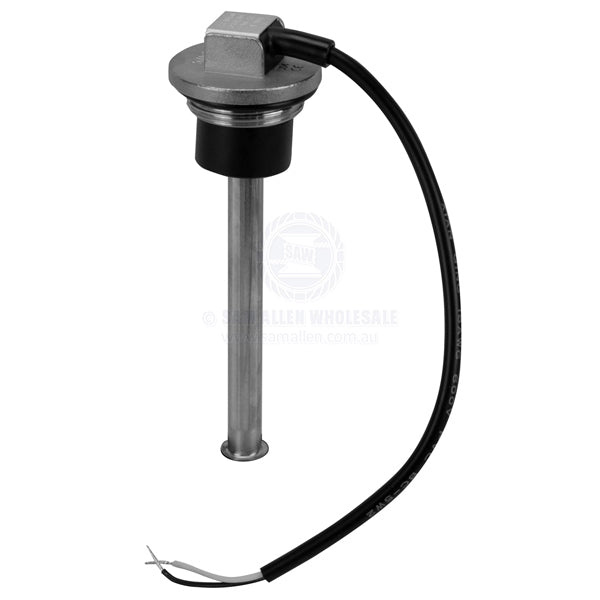

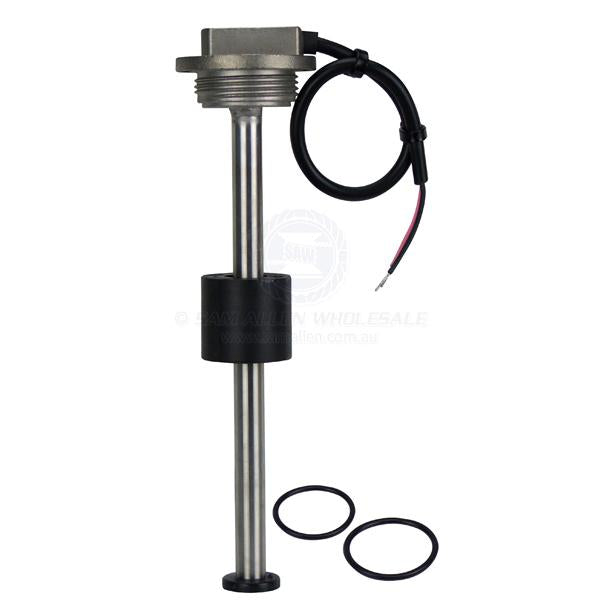

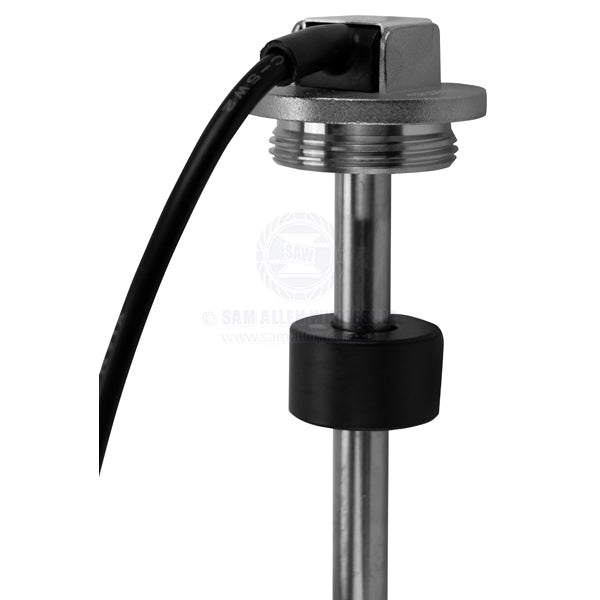

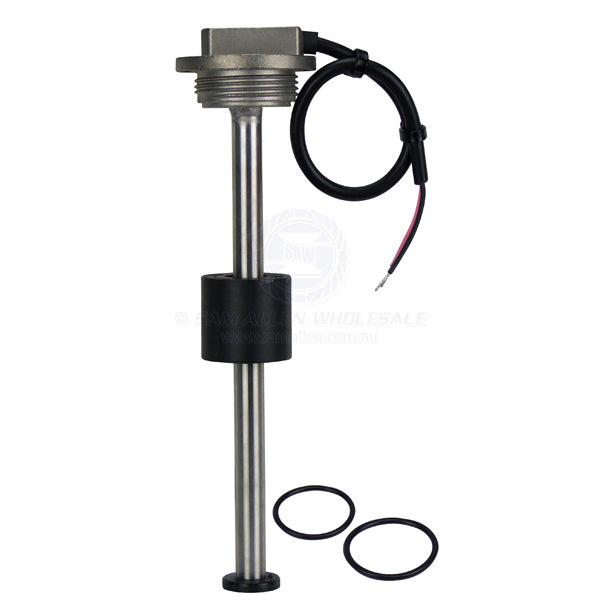

Sender 1-1/4 BSP SS 240-33 Ohms 1000mm

Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration.
Output signal: 240~33 Ohms.
316G stainless steel main body.
1-1/4 inch BSP twist-on thread assembly.
Operating temperature: -40°C - +85°C.
Protection Rating: IP67.

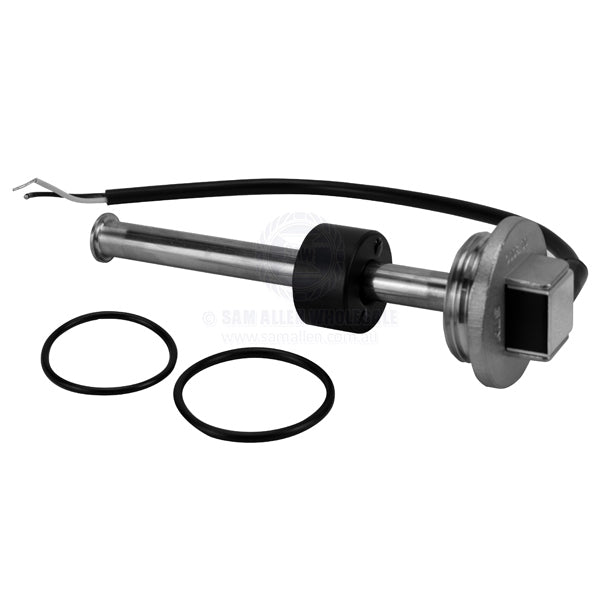

Mounting: 38mm x 2.6mm O-ring. 43mm x 3.5mm O-ring.
250mm tinned wire with PVC cover.
33mm float diameter.

Part No.	CMW-41100
Length	1000mm
Mount Style	1-1/4 inch BSP
Mount Flange	Dia. 54mm
OHMS	240-33

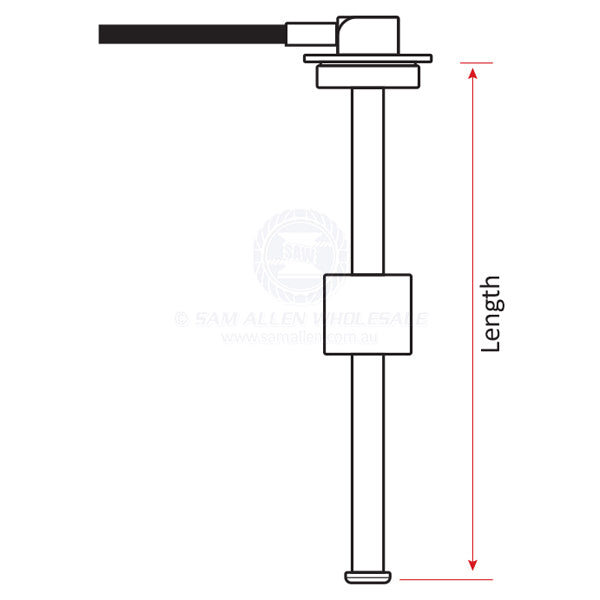

Note	Special sizes available to order. Length is measured from underside of the flange to the base of the shaft.
