LED Driving Light Wiring Harness
LED Driving Light Wiring Harness
Couldn't load pickup availability
Description
Built to withstand even the toughest conditions, the Rayzer™ LED driving lights are encased in a heavy-duty aluminum body with a high-resilience polycarbonate lens and connected by a 6-way DT connector making them ideal for heavy transport applications. These lights are also fully integrated with ECE-certified park, DRL, and indicator lights, ensuring safety and compliance with industry standards. The optional innovative 6-way Dual DT-style plug-and-play driving light wiring kit, features 12-24V operation, smart high beam signal detection, and allows easy installation of all functions. Enlighten your night-time driving experience with Rayzer™ LED driving lights, designed to truly slice the night.
Features
- Precision LED beam technology for maximum illumination
- Available in 7” or 9” for immersive performance
- Heavy-duty aluminium body with high resilience polycarbonate lens, made for heavy transport applications
- Integrated DRL, Indicator, and Park Light
- Innovative 6 Way DT style wiring kit for easy installation of all functions.
- Certified ECE Compliance
Specifications
| Voltage: | 9-33V Varivolt integrated circuitry |
| Power: | 7” 120W 9” 150W |
| Lumen: | 7” 12000lm 9” 15000lm |
| Lux: | 7” 1lx @750M 9” 1lx @950M |
| Mounting | Heavy duty Bracket 3 bolt |
| Environmental | IP69K Hermetic sealing |
Parts List
| CMW-LDL9700 | 7” HD LED Driving Lights W/ PARK & DRL Single Lamp |
| CMW-LDL9900 | 9” HD LED Driving Lights W/ PARK & DRL Single Lamp |

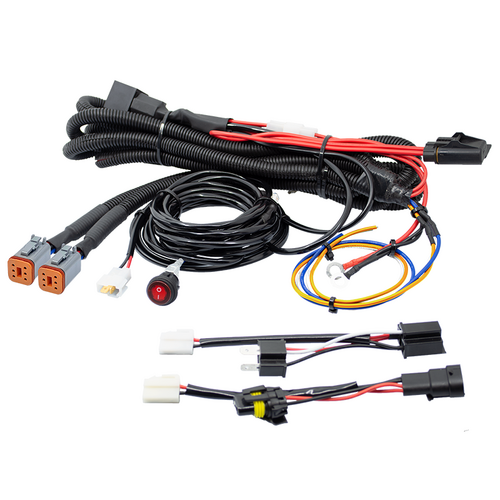

| CMW-LDLWK200 | Dual DT Driving Light Wiring Harness |
