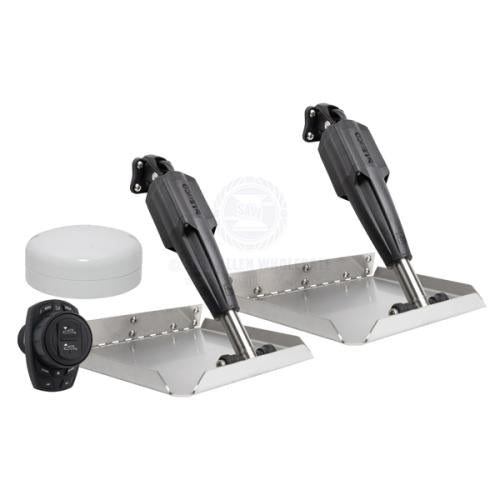

LENCO Pro Control Auto System – Edge Mount Tab Kit

The LENCO Pro Control Auto System – Edge Mount Tab Kit delivers industry‑leading auto‑levelling and unprecedented precision, control and comfort on the water. Engineered for boat applications where a lower actuator mounting height is required, this system mounts the actuator at the trailing edge of the blade, reducing mounting height by 3 inches (7.6 cm) on 12‑inch (30.5 cm) blades. All blade edges are turned up for added strength, rigidity and a clean, modern appearance.

Designed around LENCO’s advanced Pro Control Auto technology, the system constantly monitors boat attitude and makes real‑time trim adjustments. This results in faster planing, improved fuel efficiency, reduced bow rise and a smoother ride in all conditions. The SD Pro actuators provide quiet, powerful electric operation with no hydraulics, no leaks and minimal maintenance.

Built with marine‑grade materials, sealed electronics and corrosion‑proof mounting hardware, this kit is engineered for harsh Australian saltwater environments and heavy offshore use. It integrates seamlessly with LENCO’s Pro Series components, making it the premium choice for trailer boats, offshore fishing vessels, cruisers and commercial craft wanting modern, automated trim tab performance.

Available now at Coffs Metal Works, with Australia‑wide delivery on all LENCO trim tab systems, actuators and accessories.

Kit Includes

• Pro Control Auto Keypad (557032)
• Pro Control Auto IMU (557038)
• 2 x Edge Mount electro‑polished blades

• • 1" (2.5 cm) turned‑up edges

  • 5° taper on both sides to the trailing edge

  • 1/8" (3.2 mm) hinge pin

• 2 x SD Pro Actuators

  • 2.25" stroke

  • 11.5" pin‑to‑pin length (557054)

• 6 x Micro‑C Tee Connectors (557088)
• Micro‑C Power Cable with fuse and ground (557072)
• Micro‑C Drop Cables:

  • 2 × 6 ft (557073)

  • 1 × 15 ft (557074)

  • 1 × 25 ft (557076)

• 2 x 6‑Pin Deutsch to Micro‑C Actuator Network Adapter Cables (557080)
• 2 x 3 ft Pro Control Actuator Power Pigtails (557082)
• Wake Signal Adapter for Non‑Mercury Systems (557084)
• 2 x Corrosion‑proof Upper Mounting Brackets with gland seal (557064)
• 2 x Corrosion‑proof Lower Mounting Brackets (557066)
• LENCO 2K Backbone Kit

 Highlights

• LENCO Pro Control Auto System
• Industry‑leading auto‑levelling
• Reduced actuator mounting height for tight installations
• Edge‑mount blades with turned‑up edges for added strength
• Quiet, responsive SD Pro actuators
• Complete Micro‑C network cabling included
• Corrosion‑proof mounting hardware
• Ideal for offshore and trailer boats
• Premium LENCO performance stocked by Coffs Metal Works
• Australia‑wide delivery on trim tab systems and accessories
