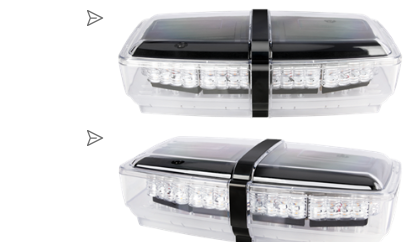

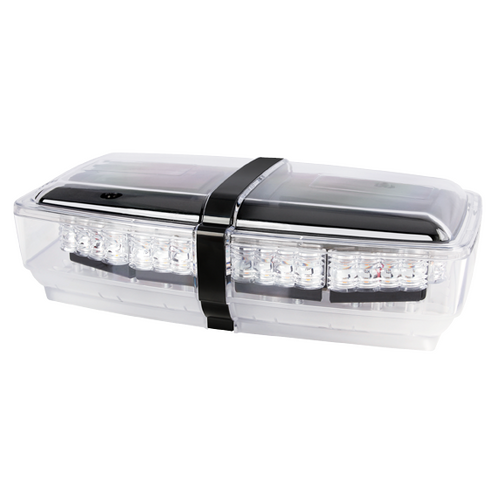

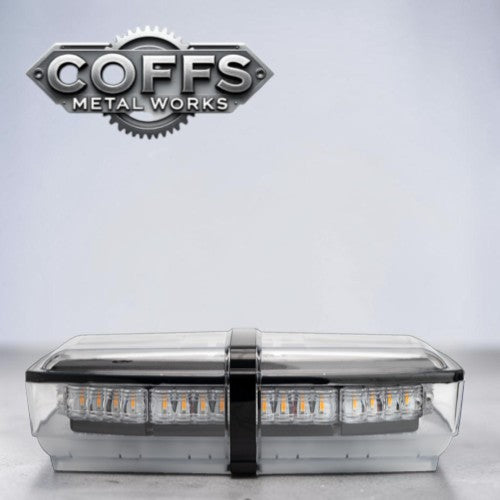

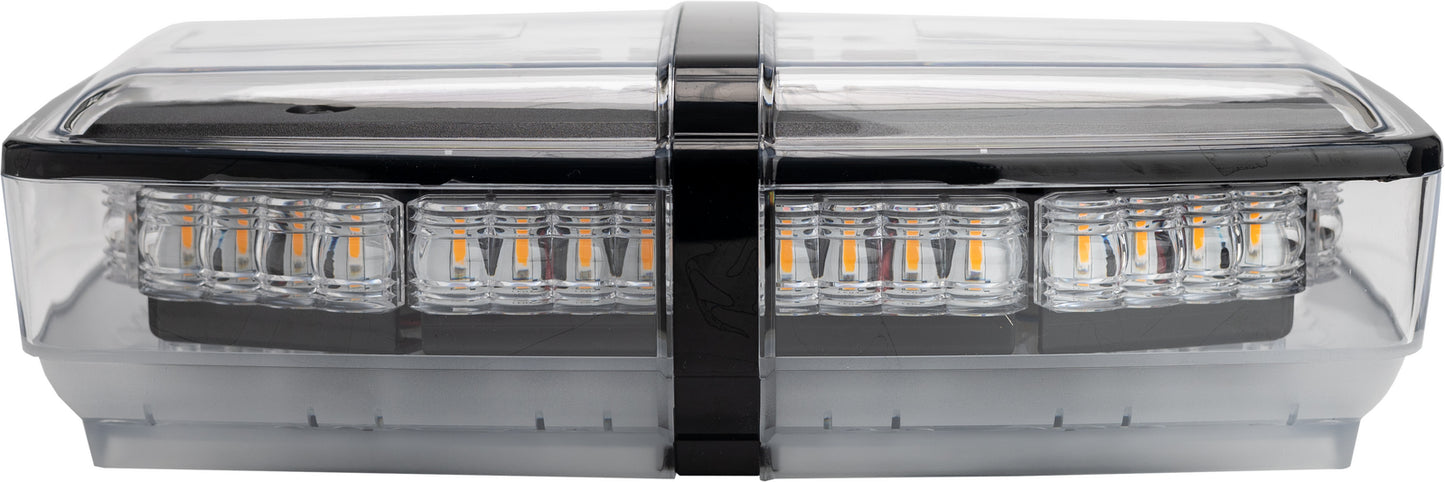

Light Bar Mini 278MM Amber class 1 Stud Mount
Light Bar Mini 278MM Amber class 1 Stud Mount
Regular price
$123,456,789.00 AUD
Regular price
Sale price
$123,456,789.00 AUD
Quantity
Couldn't load pickup availability
Product Description
Description
The BE280 series mini light bar is the next generation in compact, high output LED warning lights for roof mount applications. This mini light bar features 11 selectable flash patterns with 2 compliant ECE R65 / SAE Class 1, single and double flash modes. This mini light bar is also compliant with R10 and CISPR 25 Class 3 and with a voltage range of 10-30V DC, and fully sealed to IP69 this mini light bar is designed for commercial and industrial use where high quality standards matter.
Features
- • Compact design
- • 11 flashing options
- • 10-30 Volt
- • Stud mounting
- • ECE & SAE approval
Features
Features
- Emarked (ECE R65) / EMC R10 (EMI Compliant) / SAE J845 Class 1
- Stud / Magnetic mount options
- Low current draw
- 10 Adjustable flash patterns
- Fully sealed weatherproof IP67
- 360∞ light distribution, no dark spot
Specifications
Specifications
| Voltage: | 10-30 Varivolt® |
| Power: | 0.5 W |
| Lens: | Polycarbonate |
| Housing: | Polycarbonate |
| Mounting | Stud Mount |
| Environmental | IP69K |
| Approvals: | SAE Class 1 ECE R65 ECE R10 CISPR 25 Class 3 |
Flashing Modes
| 1 | Single |
| 2 | Double |
| 3 | Triple |
| 4 | Quadruple |
| 5 | Single Left + Single Right |
| 6 | Double Left + Double Right |
| 7 | Single + Triple |
| 8 | Double + Quadruple |
| 9 | Single + Double + Triple |
| 10 | Single + Triple+ Quintuple |
| 11 | Strobe |
Parts List
| BE280-ST | Amber Stud Mount Warning Beacon |
