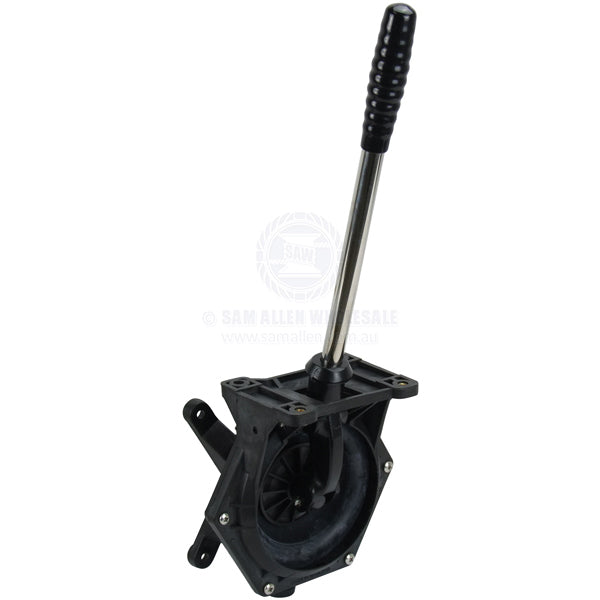

Pump bilge manual Patay SD60 under deck single action 80 l/min
Specifications
Part No.
CMW-23520
Length
200mm
Width
180mm
Height
120mm
Capacity
80 Ltr/min
Max. Head
4.5m
Max. Lift
6m
Hose I.D.
1 inch / 1-1/2 inch
Note

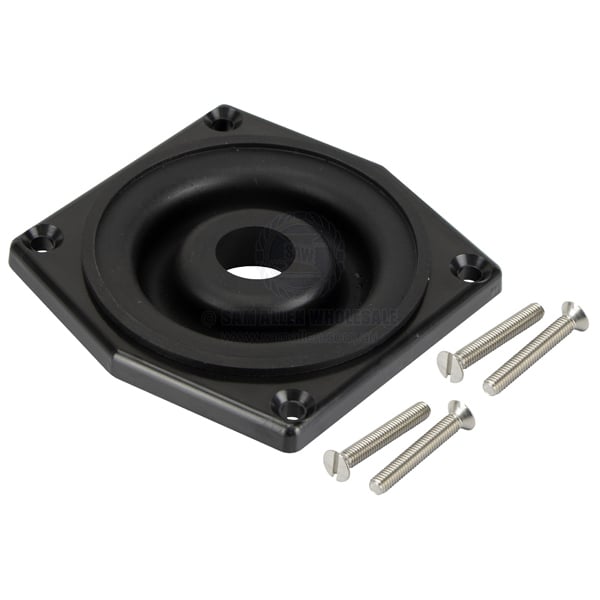

• The Patay Skipper SD60 is lightweight and designed for underdeck mounting. • The body and ports can be positioned in multiple orientations for maximum flexibility of installation. • Supplied with deck plate and seal. • Reliable and durable, this pump will withstand regular use and will give years of trouble free operation. • Pump is made from polypropylene with stainless steel fastenings and polyester coated castings. • Removable stainless steel handle. • Nitrile rubber diaphragms are fitted as standard. • Supplied with two sets of alternative inlet and outlet ports to suit either 1 inch or 1-1/2 inch I.D. hose. • Replacement underdeck mounting flange and seal available.
