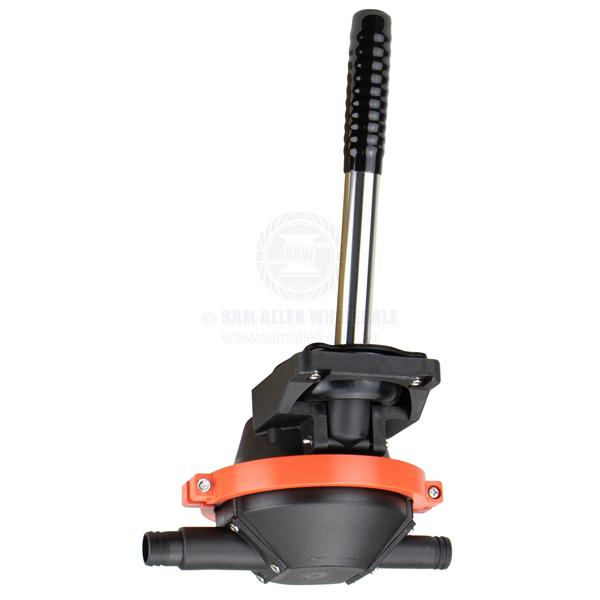

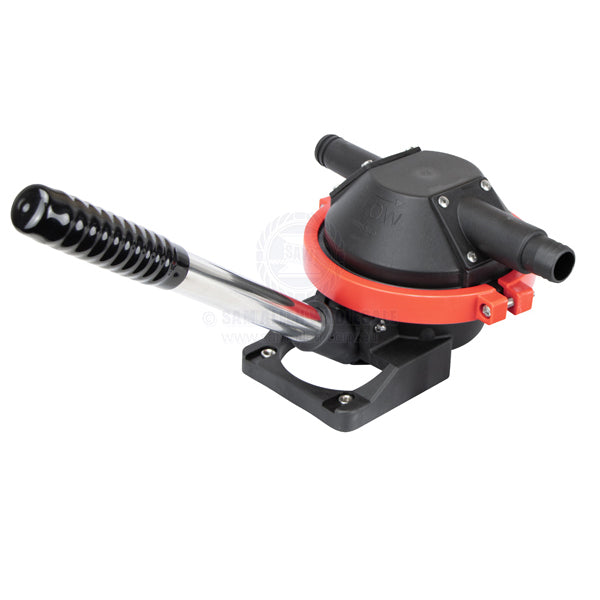

Pump bilge manual surface or thru deck mount with flange 35 l/min
Specifications
Part No.
CMW-23505
Length
210mm
Width
130mm
Height
230mm
Capacity
35 L/min
Max. Head
3m
Max. Lift
4m
Hose I.D.
1 inch
Note

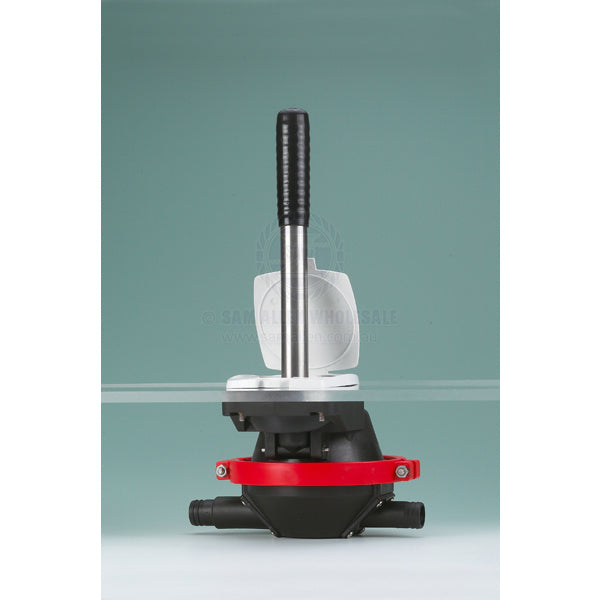

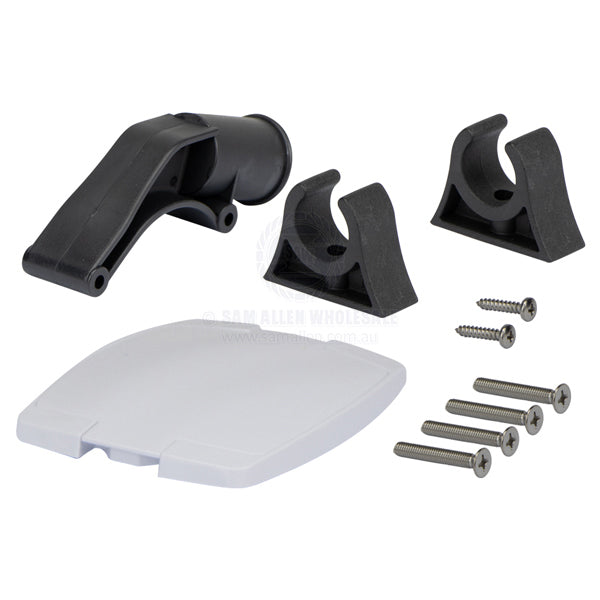

• Made from durable, non-corrosive plastic. • Barbed inlet and outlet connectors fit 1 inch I.D. hose. • Design facilitates a choice of surface or thru-deck mounting with alternative handle sockets included. • Removable stainless steel handle. • Thru-deck mounting: suitable for deck thicknesses ranging from 5mm to 19mm. • Clamping ring design facilitates infinite handle position to flow direction orientation options. • Kit includes through deck mounting plate with hinged lid and seal. • Includes two plastic clips for handle storage.
