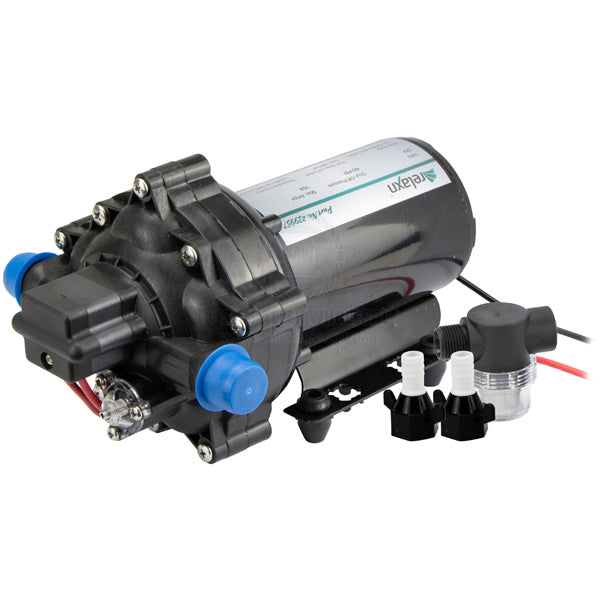

Pump water pressure Relaxn 12v 18.9 l/min 60psi 5 chamber with bypass
Specifications
Part No.
CMW-239957
Length
228mm
Width
145mm
Height
130mm
Volts
12V
Max. Amps
15A
Flow Rate
5.0GPM (18.9LPM)
Shut-Off Pressure
60 PSI
Port Size In/Outlet
1/2 inch NPTM
Unit Qty
1
Note

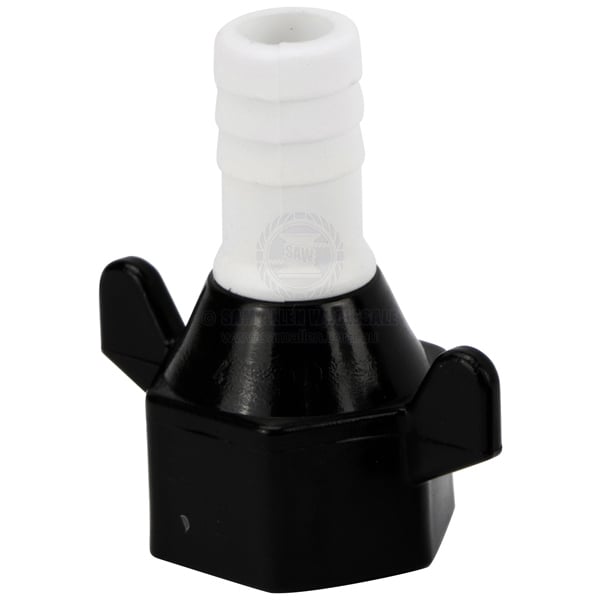

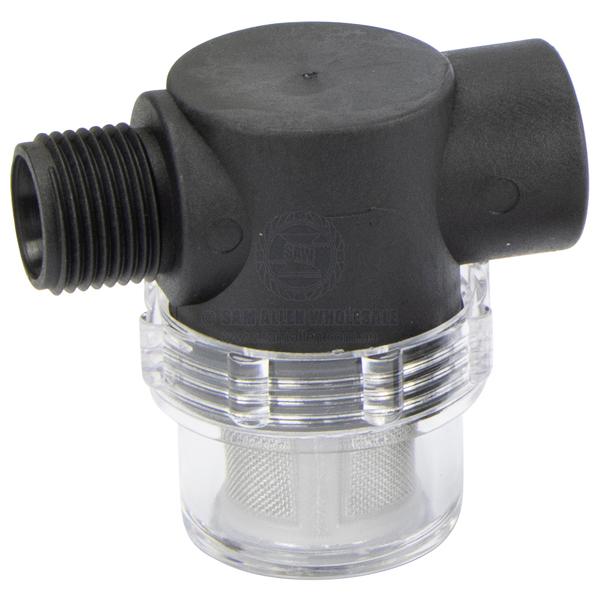

• Ideal for high flow applications, capable of supplying up to four fixtures. • Suitable for fresh and salt water supply applications. • Internal by-pass reduces cycling. • 5 chamber head design. • Self-priming and can run dry without damage. • Quiet operation. • Intermittent-duty. • Includes two 1/2 inch I.D. hose tail fittings and strainer. Note: Pump must be installed in a dry, dust free location. Do not use Teflon thread tape or sealing compound on pump threads.
