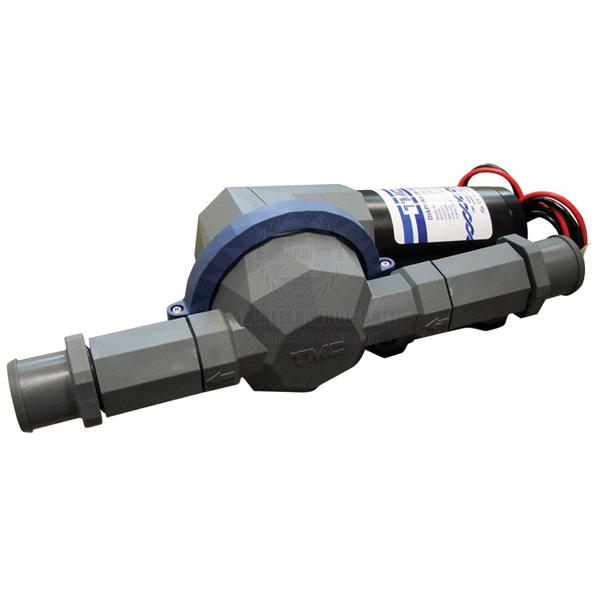

Pump diaphragm TMC 12v suit black waste with 1-1/2 inlet/outlet ports
Specifications
Part No.
CMW-45108
Length
369mm
Width
168mm
Height
144mm
Volts
12V
Amps
7A
Flow Rate
20LPM
Max. Head
17m
Ports Dia.
1-1/2 inch
Note

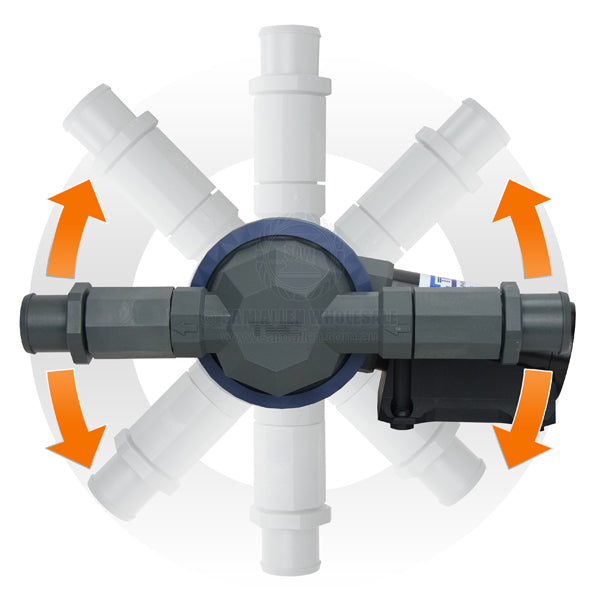

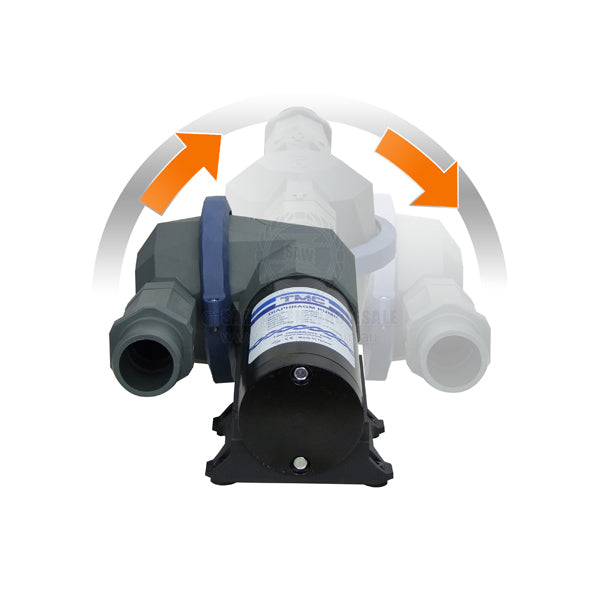

• Single diaphragm pump for unmacerated black waste mixed with water. • Self-priming pump can be run dry. • Non-choke valve, no filter required. • Can pump a mixture of air and water. • Aligned inlet and outlet valves to allow free flow of debris. • Adjustable clamping ring allows the head assembly to be rotated 360° to accommodate plumbing position. • CE Certified, ISO-9001 and ISO-14001. • Port Size: Inlet: 1-1/2 inch Outlet 1-1/2 inch.
