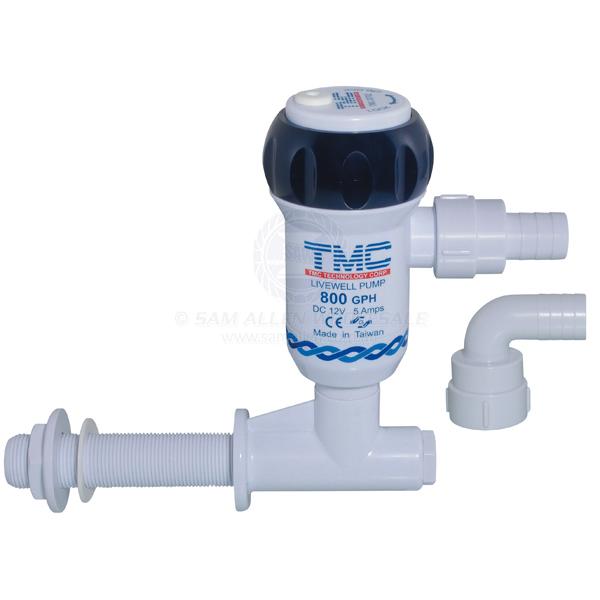

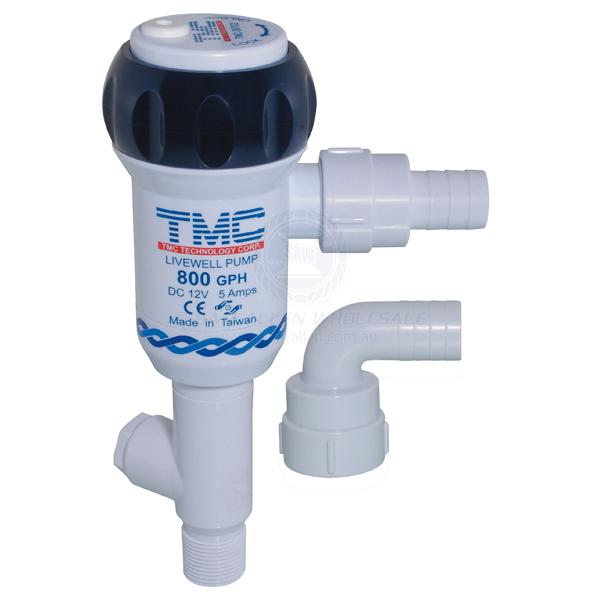

Pump livewell TMC 800pgh 12v dual port straight seacock mount

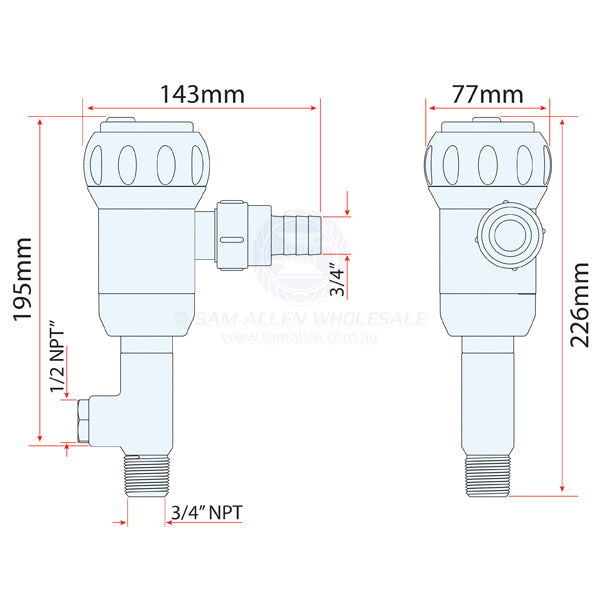

Specifications
Part No.
CMW-23023
Length
143mm
Width
77mm
Height
226mm
Mounting
Seacock
Volts
12V
Amps
5A
Fuse
7A
Flow Rate
800 GPH
Max. Head
3.5m
Inlet Port
3/4 inch NPTM
Note

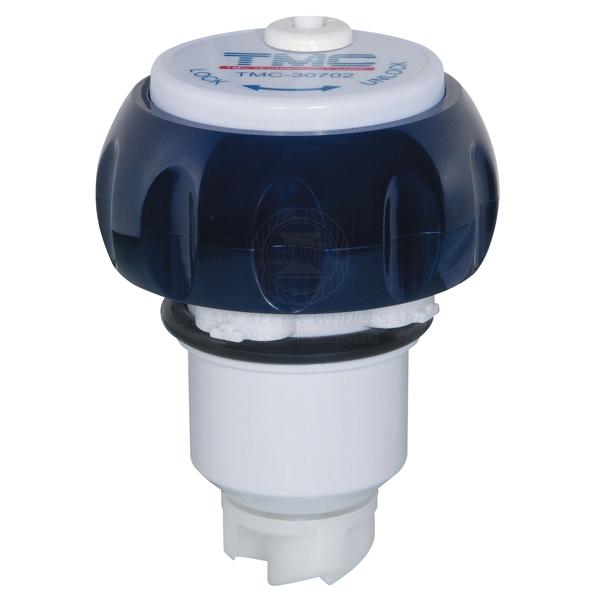

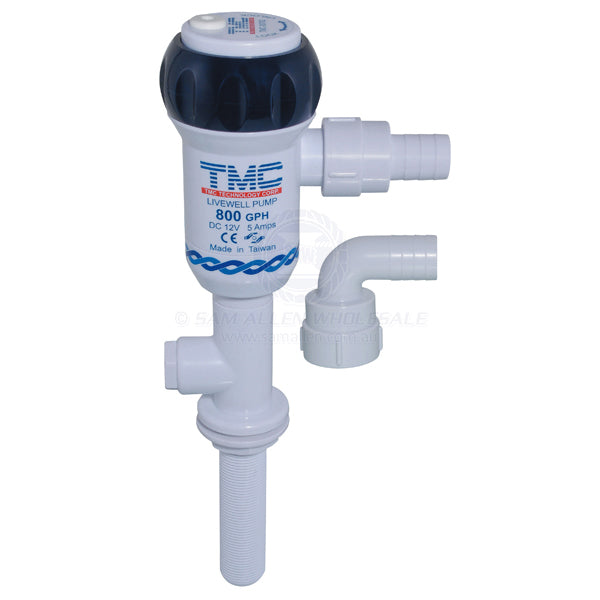

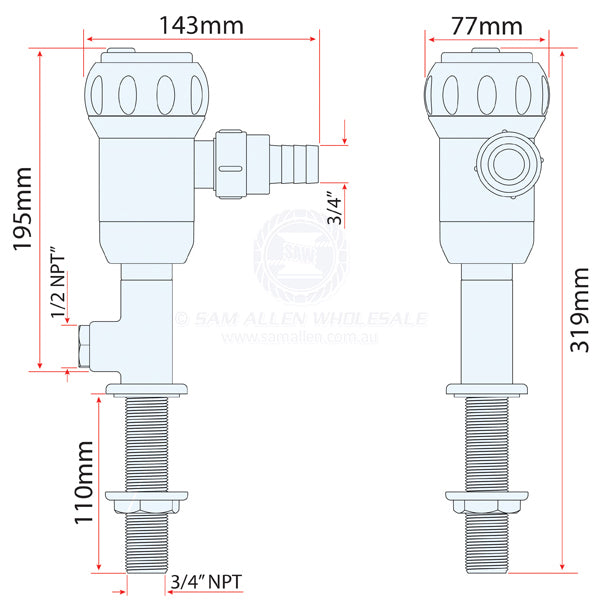

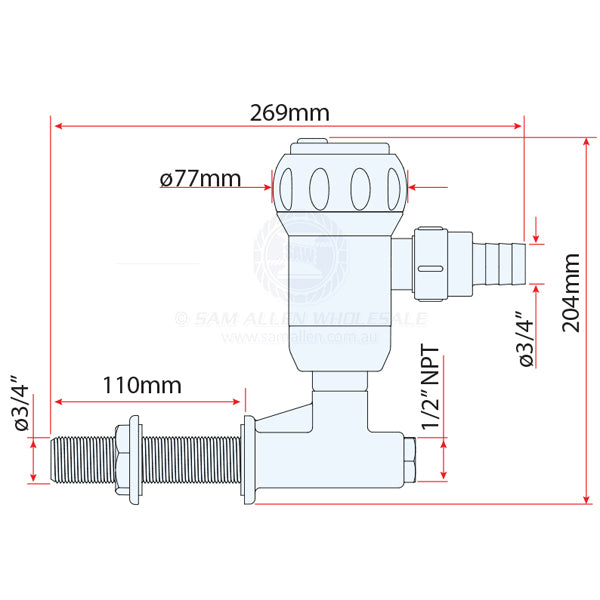

• The TMC Livewell Pump design provides the convenience of using one intake for both Livewell and a washdown pump connection. A breather hole allows the pump to clear trapped air while the boat is travelling through rough water or anchored. • Available in three mounting configurations - threaded into a seacock, vertical through hull or horizontally through transom. • Threaded inlet tube can be cut to desired length. • 360° Rotatable Discharge Port suit 3/4 inch - 7/8 inch I.D. hose. • Supplied with both straight and 90° discharge port tails. • Submersible. • Replaceable motor cartridge. • Airlock prevention. • Additional 1/2 inch NPTF port provides connection to a washdown pump - supplied with blanking plug. • Can be used with intake stainers 23570, 23572 or 45070 (refer to page 463). • 23023 & 23024 can be used with pick-ups 23040, 23040B, 23042, 23039 (refer to page 460). • CE Certified - Meets ISO-9001 and ISO-14001 manufacturing standards. • RCM Certified to Australian Standards.
