PUSH TIMER TAP & FLUSH LINK RETROFIT KIT - 15MM DMFIT QUICK CONNECT

Features

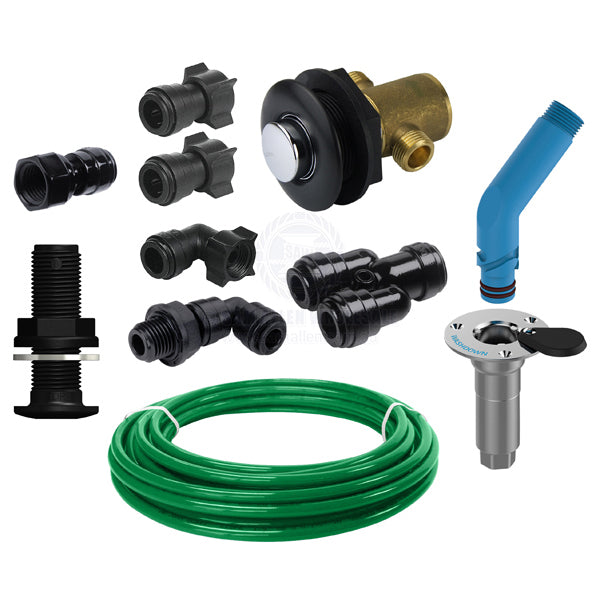

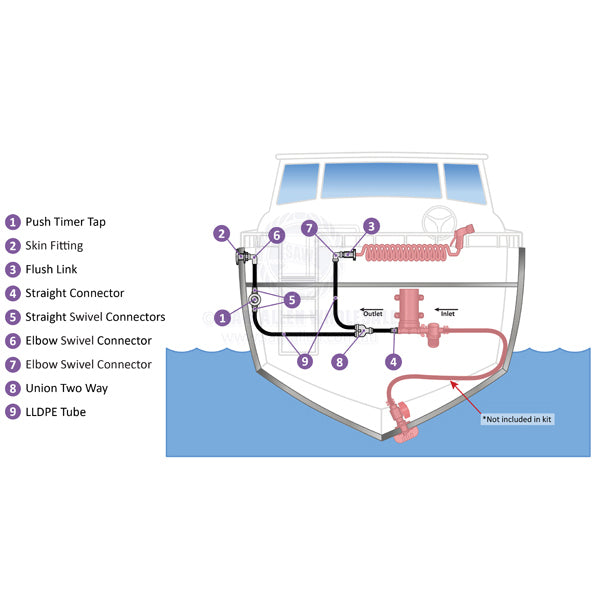

• Kit designed to update an existing Deck Wash System with a GHT threaded coiled hose attached directly to the pump. It includes a timer tap and flush link connection for the coiled hose. Suitable for 15.1 and 18.9 LPM deck wash pumps and uses 15mm DMfit quick connect plumbing fittings. Kit 239290A Includes:
• 1 x 510470 Tap Push Button Timer 8 Sec with Nylon Thru Hull Mount Black (1).
• 1 x 450049 Skin Fitting Trudesign Black Full Thread 1/2 inch BSPM (2).
• 1 x 23882 Flush Link 130° - 1/2 inch NPTF x 3/4 inch GHTM - Stainless Steel (3).
• 1 x 448216 DMfit Connector Straight 1/2 inch BSPPF - 15mm Tube (4).
• 2 x 448222 DMfit Connector Straight Swivel 1/2 inch BSPPF - 15mm Tube (5).
• 1 x 448232 DMfit Connector Elbow Swivel 1/2 inch BSPPF - 15mm Tube (6).
• 1 x 448210 DMfit Connector Elbow Swivel 1/2 inch BSPPM - 15mm Tube (7).
• 1 x 448250 DMfit Union Two Way Divider - 15mm Tube x 15mm Tube (8).
• 1 x 448308-10 DMfit LLDPE Tube 15mm x 10m Roll - Green (9).
