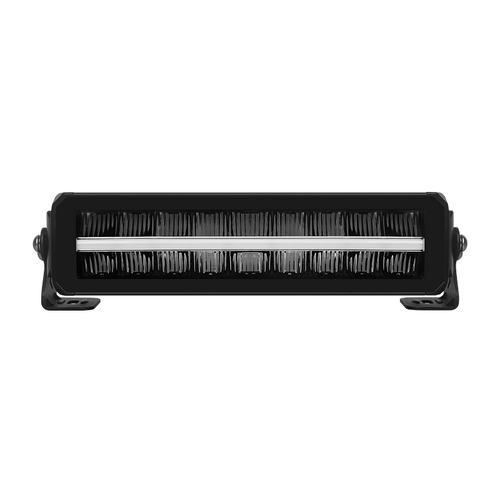

Rayzer Dual Row Series LED Light Bar 12"
Rayzer Dual Row Series LED Light Bar 12"
Couldn't load pickup availability
Description
Rayzer™ Pro Series double-row LED light bars use the latest free-form optics to provide Superior lighting performance with a visually appealing style. The Rayzer™ Pro Series’ ultra-bright light output using Broadbeam technology, achieves a long-reaching and wide consistent beam ideal for any situation where maximum illumination is required. The Rayzer™ series features an integrated position / DRL light and amber warning function for commercial applications. A comprehensive stainless steel mounting kit is also included. Constructed from high-grade anodized aluminum, sealed to IP67, and fitted with a virtually indestructible polycarbonate lens Rayzer™ Series LED bars are truly built for the long haul.
Features
- Multifunctional
- Ultra Powerful combination beam
- Free-form reflector technology for consistent light
- Heavy duty commercial quality
- ECE Approved
Specifications
| Voltage: | 10-30V Varivolt® | |
| Power: | 52W 12” 102W 22” 152W 32” 180W 42” | |
| Lumen: | 5300lm 12” 10500lm 22” 13680lm 32” 16200lm 42” | |
| Lens: | PC | |
| Housing: | Aluminium | |
| Mounting: | Bracket Mount | |
| Dimensions: | 12” | 332x88.47x69 |
| 22” | 584x88.47x69 | |
| 32” | 836x88.47x69 | |
| 42” | 1088x88.47x69 | |
| Environmental: | IP67 |
Parts List
| CMW-LLB2212 | Rayzer 12” Double Row Light Bar, With Park/Amber and Fog 9-33V |
| CMW-LLB2222 | Rayzer 22” Double Row Light Bar, With Park/Amber and Fog 9-33V |
| CMW-LLB2232 | Rayzer 32” Double Row Light Bar, With Park/Amber and Fog 9-33V |
| CMW-LLB2242 | Rayzer 42” Double Row Light Bar, With Park/Amber and Fog 9-33V |
