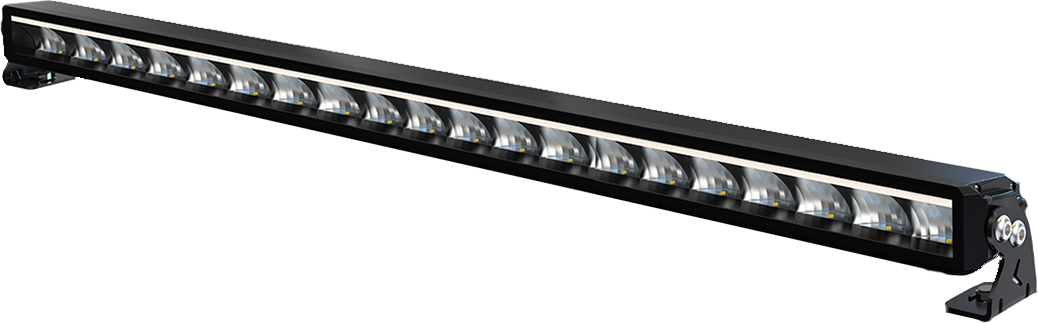

Rayzer Single Row Series LED Light Bar 42"
Rayzer Single Row Series LED Light Bar 42"
Regular price
$576.50 AUD
Regular price
Sale price
$576.50 AUD
Quantity
Couldn't load pickup availability
Description
Rayzer™ Series single-row LED light bars use the latest free-form optics to provide outstanding lighting performance with a visually appealing style. Superior light output using Broadbeam technology achieves a long-reaching and wide consistent beam ideal for any driving situation. The Rayzer™ series features an integrated position / DRL light for enhanced safety and includes a comprehensive stainless steel mounting kit. Constructed from high-grade anodized aluminum, sealed to IP67, and fitted with a virtually indestructible polycarbonate lens Rayzer™ Series LED bars are truly built for the long haul.
Features
- Low Profile
- Multifunctional
- Powerful combination beam
- Free-form reflector technology for consistent light
- Heavy-duty commercial quality
- ECE Approved
Specifications
| Voltage: | 10-30V Varivolt® | |
| Power: | 45W 12” 75W 22” 120W 32” 150W 42” | |
| Lumen | 4500lm 12” 6500lm 22” 10000lm 32” 12500lm 42” | |
| Lens: | PC | |
| Housing: | Aluminium | |
| Mounting: | Bracket Mount | |
| Environmental: | IP67 | |
| Dimensions: | 12” | 345 x 75 x 65 |
| 22” | 545 x 75 x 65 | |
| 32” | 845 x 75 x 65 | |
| 42” | 1045 x 75 x 65 |
Parts List
| CMW-LLB1112 | Rayzer 12” Single Row Light Bar, With Park 9-33V |
| CMW-LLB1122 | Rayzer 22” Single Row Light Bar, With Park 9-33V |
| CMW-LLB1132 | Rayzer 32” Single Row Light Bar, With Park 9-33V |
| CMW-LLB1142 | Rayzer 42” Single Row Light Bar, With Park 9-33V |
