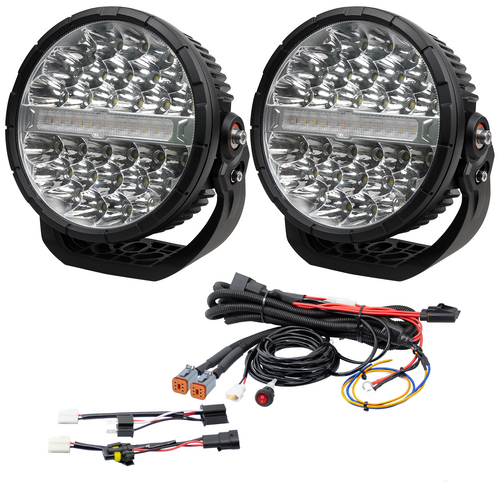

Razyer 9" Series LED Driving Light Pack with Wiring Kit
Razyer 9" Series LED Driving Light Pack with Wiring Kit
Couldn't load pickup availability
Description
Built to withstand even the toughest conditions, the Rayzer™ LED driving lights are encased in a heavy-duty aluminium body with a high-resilience polycarbonate lens and connected by a 6-way DT connector making them ideal for heavy transport applications. These lights are also fully integrated with ECE-certified park, DRL, and indicator lights, ensuring safety and compliance with industry standards. The optional innovative 6-way Dual DT-style plug-and-play driving light wiring kit, features 12-24V operation, smart high beam signal detection and allows easy installation of all functions. Enlighten your night-time driving experience with Rayzer™ LED driving lights, designed to truly slice the night.
Features
- Precision LED beam technology for maximum illumination
- Available in 7” or 9” for immensive performance
- Heavy duty aluminium body with high resilience polycarbonate lens, made for heavy transport applications
- Integrated DRL, Indicator and Park Light
- Innovative 6 Way DT style wiring kit for easy installation of all functions.
- Certified ECE Compliance
Specifications
| Applications | • Trucks • Buses and Coaches • Custom builds • Mining • 4×4 • Cars |
| Functions | Driving light with integrated DRL |
| Voltage | 9-33V Varivolt® |
| Wattage | 7” 120W 9” 150W |
| Lumen | 7” 12000lm 9” 15000lm |
| Lux | 7” 1lx @750M 9” 1lx @950M |
| Mounting | Heavy duty bracket 3 bolt |
| Environmental | Fully sealed and waterproof IP69K |
Parts List
| CMW-LDL9700 | 7″ HD LED Driving Lights W/ PARK & DRL |
| CMW-LDL9900 | 9″ Series HD LED Driving Lights W/ PARK & DRL |
