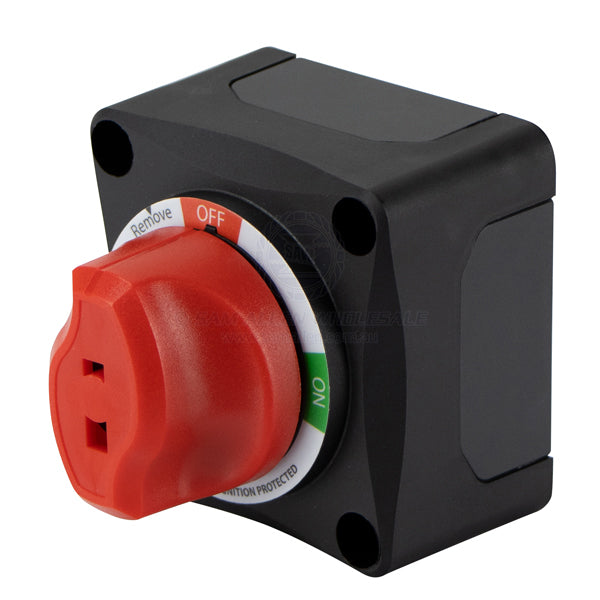

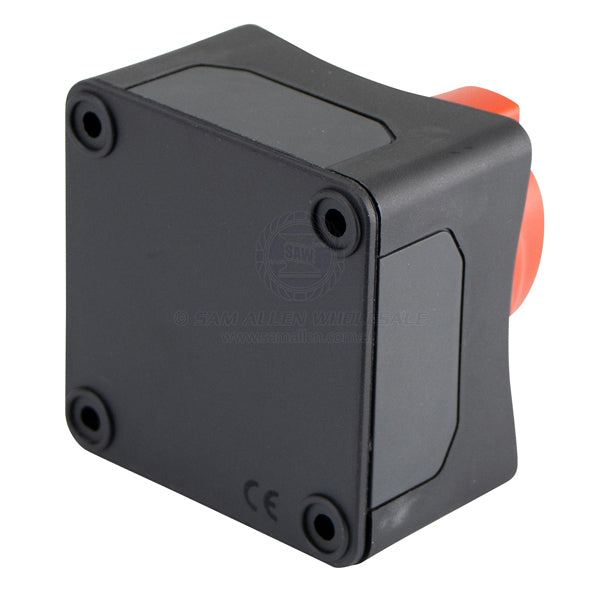

Switch battery isolator heavy duty compact 2 position surface mount
Specifications
Part No.
CMW-530787
Functions
2
Mount Style
Surface
Max. Volts
48V
Maximum Continuous Load
275Amps @ 12V

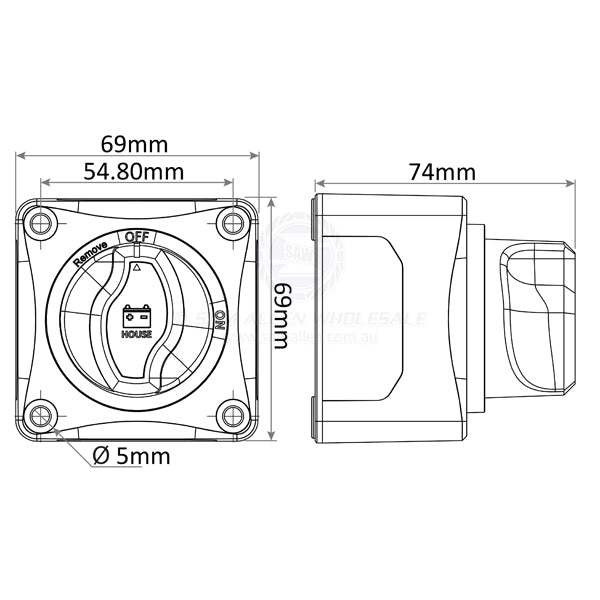

Dimensions (L x W x D)
69mm x 69mm x 74mm
Unit Qty
1
Note

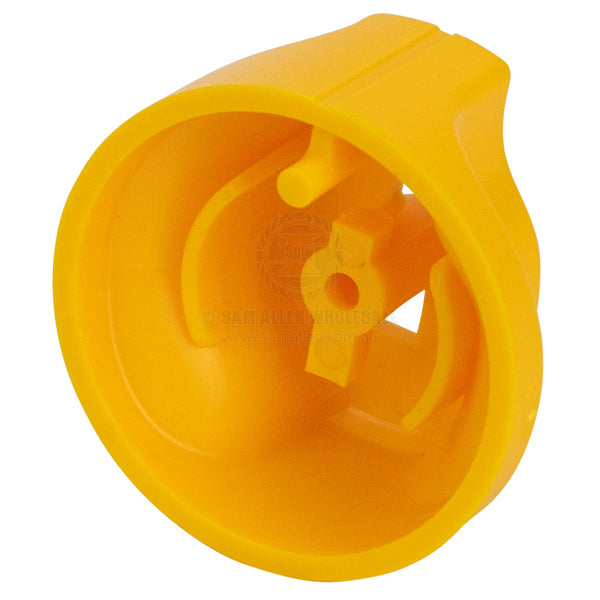

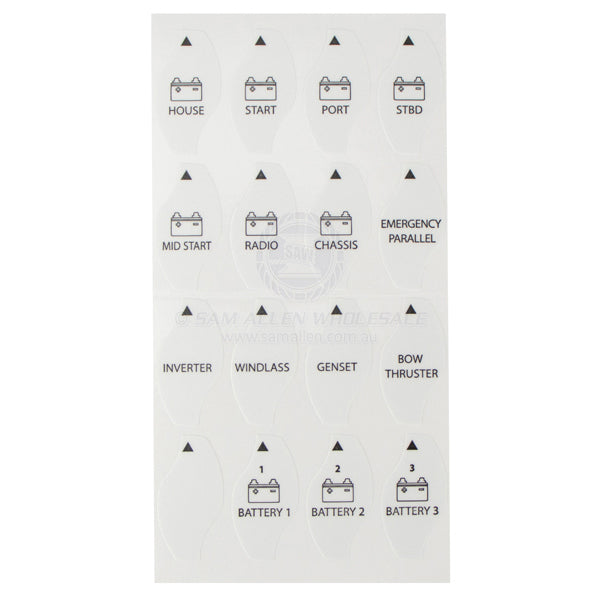

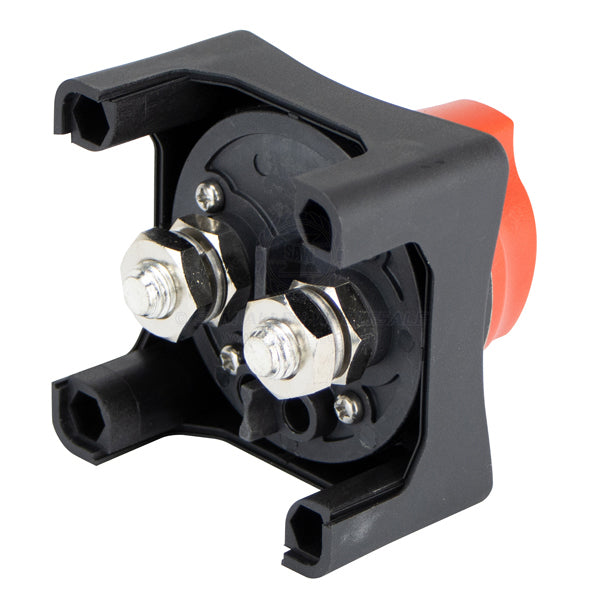

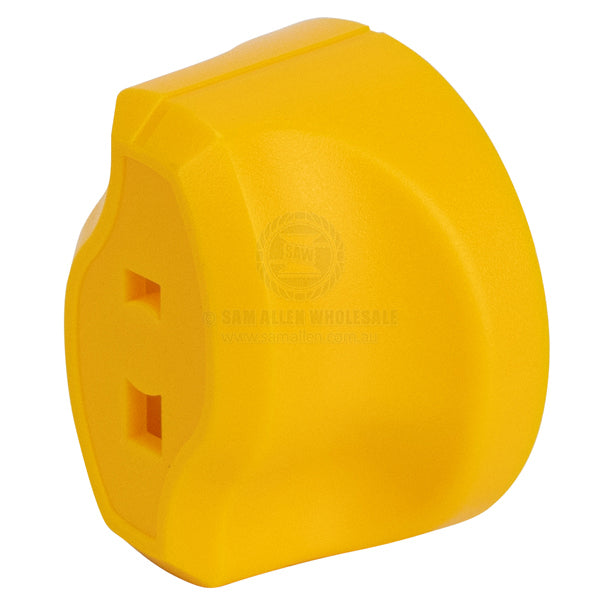

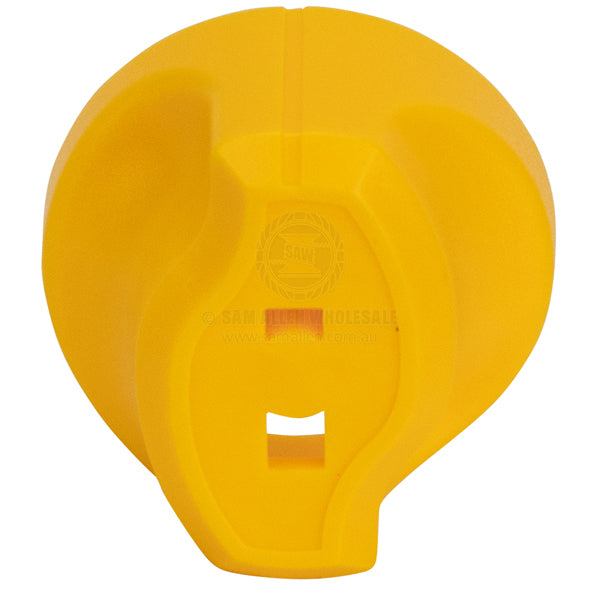

• 2 position switch - On / Off. • Features brass terminals and glass fibre reinforced nylon enclosure. • Ignition protection. • 14mm M10 studs. • Removable actuator (turn actuator to remove position). • Removable side panels for unobstructed wiring. • Load rating @12V: 275A maximum continuous. 455A intermittent (5 min). 1250A for 10 seconds. • Mounting hardware included. • 16 piece label set included. • CE certified. *** Do not the turn switch off while the engine is running.
