RELAXN BATTERY SWITCH - 2 POSITION - ISOLATION

Name: RELAXN BATTERY SWITCH - 2 POSITION - ISOLATION
Brand: Coffs Metal Works
SKU: CMW-23128
Price: 56.10 AUD
Availability: InStock

$56.10 AUD

Sale Sold out

Description

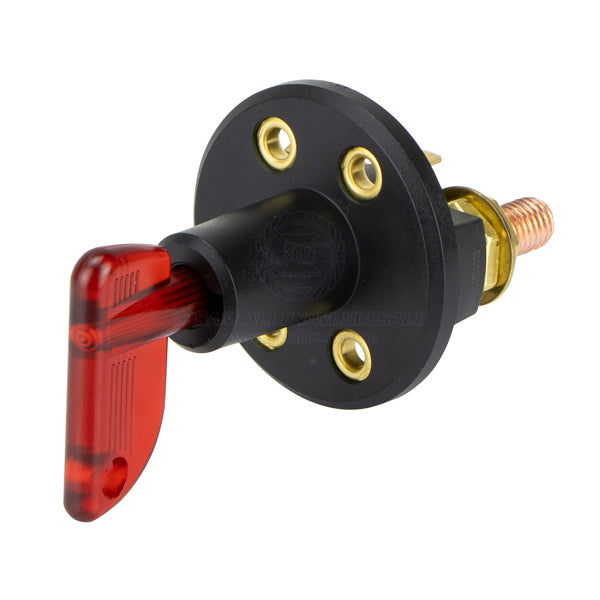

Switch battery isolator 2 pole with red LED key 12-24v

Features

2 position switch - On / Off.
Ignition protection.

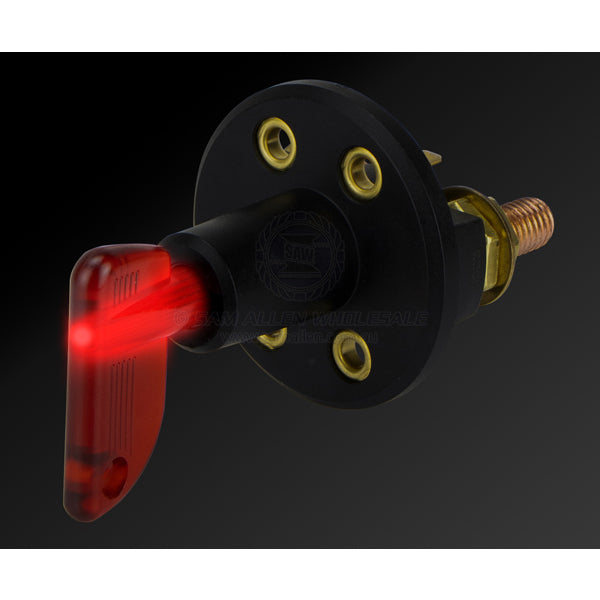

Red LED indication.
39mm protrusion without key.
20mm M10 stud size.

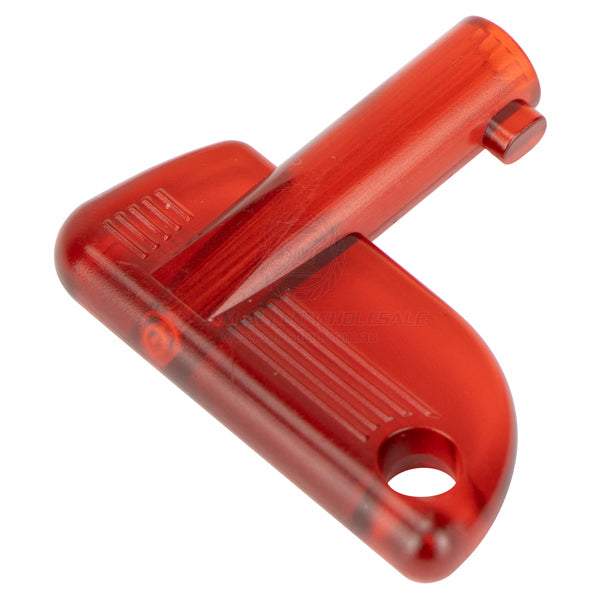

Removable key (turn key to off to remove).
Rated protection: IP66.
Load rating @12V: 300A maximum continuous. 1000A for 5 seconds.

Specifications

Part No.	CMW-23128
Functions	2
Mount Style	Semi Recessed
Volts	12-24V
Maximum Continuous Load	300 Amp @ 12V
Intrusion	36mm

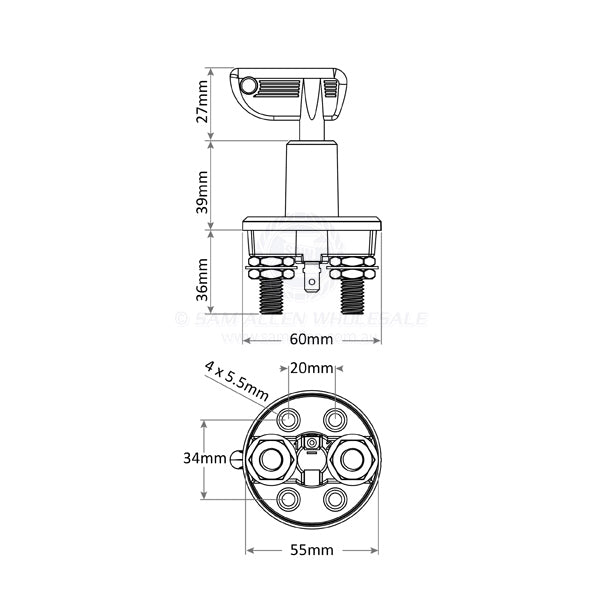

Dimensions with Key	Dia. 60mm x D 102mm
Cut Out (L x W)	55mm x 23mm
Note	Do not the turn switch off while the engine is running.
