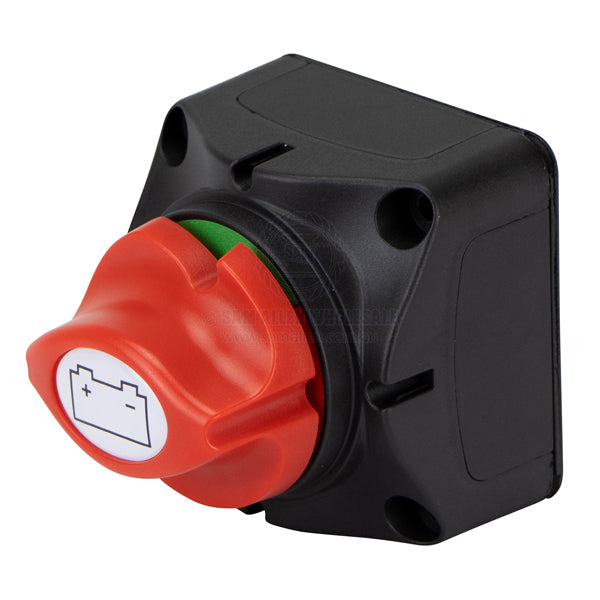

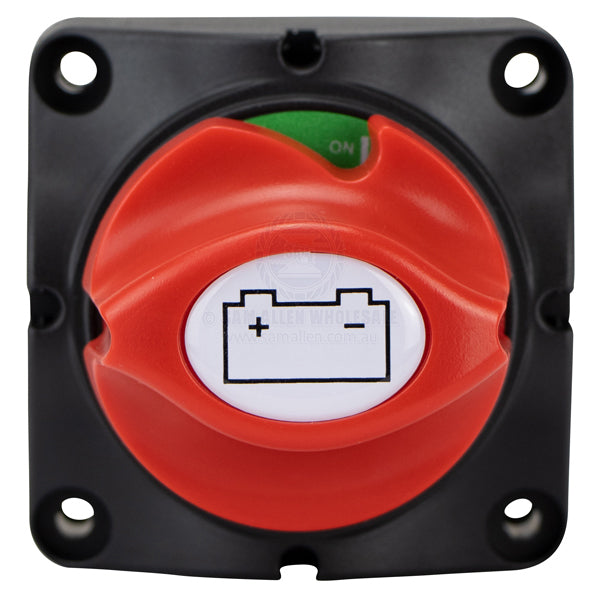

Switch battery isolator Relaxn compact 2 position surface mount
Specifications
Part No.
CMW-530781
Functions
2
Mount Style
Surface
Max. Volts
12-48V
Maximum Continuous Load
275 Amp @ 12V

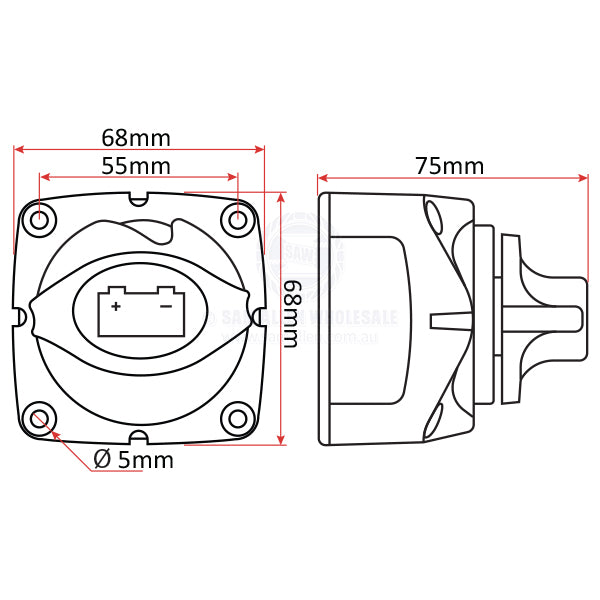

Dimensions (L x W x D)
68mm x 68mm x 75mm
Unit Qty
1
Note

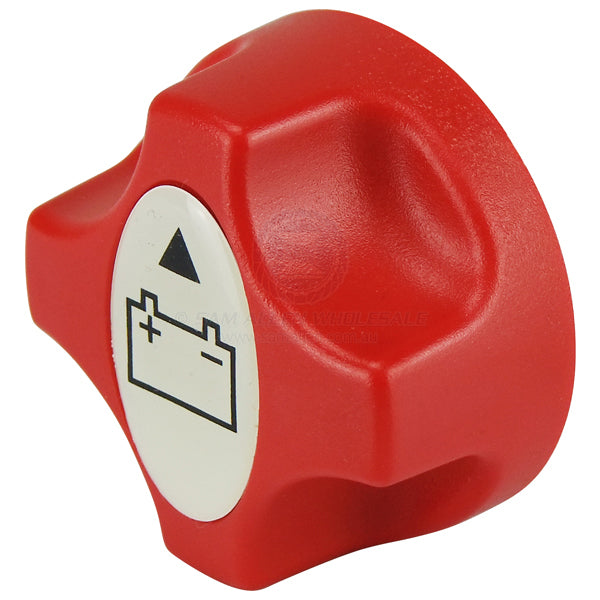

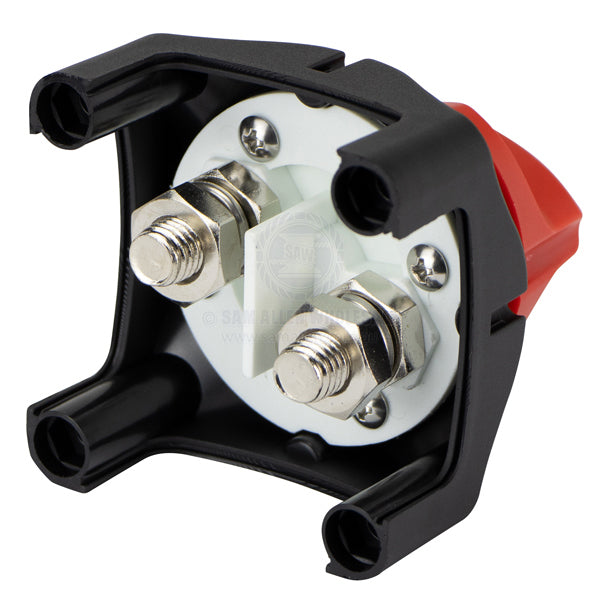

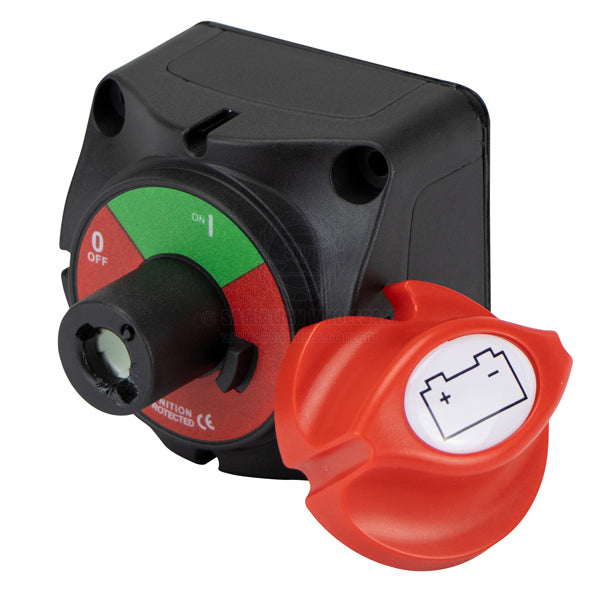

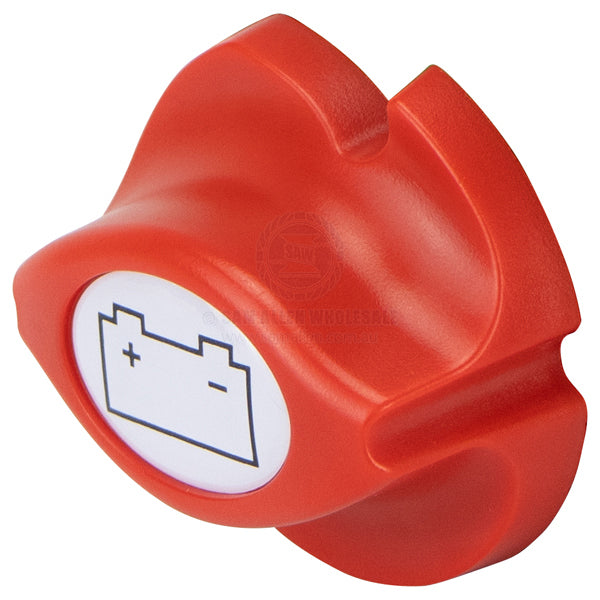

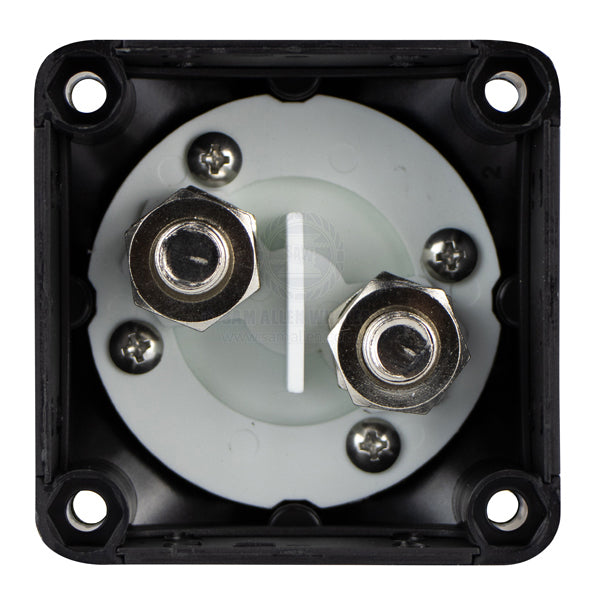

• 2 position - On / Off. • Features brass terminals and heavy-duty plastic construction. • Ideal for marine and automotive applications. • M10 stud size. • Removable knob (turn knob left from OFF position). • Removable side panels for unobstructed wiring. • Load rating @12V: 275A maximum continuous. 450A intermittent (5 min). 1250A for 10 seconds. • Mounting hardware included. • CE certified. * Do not the turn switch off while the engine is running.
