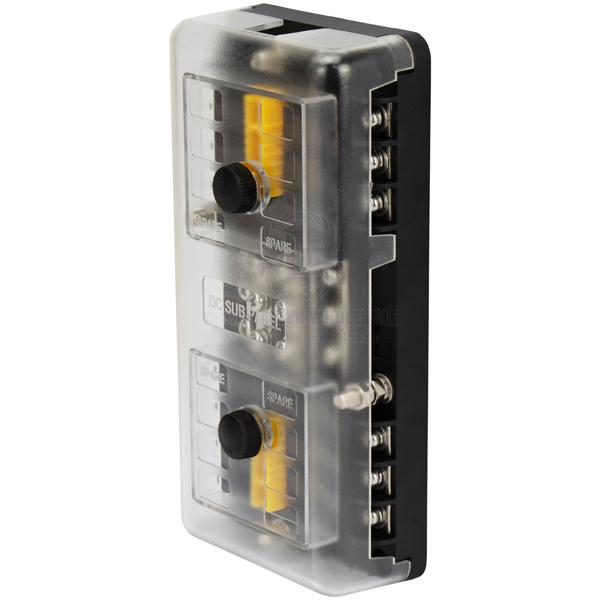

RELAXN BLADE FUSE BLOCK - DUAL 6 GANG PER BANK WITH NEGATIVE BUS BARS & SCREW TERMINALS
RELAXN BLADE FUSE BLOCK - DUAL 6 GANG PER BANK WITH NEGATIVE BUS BARS & SCREW TERMINALS
Regular price
$72.95 AUD
Regular price
Sale price
$72.95 AUD
Quantity
Couldn't load pickup availability
Description
Fuse block Relaxn dual 6 gang per bank incl neg buss bar screw term
Features
- Dual-circuit design provides a clean and organised fuse centre for dual-battery systems with clear separation.
- Positive distribution bus with circuit protection, M5 common stud and M4 screw terminals.
- Negative bus bar with M5 common stud and M4 screw terminals.
- Nickel-plated copper buses and fuse clips.
- Accepts ring or fork type terminals.
- Accepts standard size blade fuses.
- Includes 2 fuse pullers and 4 spare fuse positions.
Specifications
| Part No. | CMW-302245 |
|---|---|
| Max Voltage | DC 32V |
| Max Current | 30A max. per circuit 100A Total |
| Dimensions (W x H x D) | 83mm x 169mm x 45mm |
| Mounting Hole Centres (W x H) | 68mm x 154mm |
| Labels | 80pc Label Set Included |
