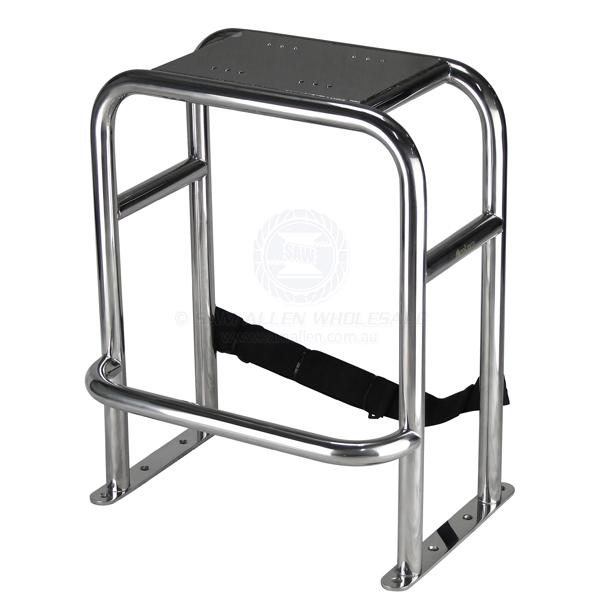

RELAXN PEDESTAL - NARROW SPACEFRAME

RELAXN PEDESTAL - NARROW SPACEFRAME

Regular price $709.95 AUD
Regular price Sale price $709.95 AUD
Sale Sold out
Quantity

Description

Seat space frame Relaxn narrow 304G SS with footrest & strap

Features

  • The seat frame is designed as a space saver which economically utilises space under the frame.
  • Heavy-duty highly polished 32mm 304G stainless steel frame.
  • The seat plate has 20mm increment mounting holes for optimal positioning when mounting a seat. The seat can be mounted direct to plate or used with a seat slide or swivel*.

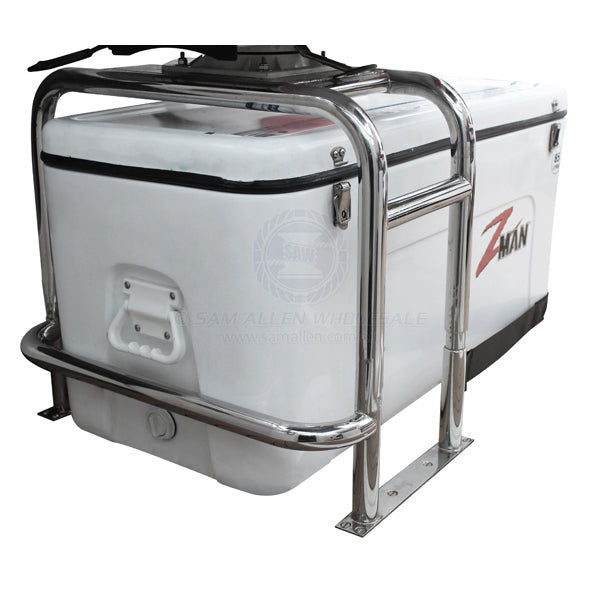

  • Footrest bar also doubles as a cooler box holder.
  • 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment.

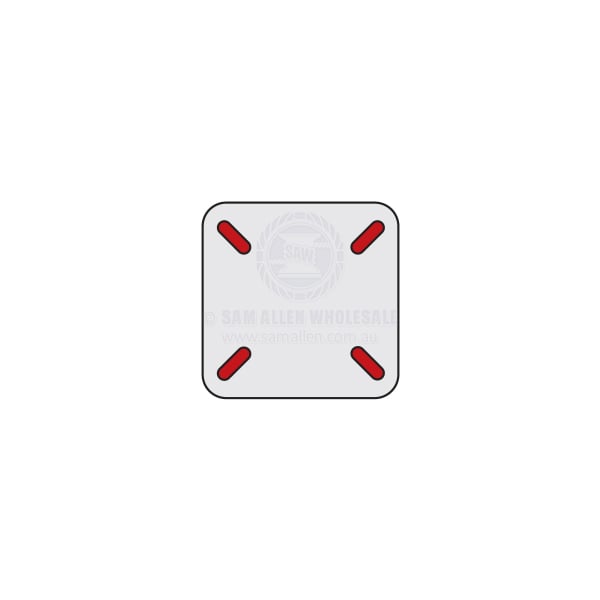

  • Mounting holes - 8 x 8mm countersunk.
  • Patented - Australian Registered Design.

Specifications

Part No. CMW-293817

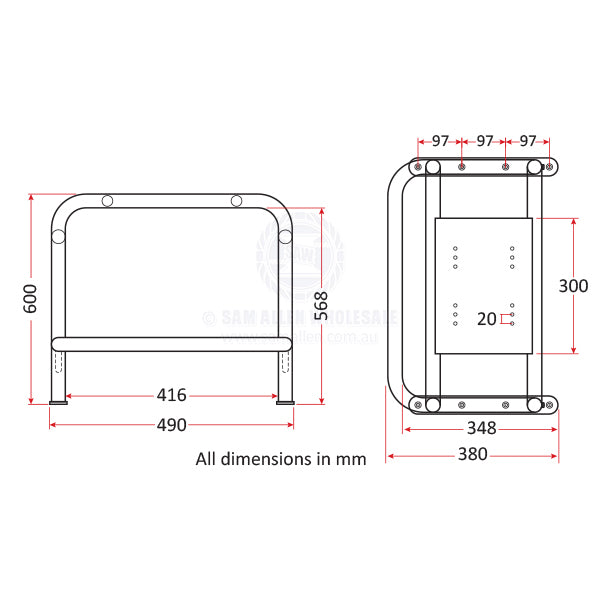

Inner Dimensions (W x H) 416mm x 568mm
Overall Dimensions (W x D x H) 490mm x 380mm x 600mm
Note *NOTE: The 293809 slide/swivel or 293804 slide mount are recommended for slide/swivel adjustments on the Relaxn SpaceFrame. All measurements are approximate and may vary slightly.
