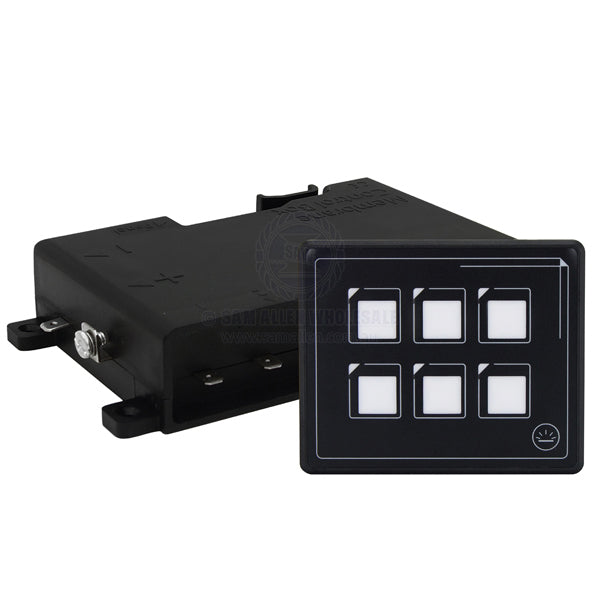

Switch panel Relaxn membrane touch LED indicators 6 gang w/bluetooth

Part No.	CMW-530691
Switch Positions	6P
Volts	12-30V
Max Amps	35

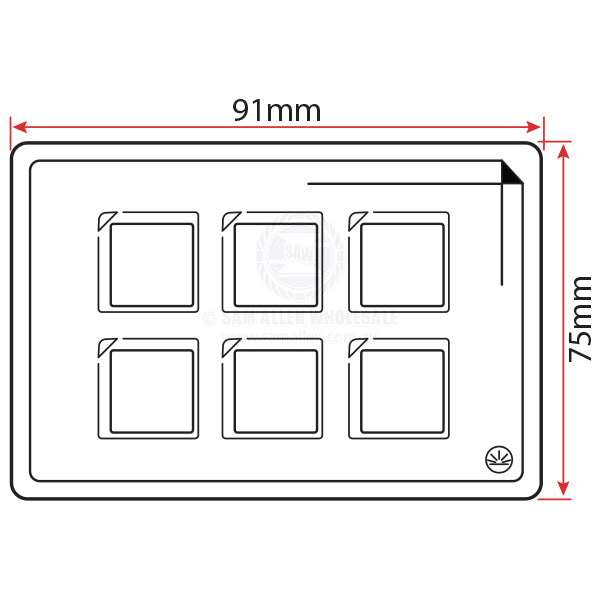

Panel (W x H)	91mm x 75mm
Cut Out Dia.	15mm

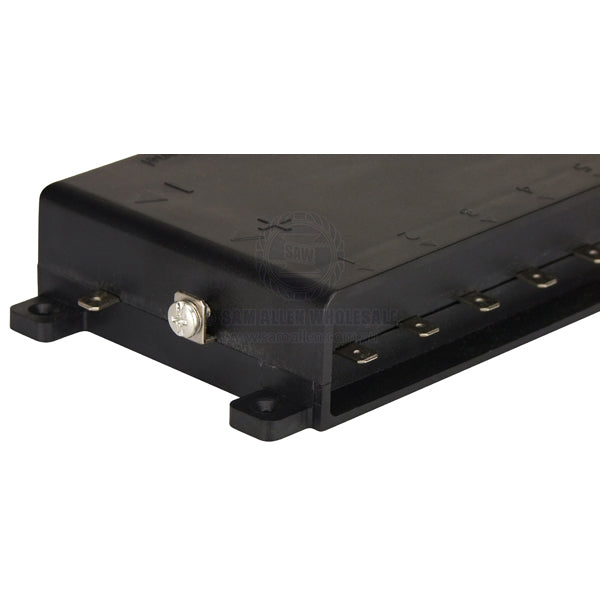

Control Box (L x W x H)	136mm x 90mm x 32mm
Note	• This membrane panel series just got better with mobile app control connectivity. • Each switch on the control panel can be programmed as either a momentary switch or a standard on/off switch. • Ultra-compact panel design. • Control box can be installed in any dry location. • LED indicators with 10A PPTC protection. • Backlighting for enhanced visibility. • Quick-connect terminals on the control box. • IP67 rated for water and dust resistance. • Includes 60pc assorted label set. • Mounting hardware and 1m micro-USB cable included. • The mobile app includes features such as customizable labels, momentary buttons, various button styles and backgrounds, system voltage monitoring, low voltage warnings, and more. Available on both the Google Play Store (Android) and Apple App Store (iOS). NOTE: Control box needs to be installed in a dry area.

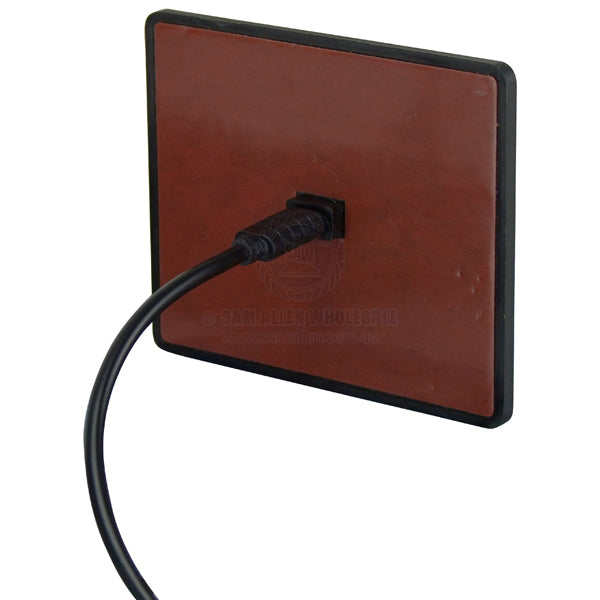

RELAXN SWITCH - MEMBRANE SWITCH PANEL - WITH BLUETOOTH
