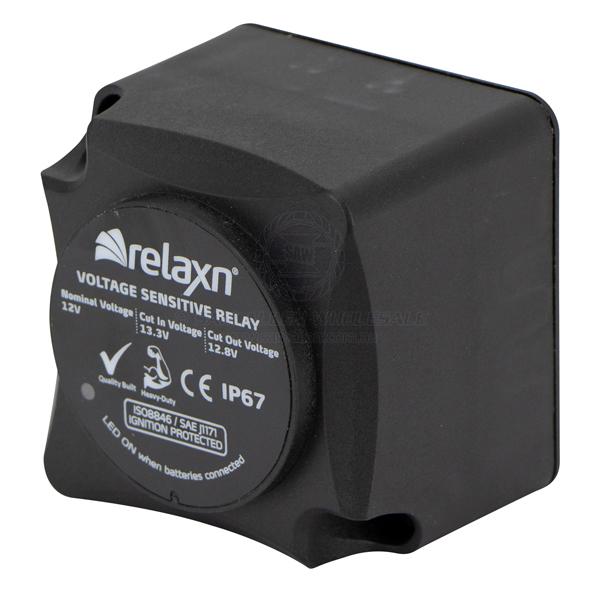

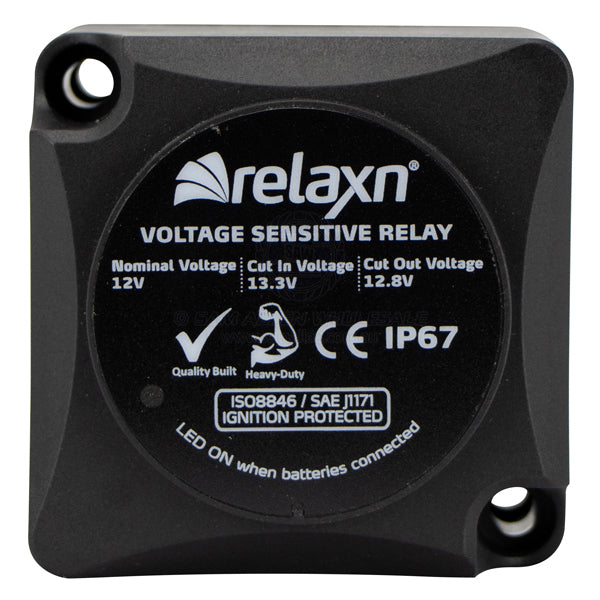

RELAXN VOLTAGE SENSITIVE RELAY - SURFACE MOUNT

Features

• Ideal for dual battery systems or to switch high current appliances.
• Suits ATV, boats, RV’s, caravans and trucks.
• VSR allows 2 batteries to be charged at the same time, once start battery reaches cut-in voltage.
• No voltage drops compared to battery isolator diodes (0.6V).
• Robust glass fibre reinforced nylon enclosure.
• M6 stud size.
• Built-in LED indication (ON when VSR engages).
• Rated protection: IP67.
• Surface or panel mount options provide flexibility when installing.
• Load rating @12V: 125A maximum continuous. 140A intermittent.
• Cut-in: 13.3V / Cut out: 12.8V.
• Power consumption: 0mA (storage). 10mA (standby). 330mA (engage).
• Ignition protection.
• Mounting hardware included.
• CE certified.
