Roadvision Slimline BR300ARW Combination Rear Strip Light. Stop, Tail, Reverse. 4wd Trailer Truck Caravan
Roadvision Slimline BR300ARW Combination Rear Strip Light. Stop, Tail, Reverse. 4wd Trailer Truck Caravan
Regular price
$110.00 AUD
Regular price
Sale price
$110.00 AUD
Quantity
Couldn't load pickup availability

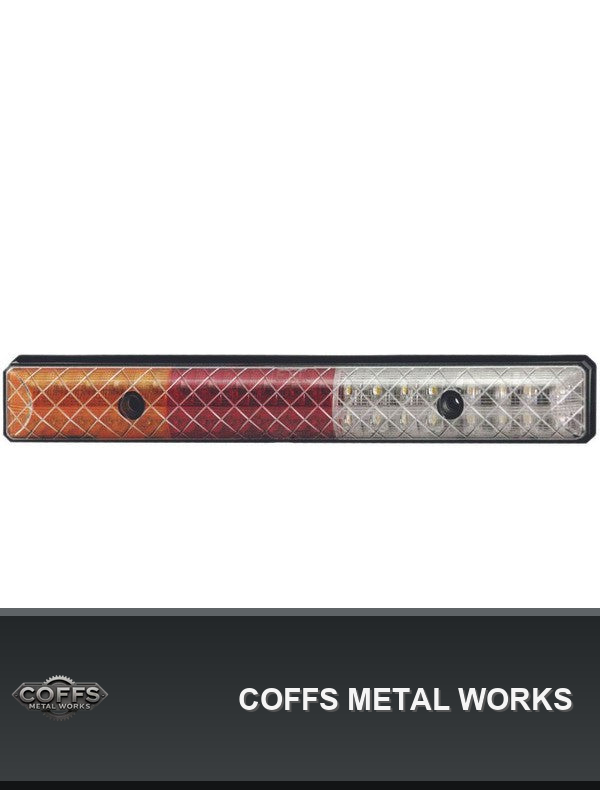

COMBINATION LAMPS BR300 SERIES
ROADVISION’s BR300 Series LED rear combination lamps are a versatile slimline solution! Featuring Stop/Tail, Indicator & Reverse functions all in a super slim line package, the BR300 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR300’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR300 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
price is per 1 light
- Compact slimline LED combination lamp
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Pre-wired with 300mm LEDLink Connector
- Simple surface mount design
- ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Description - Rect Strip Stop/Tail/Ind/Rev
Functions - Stop/Tail Indicator & Reverse
Voltage Input - 10-30V DC
Number of LED's - Indicator - 10 LED's, Stop/Tail - 12 LED's, Reverse 16 LED's
Current Draw Amps - Ind - 0.2A @ 13.8V, S/T - 0.2/0.05A @ 13.8V
Dimensions AxBxC - 301x45x30mm
Lens Construction - Polycarbonate
Housing Construction - Polycarbonate
Mounting Hole Centre - 160mm
Cable Length - 300mm Tinned Copper, LEDLink Connector
Wiring Colour Codes - Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow
ADR Approval - Ind - CRN 46119, Stop - CRN 46104, Tail - CRN 46105, Rev - CRN 46103
Specifications
| Multi-Volt 10 | 30V DC input & low current draw |
|---|---|
| Pre | wired with 300mm LEDLink Connector |
| Description | Rect Strip Stop/Tail/Ind/Rev |
| Functions | Stop/Tail Indicator & Reverse |
| Voltage Input - 10 | 30V DC |
| Current Draw Amps - Ind | 0.2A @ 13.8V, S/T - 0.2/0.05A @ 13.8V |
| Dimensions Axbxc | 301x45x30mm |
| Lens Construction | Polycarbonate |
| Housing Construction | Polycarbonate |
| Mounting Hole Centre | 160mm |
| Cable Length | 300mm Tinned Copper, LEDLink Connector |
| Wiring Colour Codes - Earth | White, Stop - Red, Rail - Brown, Indicator - Green or Yellow |
| Adr Approval - Ind | CRN 46119, Stop - CRN 46104, Tail - CRN 46105, Rev - CRN 46103 |
| Suitable For | applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety |
| Suitable For | & FORGET |
