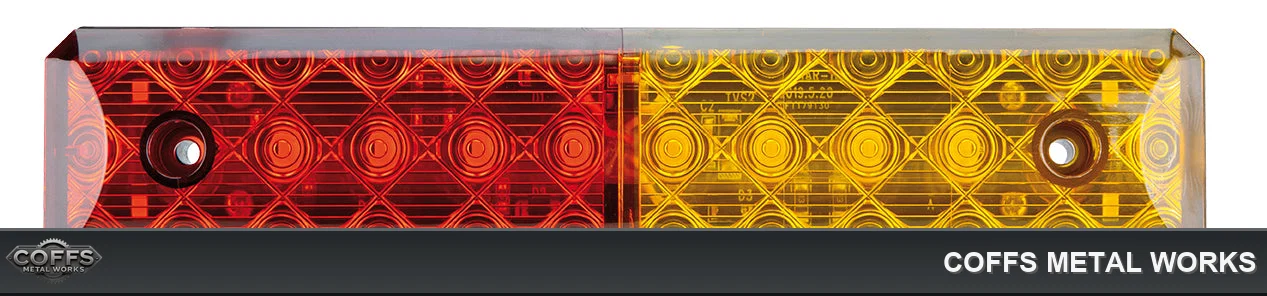

Roadvision Stop/Tail/Indicator LED Trailer Truck Rear Strip Light Lamp. 24 LED. BR201AR

BR201 SERIES

BR201AR

ROADVISION’s BR200 Series LED signal lamps are a versatile slimline solution! Available in Stop/Tail, Indicator & Reverse functions all in a super slim line package, the BR201 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR201’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR201 Series signal lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.

PRICE IS FOR 1 STOP/TAIL/INDICATOR STRIP LIGHT

RANGE FEATURES

Compact slimline LED signal lamps
Multi-volt 10-30V DC input & low current draw
Brighter than conventional incandescent systems
100,000 hour LED life span with solid state technology
Maintenance free
Sealed polycarbonate lens & housing
Water and dust proof
Pre-wired with 300mm of sheathed tinned copper cable
Simple surface mount design
ADR/ECE approved for all functions

BR201AR SPECIFICATIONS

Description - Rect Strip Stop/Tail/Ind

Functions - Stop/Tail & Indicator

Voltage Input - 10-30V DC

Number of LED's - Indicator - 12 LED's, Stop/Tail - 12 LED's

Current Draw Amps - Ind - 0.2A @ 13.8V, S/T - 0.2/0.05A @ 13.8V

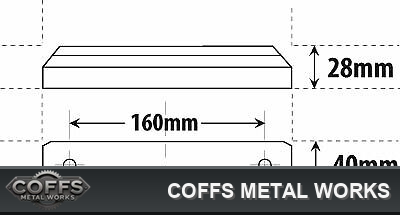

Dimensions AxBxC - 205x40x28mm

Lens Construction - Polycarbonate

Housing Construction - Polycarbonate

Mounting Hole /Cut Out - 160mm

Cable Length - 300mm Tinned Cable

ADR Approval - Stop - Ind - CRN 46095, Stop - CRN 46094, Tail - CRN 46093
Wiring Colour Codes -  Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow
