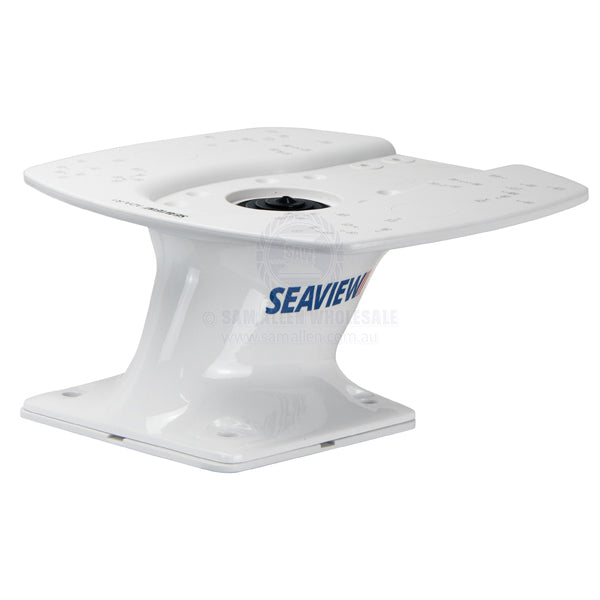

Seaview radar tower kit aft lean 150mm white incl base & top plate
Features
These Seaview Radar Towers combine a modular tower mount and a Modular top plate. Compact design results in the perfect solution for vessels which have a limited space to work with. Available in either white or black.
Aft learning, powder coated, cast aluminium modular mount with an oval hollow mast section allowing for easy cable management.
White Closed Dome/Open Array Radar Modular top plate is UV stable, glass filled ABS plastic encased 6.4mm aluminium plate.
Black Closed Dome/Open Array Rador Modular top plate is marine grade, high density polyethylene board.

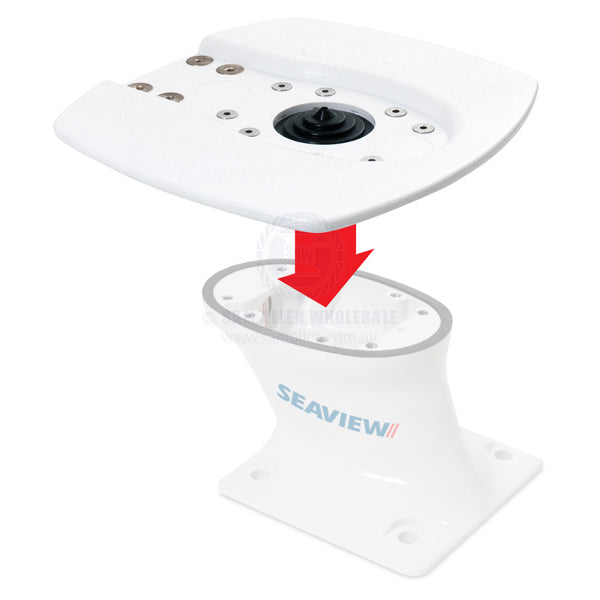

Modular design allows the user to only change the top plate when swapping to a different radar.
Light Bar compatible.

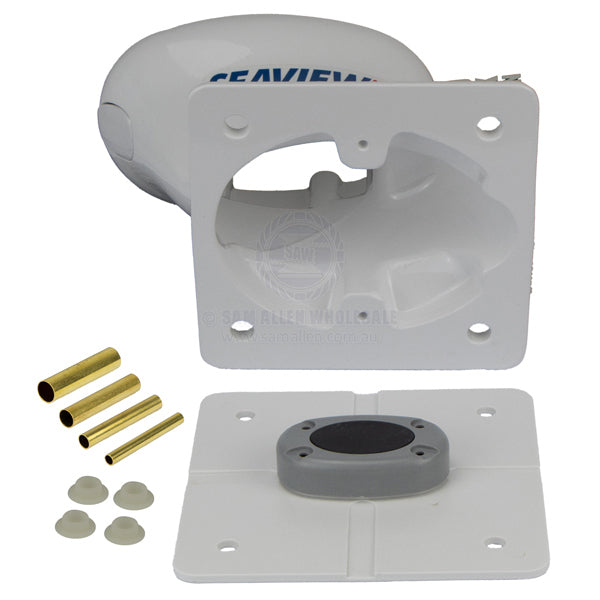

Includes a self-draining waterproof cable seal base plate.
10g Tube of Tef-Gel marine corrosion inhibitor included.
Specifications
Part No.
CMW-970960
Model
PMA57M1 + ADAR1
Colour
White
Overall Dimensions (W x H x D)
305mm x 148mm x 300mm
Modular Plate
ADAR1
Seaview Mount
PMA57M1
Mount Dimensions (W x H x D)
240mm x 124mm x 178mm
Note
*Installation NOTE: We recommend the use of a marine corrosion inhibitor such as Tef-Gel during installation to prevent galling and dissimilar metal corrosion. *
