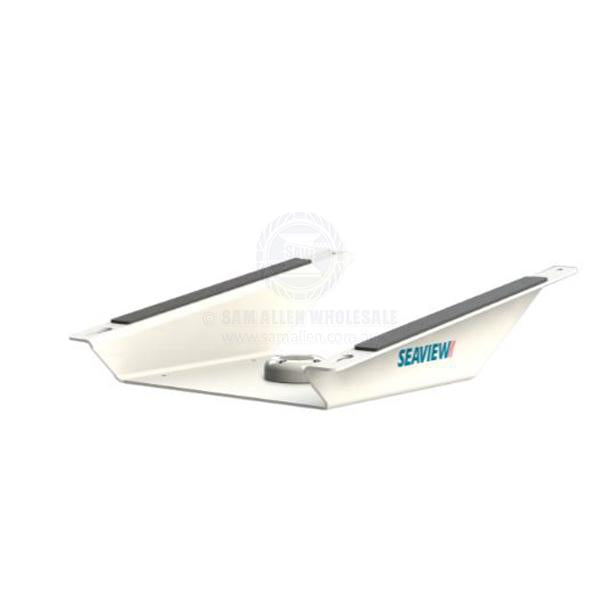

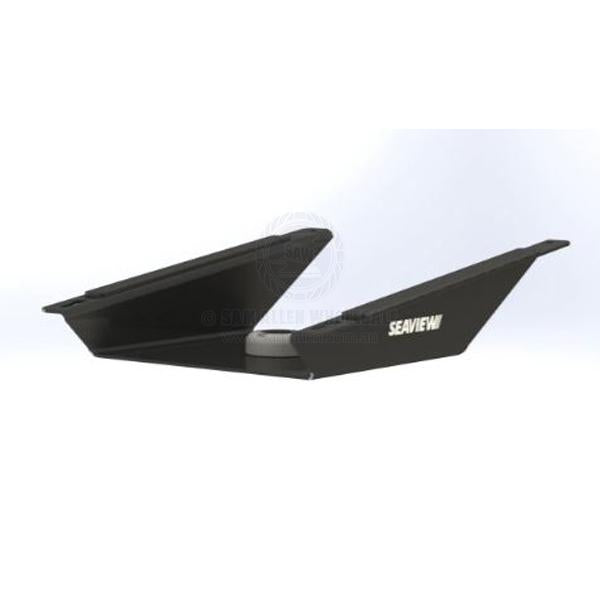

SEAVIEW ANGLED WEDGE BASE - STARLINK FLAT HP

SEAVIEW ANGLED WEDGE BASE - STARLINK FLAT HP

Regular price $530.50 AUD
Regular price Sale price $530.50 AUD
Sale Sold out
Quantity

Description

Seaview 8° angled wedge base suit Starlink Flat HP antenna white

Features

  • Specifically engineered and designed for the rigorous demands of a harsh marine environment with a 3 part polyurethane prime and powder coat to ensure the best possible finish and corrosion resistance. It is not only ideal for your boat, but also for other outdoor applications, such as RVs.
  • Designed to fit the Starlink Flat High-Performance Antenna
  • Pre-drilled mounting holes allow your antenna to fasten directly to your wedge.
  • Drilled and tapped for your Seaview standard vertical cable seal (one seal included with each Seaview wedge base.).
  • No need to cut your Starlink connectors for installation.
  • Use Seaview modular top plate 970726 (ADASTLKA) to mount angled wedge to modular base mounts ending in M1.

Specifications

Part No. CMW-970940
Model SVSLWB
Colour White
Wedge Angle 8°
Overall Dimensions 338mm x 108mm x 426mm
Note Angled wedge does not come with antenna. *Installation NOTE: We recommend the use of a marine corrosion inhibitor such as Tef-Gel during installation to prevent galling and dissimilar metal corrosion. *
