SHURFLO DECK WASH & LIVE BAIT TANK COMBO KIT – PART NO. 239311S

This kit combines a powerful deck‑wash system with a reliable live‑bait tank supply, using stainless‑steel hardware, a recessed hose mount, and a collapsible coil hose for clean, compact storage. It is designed for boats requiring both high‑pressure deck cleaning and consistent bait‑tank water flow, using 1/2 inch I.D. PVC pressure hose for the deck wash and 3/4 inch hose for the bait tank.

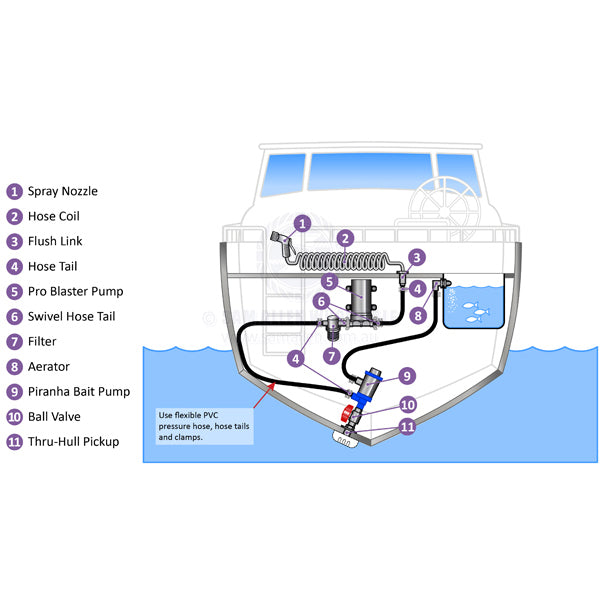

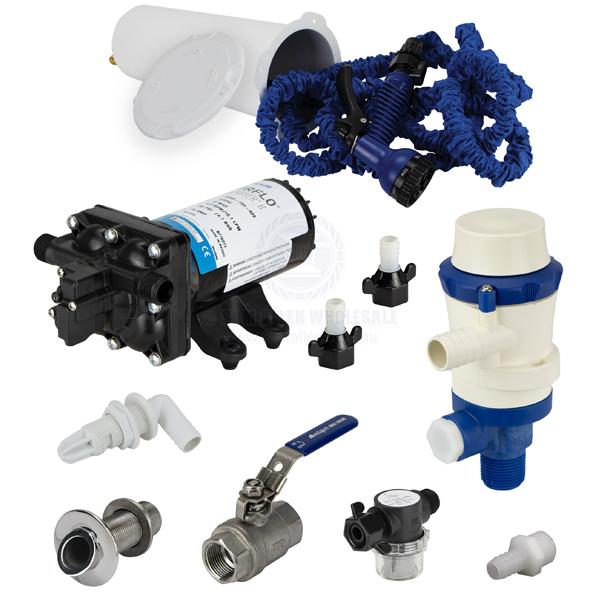

Kit 239311S – Full Component Breakdown

• 1 x 239431 Pro Blaster II Deck Wash Pump – 12V – 15.1 LPM (5) A strong, high‑pressure pump ideal for blasting away bait, blood, sand, and salt. Delivers reliable flow and pressure for fast deck cleaning.

• 1 x 23035 Piranha Livewell Pump – Dual Port – 12V – 600 GPH (9) Supplies both the live bait tank and the deck‑wash system from a single pump. Efficient, dependable, and designed for continuous marine use.

• 1 x 23766 Flush Mount Washdown Hose Kit – 4.5m (2) A recessed, flush‑mount hose system with a collapsible coil hose for tidy storage and quick deployment.

• 1 x 23974 Hose Tail – 1/2" NPTM to 1/2" I.D. – Nylon (4) Durable nylon hose tail for secure, leak‑free plumbing.

• 2 x 23963 Swivel Hose Tail – 1/2" NPTF to 1/2" I.D. – Nylon (6) Swivel fittings prevent hose twisting and make installation easier in tight spaces.

• 1 x 23956 Water Strainer – Swivel Nut – 1/2" NPTF x 1/2" NPSM (7) Protects pumps from debris and ensures long service life. Easy to remove and clean.

• 1 x 23036 Aerator Head – 90° x 3/4" I.D. – Nylon – White (8) Provides smooth, quiet water flow into the bait tank with minimal splash.

• 1 x 45546 Ball Valve – 3/4" BSPF – Stainless Steel (11) Heavy‑duty stainless‑steel shut‑off valve for full control of water flow and system isolation.

• 1 x 23042 Hi‑Speed Thru‑Hull Pickup – 3/4" BSPM – Stainless Steel (12) A stainless‑steel high‑speed pickup designed to maintain water supply even while underway. Strong, corrosion‑resistant, and built for long‑term marine use.

Why This Kit Works Well for Boat Owners

• Combines deck wash and live bait tank supply in one complete package
• Stainless‑steel pickup and ball valve for maximum corrosion resistance
• Recessed hose mount keeps the deck tidy and reduces trip hazards
• Collapsible coil hose stores neatly and deploys quickly
• Dual‑port pump simplifies plumbing and reduces clutter
• Suitable for aluminium and fibreglass vessels
• Designed for saltwater environments and heavy fishing use

Coffs Metal Works Installation Advantage

Coffs Metal Works installs this kit with:

• Clean, professional hose routing
• Waterproof wiring and switch integration
• Custom aluminium brackets and mounts
• Proper pump positioning for maximum performance
• Optional upgrades such as extra outlets, hose storage, or deck plates

This kit integrates perfectly with the workshop’s custom aluminium fabrication and full marine‑electronics fit‑out services.
