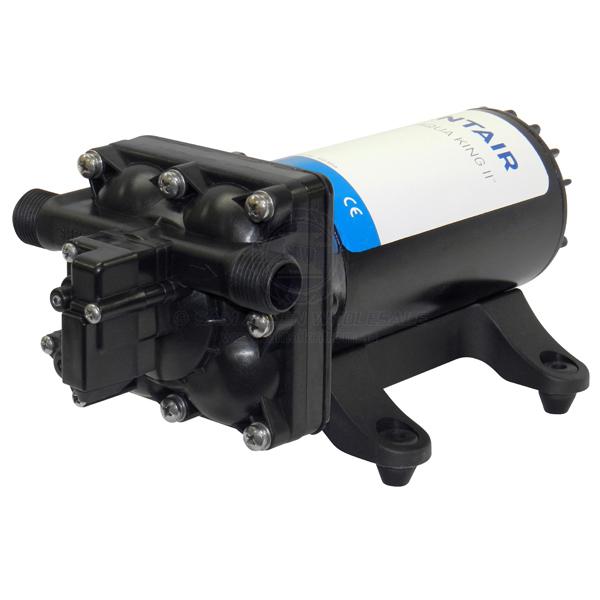

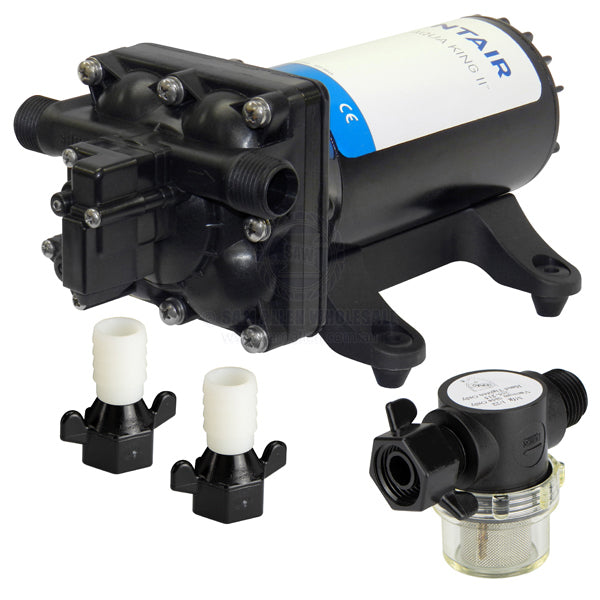

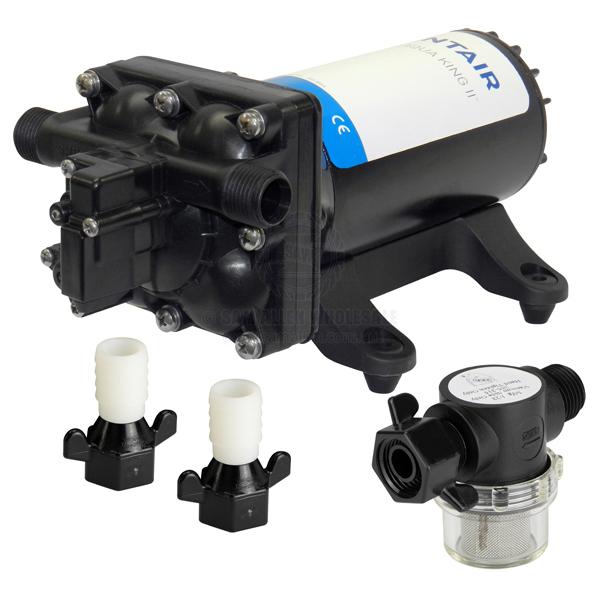

Pentair Shurflo Aqua King II Supreme Fresh Water Pumps are designed for boats with multiple fixtures use, providing inchjust like home inch water pressure.
A built in mechanical bypass function enables these pumps to operate at lower flow conditions with minimal cycling.
Features heavy-duty, seamless shell electro-coated motors.
Factory set adjustable pressure switch.
Self priming up to 1.8m.
Inlet & Outlets Ports: 1/2 inch NPSM.
Mounting screw size dia. 3/16 inch (4.8mm).
RCM Certified to Australian Standards. Thermally Protected, CE, IMCI Certified, Ignition Protected ISO 8846.
Specifications
Part No.
CMW-239341
Length
255mm
Width
125mm
Height
121mm
Application
Intermittent Duty - Multi-Fixtures Pump Only
Volts
12V
Amps
13A
Flow Rate
5.0 GPM (18.9 LPM)
Shut-Off Pressure
55PSI
Port Size Inlet / Outlet
1/2 inch NPSM
Unit Qty
1
Note
Pump must be installed in a dry, dust free location. Do not use Teflon thread tape or sealing compound on pump threads.
