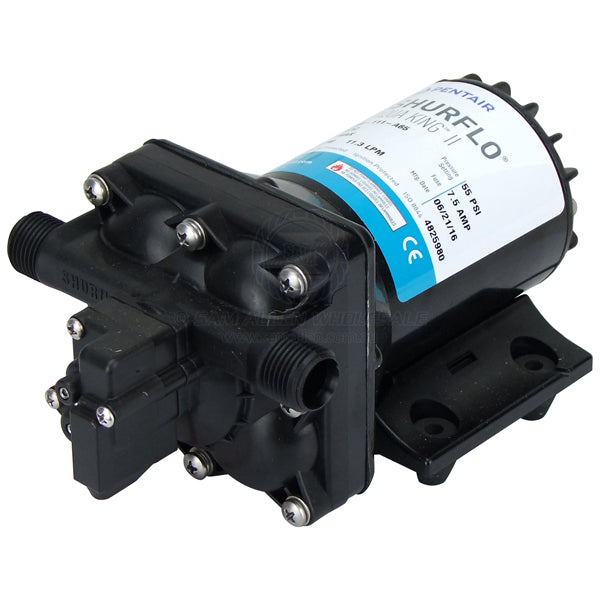

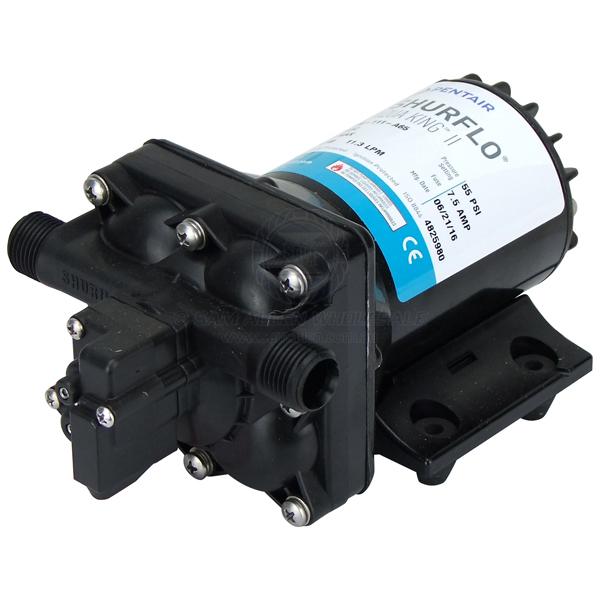

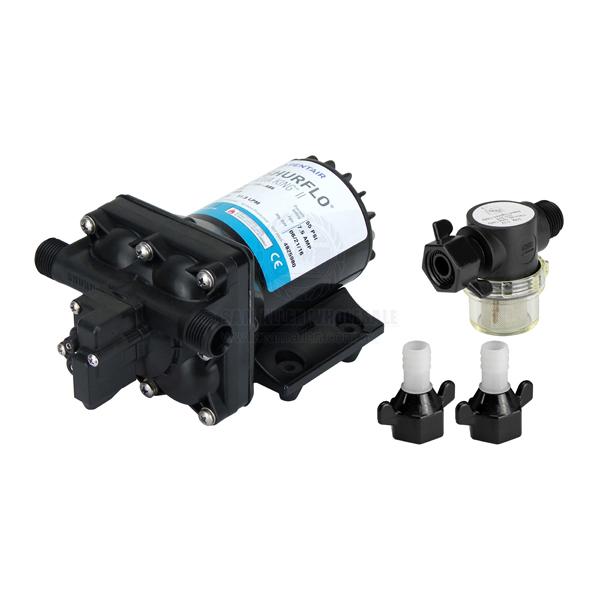

Pentair Shurflo Aqua King II Junior & Standard Fresh Water Pumps are designed with a unique over-moulded single-piece diaphragm and internal bypass (3.0 version) for long life and reliable performance.
These freshwater automatic demand pumps are quiet and can run dry without damage.
Features heavy-duty, seamless shell electro-coated motors.
Factory set adjustable pressure switch.
Self priming up to 1.8m.
Inlet & Outlets Ports: 1/2 inch NPSM.
Mounting screw size dia. 3/16 inch (4.8mm).
RCM Certified to Australian Standards. Thermally Protected, CE, IMCI Certified, Ignition Protected ISO 8846.
Specifications
Part No.
CMW-239330
Length
208mm
Width
125mm
Height
105mm
Application
Intermittent Duty - up to 2 Fixtures
Volts
12V
Amps
3.5A
Flow Rate
2.0 GPM (7.6 LPM)
Shut-Off Pressure
30 PSI
Port Size Inlet / Outlet
1/2 inch NPTM
Unit Qty
1
Note
Pump must be installed in a dry, dust free location. Do not use Teflon thread tape or sealing compound on pump threads.
