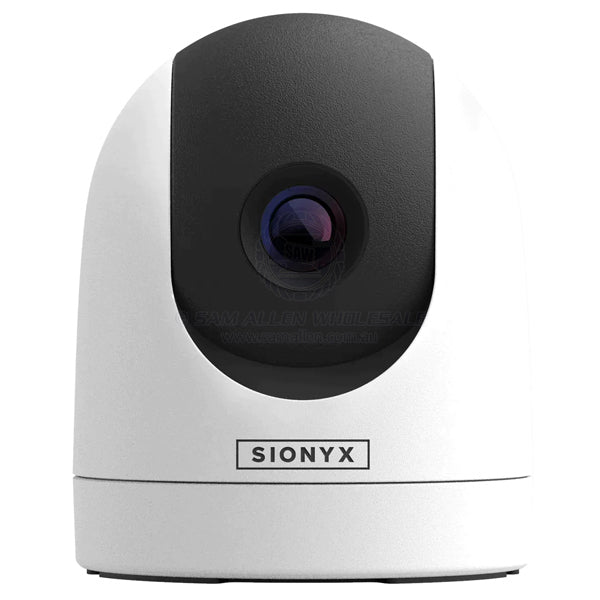

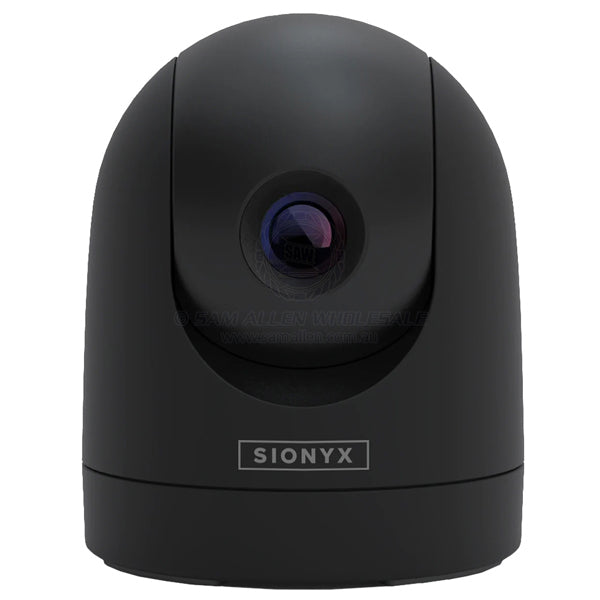

SIONYX Nightwave – Ultra Low‑Light Marine Camera

Category: Products > Marine Electronics > Night Vision

Overview

The SIONYX Nightwave is a professional‑grade ultra low‑light marine camera designed for night navigation, bar crossings, offshore fishing, and search‑and‑rescue operations. Coffs Metal Works uses Nightwave across our boat builds and offers it for public sale due to its proven performance, reliability, and clarity in near‑dark conditions.

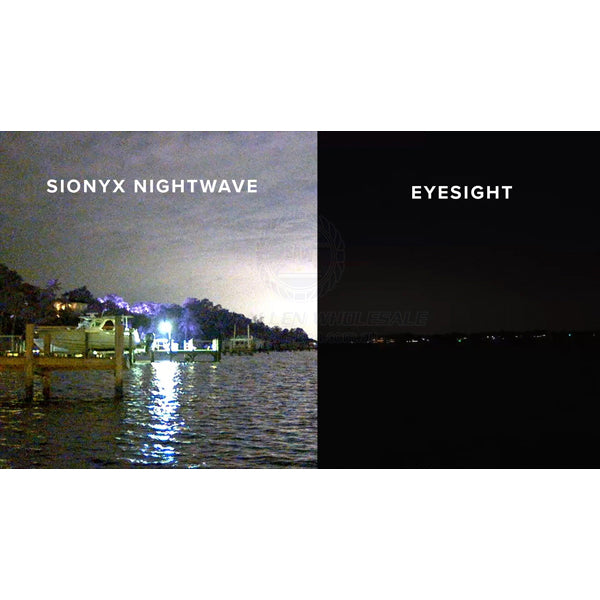

Nightwave allows operators to detect man‑sized objects up to 150m under ¼‑moon conditions, delivering unmatched situational awareness and safety on the water.

Key Features

• Detects man‑sized objects up to 150m with ¼‑moon illumination
• 30Hz FPS @ 1280 × 1024 using the XQE‑1350 BSI CMOS sensor
• 16mm F/1.4 lens for maximum low‑light sensitivity
• 30Hz FPS @ 640 × 640 NTSC analogue video output
• 10m to infinity focus range
• Operates across 400–1200NM visible spectrum
• SMA / BNC / RCA analogue video connections

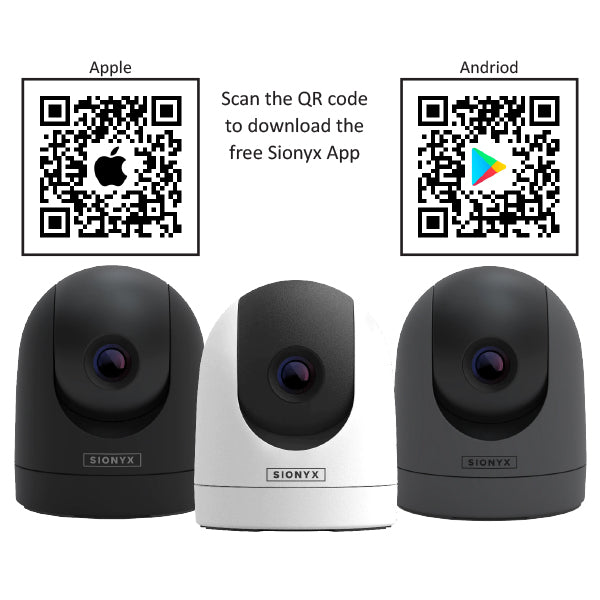

• Wireless connectivity: WiFi + Bluetooth
• UV‑resistant polycarbonate housing

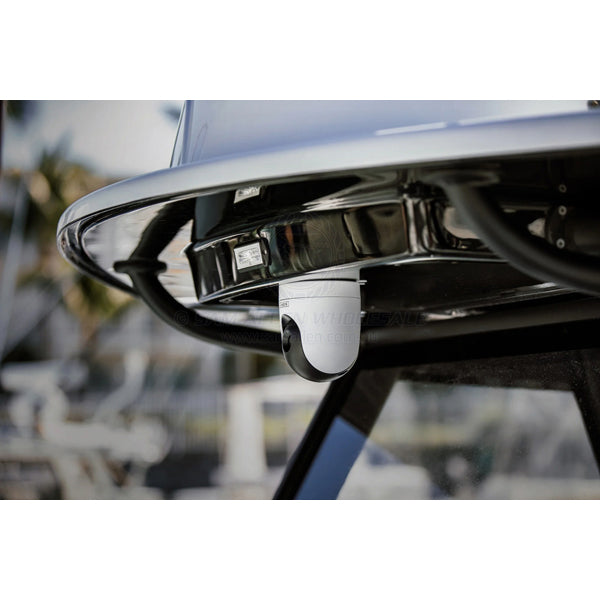

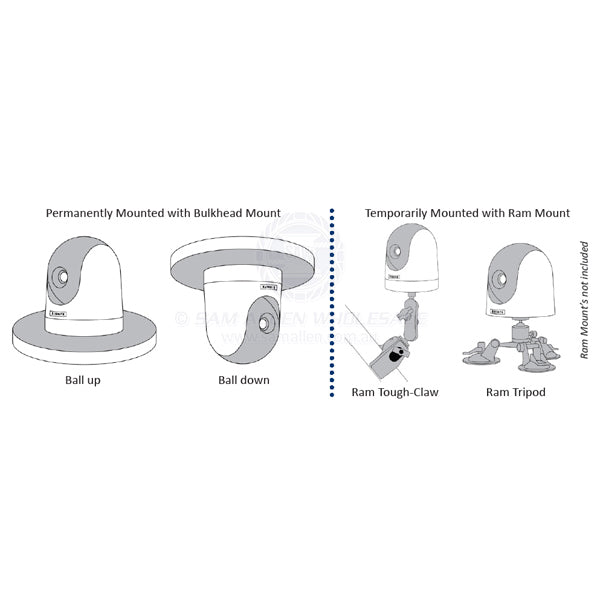

• Multiple mounting options for marine installations
• Operating temperature: –20°C to +50°C
• Includes 5m tinned copper wire
• Shock & vibration rated: IEC60945 (V:15G | H:9G) | IK08
• Protection rating: IP67 (fully waterproof)

What’s Included (Kit Contents)

SIONYX Nightwave Ultra Low‑Light Marine Camera

• Analogue Video Cable – 5m
• SMA to BNC Adapter
• BNC to RCA Adapter
• Power Fuse & Fuse Holder
• Digital Video Cable – USB (3m)
• Base Gasket
• Mounting Hardware
• User Manual
• Installation Template

Specifications

• Sensor: XQE‑1350 BSI CMOS
• Resolution: 1280 × 1024 (digital), 640 × 640 NTSC (analogue)
• Frame Rate: 30Hz
• Lens: 16mm F/1.4
• Focus Range: 10m → Infinity
• Spectrum: 400–1200NM
• Connectivity: SMA, BNC, RCA, WiFi, Bluetooth
• Housing: UV‑resistant polycarbonate
• Waterproof Rating: IP67
• Shock/Vibration: IEC60945 | IK08
• Operating Temp: –20°C to +50°C
• Power Cable: 5m tinned copper

• Ideal For
• Night navigation & bar crossings
• Offshore fishing
• Search & rescue
• Commercial vessels
• Recreational boats
• Marine safety upgrades
• Coffs Metal Works custom boat builds
