Coffs Metal Works

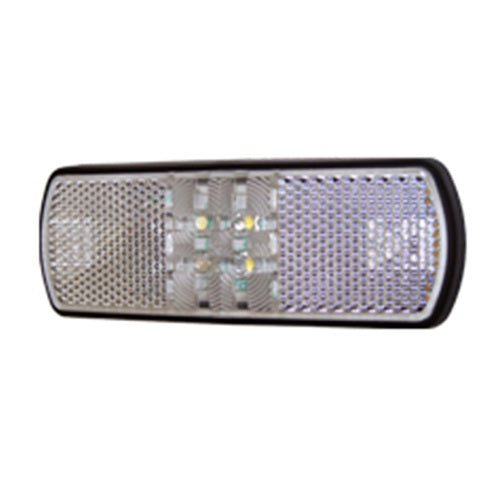

SM50 Series Clear Lens Front Clearance LED Marker
SM50 Series Clear Lens Front Clearance LED Marker
Regular price
$30.50 AUD
Regular price
Sale price
$30.50 AUD
Quantity
Couldn't load pickup availability
Description
50 Series LED marker lamps feature a slimline design with integrated reflectors providing a single-package solution for forward, side, and rear marker/reflex reflector functions. The low profile design allows for a streamlined flush fitting that contours with modern vehicle styling. An innovative mounting system uses a Smart Clip™ module and base design for secure fitting. Suited to OE and commercial applications. Integrated super-seal connector options are also available.
Features
- All-in-one compliant marker/reflector solution
- Streamlined design to match modern vehicles
- Secure Smart Clip™ mounting
- Optional integral super seal connector
- Fully ADR compliant
Specifications
| Voltage: | 9-33V |
| Power: | Front:1.8W Side:1.2W Rear:1.2W |
| Lens: | High Impact PMMA |
| Housing: | ABS |
| Mounting: | Smart Clip™ |
| Environmental: | IP67 |
Parts List
| CMW-FM50CLED | Clear LED Front Clearance Lamp with Reflectors |
| CMW-SM50ALED | Amber 'Slimline' LED Side Marker with Reflectors |
| CMW-RM50RLED | Red 'Slimline' LED Rear Marker Lamp with Reflectors |
