Coffs Metal Works

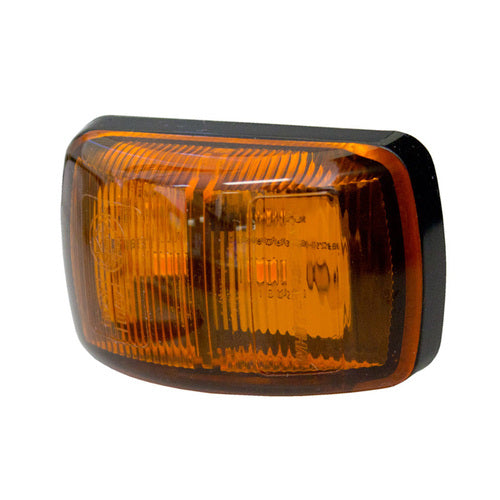

SM62 Series Amber Lens Side LED Marker (Boxed)
SM62 Series Amber Lens Side LED Marker (Boxed)
Regular price
$16.50 AUD
Regular price
Sale price
$16.50 AUD
Quantity
Couldn't load pickup availability
Description
The SM62LED series is a compact, low profile LED marker with a highly contoured design for seamless integration with modern vehicle styles. Designed for reliability and performance this range of markers provides ADR compliant solutions for front end outline, rear position, supplementary indicator and side marker functions. Featuring a small footprint design the SM62LED series can be fitted easily where space is limited. With slimline smart clip mounting the clip base is invisible when the lamp is installed which makes a perfect lamp to vehicle match and professional finish.
Features
- Low profile LED marker
- Highly aesthetic optics
- Slimline design
- Invisible Smart Clip™ mounting
- Fully ADR compliant
Specifications
| Applications | •Trucks •Rigid Bodies •Buses & Coaches •Trailers •Boat Trailers •Custom Builds |
| Functions | Side Marker - Red / Amber, AmberClearance Marker - Clear, Red |
| Voltage | 9-33V DC VarivoltÆ |
| Wattage | 0.4W - all functions |
| Mounting | Invisible Smart Clip™ |
| Materials | Polycarbonate Lens ABS Body |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M Standard, 3M Optional |
| Dimensions | 57x35x21mm |
| ADR/CRN | SM62RALED - Side Marker:45/01 - 46229 SM62ALED - Side Marker: 74/00 - 46227 RM62RLED - Rear Position: 49/00 - 46522 FM62CLED - Front End Clearance: 49/00 - 46226 |
Parts List
| CMW-SM62RALED | 62 Series Side Marker 9-33V Red / Amber (Red/Amber Lens) 0.5M |
| CMW-SM62ALED | 62 Series Side Marker 9-33V Amber (Amber Lens) 0.5M |
| CMW-RM62RLED | 62 Series Rear Marker 9-33V Red (Red Lens) 0.5M |
| CMW-FM62CLED | 62 Series Front Clearance Marker 9-33V Clear (Clear Lens) 0.5M |
| CMW-3-METRE-CABLE-OPTIONS | |
| CMW-FM62CLED-3 | 62 Series Front Clearance Marker 9-33V Clear (Clear Lens) 3.0M |
| CMW-SM62RALED-3 | 62 Series Side Marker 9-33V Red / Amber (Red/Amber Lens) 3.0M |
| CMW-BLISTER-OPTIONS | |
| CMW-SM62RALEDB | 62 Series Side Marker 9-33V Red / Amber (Red/Amber Lens) BLISTER PACK |
| CMW-SM62ALEDB | 62 Series Side Marker 9-33V Amber (Amber Lens) BLISTER PACK |
| CMW-RM62RLEDB | 62 Series Rear Marker 9-33V Red (Red Lens) BLISTER PACK |
| CMW-FM62CLEDB | 62 Series Front Clearance Marker 9-33V Clear (Clear Lens) BLISTER PACK |
