Coffs Metal Works

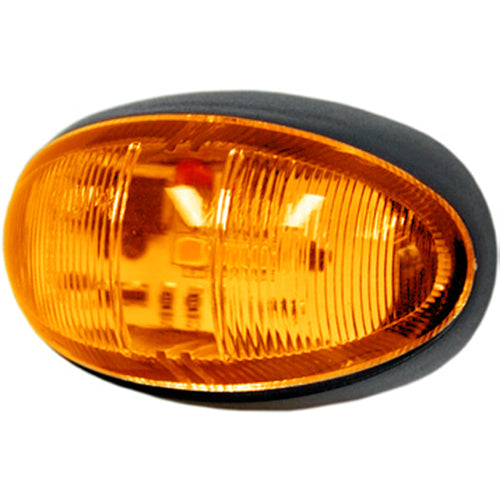

SM65 Series Amber Lens Side LED Marker (Loose)
SM65 Series Amber Lens Side LED Marker (Loose)
Regular price
$21.95 AUD
Regular price
Sale price
$21.95 AUD
Quantity
Couldn't load pickup availability
Description
65 LED series markers are designed for applications where high performance and reliability is required. With wide angle optics and extended base design, the SM65LED series delivers maximum visibility in applications where multiple markers are installed.
Providing a compliant solution for front end outline, rear position, supplementary indicator and side marker functions. These markers also feature a robust Smartclip™ base which is contoured to protect the main lens and LED module from extreme conditions.
The 65 LED series is built for heavy duty use and suited to OEM and commercial vehicle applications.
Features
- Heavy duty LED marker
- Highly visibility design
- Protective base
- Smart Clip™ mounting
- Fully ADR compliant
Specifications
| Applications | • Trucks • Rigid Bodies • Buses & Coaches • Custom Builds |
| Functions | Front Clearance Marker Side Marker Rear Position |
| Voltage | 9-33V DC Varivolt® |
| Wattage | 0.4W – all functions |
| Mounting | Smart Clip™ |
| Materials | Polycarbonate Lens ABS Body |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M Standard |
| Dimensions | 60x38x32mm |
| ADR Compliance | Front Clearance Marker: 49/01 Side Marker: 45/01 Rear Position: 49/00 |
| Homologation Certification | E-Mark |
| CRN | Pending |
Parts List
| CMW-FM65CLED | 65 Series Front Clearance Marker 9-33V Clear (Clear Lens) 0.5M |
| CMW-SM65ALED | 65 Series Side Marker 9-33V Amber (Amber Lens) 0.5M |
| CMW-SM65RALED | 65 Series Side Marker 9-33V Red / Amber (Clear Lens) 0.5M |
| CMW-RM65RLED | 65 Series Rear Position Marker 9-33V Red (Red Lens) 0.5M |
| CMW-BLISTER-OPTIONS | |
| CMW-FM65CLEDB | 65 Series Front Clearance Marker 9-33V Clear (Clear Lens) 0.5M BLISTER |
| CMW-SM65ALEDB | 65 Series Side Marker 9-33V Amber (Amber Lens) 0.5M BLISTER |
| CMW-SM65RALEDB | 65 Series Side Marker 9-33V Red / Amber (Clear Lens) 0.5M BLISTER |
| CMW-RM65RLEDB | 65 Series Rear Position Marker 9-33V Red (Red Lens) 0.5M BLISTER |
