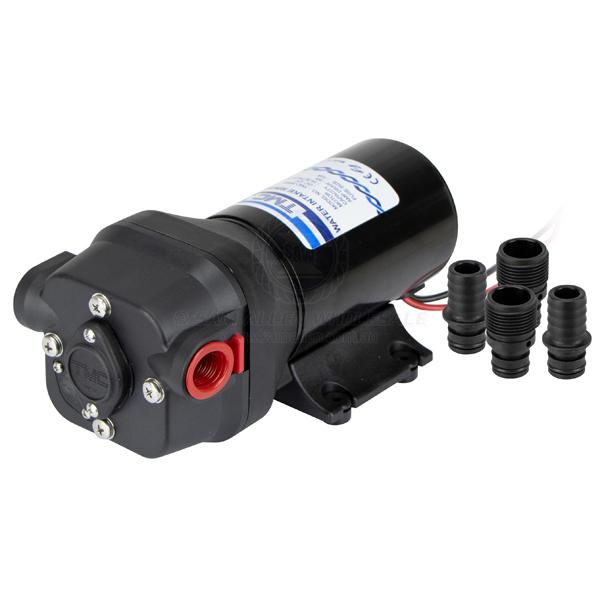

TMC TOILETS INLET RINSE PUMP - RAW WATER
TMC TOILETS INLET RINSE PUMP - RAW WATER
Regular price
$277.85 AUD
Regular price
Sale price
$277.85 AUD
Quantity
Couldn't load pickup availability
Description
Pump diaphragm TMC 16.3 l/min 24v suit quiet flush toilet water inlet
Features
- Replacement flush pump for TMC Quiet Operation Toilets.
- 4-chamber diaphragm design
- Supplies raw sea, or fresh water for flushing.
- Built-in check valve prevents backflow.
- Snap-in port fittings - 3/4 inch I.D. hose barb and 3/4 inch BSPM included.
- Built-in thermal overload protection, self-priming and can be run dry.
- CE Certified, Ignition Protected ISO 8846.
Specifications
| Part No. | CMW-23807 |
|---|---|
| Length | 218mm |
| Width | 106mm |
| Height | 97.4mm |
| Volts | 24V |
| Amps | 3A |
| Fuse Size | 5A |
| Flow Rate | 4.3GPM (16.3LPM) |
| Pressure Cut In | 20PSI |
| Pressure Cut Out | 40PSI |
| Snap-In Ports Diameter | 3/4 inch |
