Product Description
Description

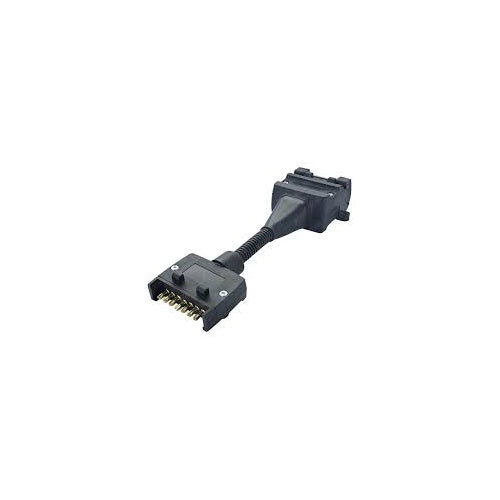

Whitevisionís 12 to 7 Pin adapter range provides an easy solution to connecting vehicles and trailers or caravans when there is either a 12 or 7 pin plug on each. Connections are wired straight through from the 7 pins to the 12 pins, catering for common lighting and auxiliary circuits - perfect for a short term tow.The range includes a 7 pin plug to a 12 pin socket adapter used for applications when the vehicle only has a 7 pin socket and the towed vehicle has a 12 pin plug. A 12 pin plug to 7 pin socket adapter is also available for applications where the vehicle has a 12 pin socket and the trailer or caravan has only a 7 pin flat plug. This makes the connection much more secure and reliable.
Features
- •7 to 12 pin trailer adapter range
- •Easy solution for connecting caravans to vehicles
- •High quality connectors
- •Flexible, durable design
Specifications
Specifications
| Voltage | 12V |
| Contact | 15A Small Pin |
| Current | 30A Large Pin |
| Cable | 4-5mm Small 6mm Large |
| Housing | PA Nylon |
| Mounting | Surface |
| Environmental | Cable seal |
Wiring Code:
| Pin No. | Color | Connect To: |
| 1 | Yellow | Left Turn |
| 2 | Black | Reverse |
| 3 | White | Earth |
| 4 | Green | Right Turn |
| 5 | Blue | Elec Brake |
| 6 | Red | Stop Lamps |
| 7 | Brown | Park Lamps |
| 8 | Orange | 12V+Bat |
| 9 | Pink | Aux Bat |
| 10 | White | Earth |
| 11 | Grey | Rear Fog |
| 12 | Violet | AUX |
Parts List
| PP12 | Plastic Plug Flat 12 Pin |
| PP12B | Plastic Plug Flat 12 Pin Blister |
| PS12B | Plastic Socket Flat 12 Pin Blister |
