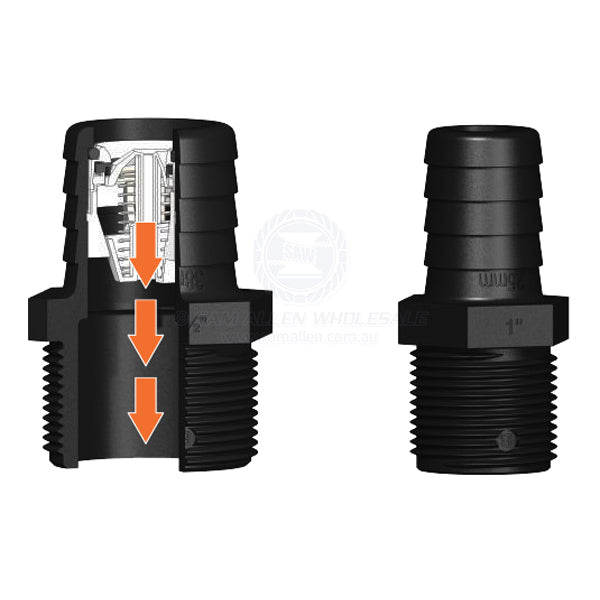

TRUDESIGN NON-RETURN VALVES - THREADED
TRUDESIGN NON-RETURN VALVES - THREADED
Regular price
$14.75 AUD
Regular price
Sale price
$14.75 AUD
Quantity
Couldn't load pickup availability
Description
Valve non return Trudesign black 1 BSPM x 1 ID hose tail
Features
- Ideal for stopping water back flow due to siphoning.
- Stainless spring - No corrosion or risk of internal valve staying open.
- Very low opening pressure with minimal restriction on flow-rate.
- Minimal installation room needed and no other fittings required.
- The White Arrow identifies water flow direction.
- Recommended operating pressure: 0 - 150 psi (Max 230 psi).
- Recommended operating temperature: 65°C (Max 93°C).
- Glass reinforced nylon composite - High strength, stiffness and light weight.
Specifications
| Part No. | CMW-450041 |
|---|---|
| Tail Diameter | 1 inch (25mm) |
| Colour | Black |
| Recommended Flow Rates (Litre/min) | 25 - 79 |
| Opening Pressure | ~ 0.29 PSI |
| Note | TruDesign Non-Return Valves should not be used in direct contact with petrol or diesel as the nitrile O-ring may swell affecting their sealing performance. |
