Coffs Metal Works

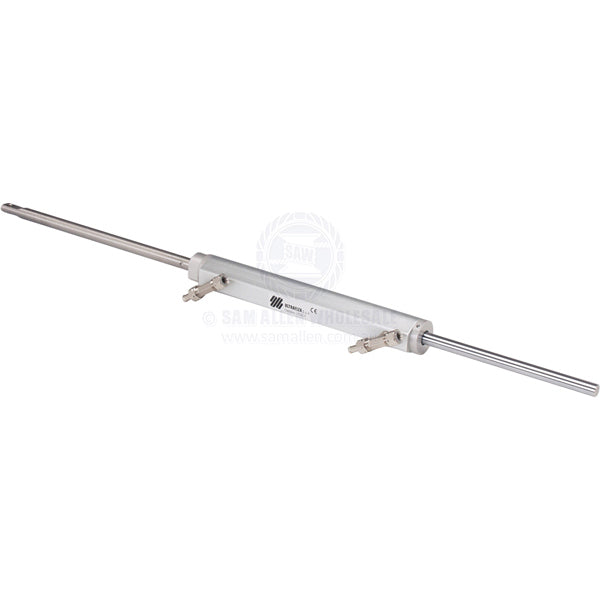

ULTRAFLEX HYDRAULIC CYLINDER - STERNDRIVE UC133-IOB

ULTRAFLEX HYDRAULIC CYLINDER - STERNDRIVE UC133-IOB

$803.20 AUD
$803.20 AUD
Sale Sold out
Shipping calculated at checkout.

Description

UC133-10B BALANCE STERN DRIVE

Features

  • For sterndrive engines.
  • Balanced: the number of turns lock-to-lock is equal.
  • Maximum rudder torque 66 kgm (5738 lbs. in).
  • The UC133-IOB cylinders are recommended for use with UP28 or UP33 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).

Specifications

Part No. CMW-83965
Model UC133-IOB
Volume 132 cc - 8 cu. In
Output Force 464 kg - 1023 lbs
Inside Diameter 32 mm - 1.25 inch
Stroke 203 mm - 8 inch
For high pressure flex hose 3/8 inch Tube Fittings
Torque 66 kgm - 5738 lbs. in

Guides & Documents

83965_applications.pdf
