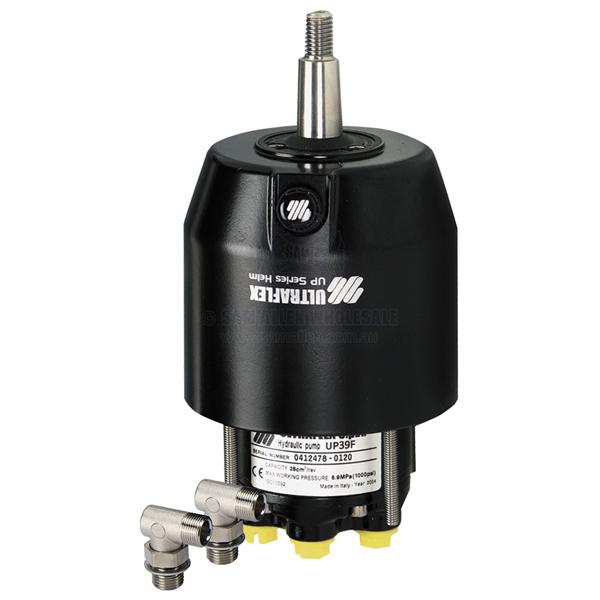

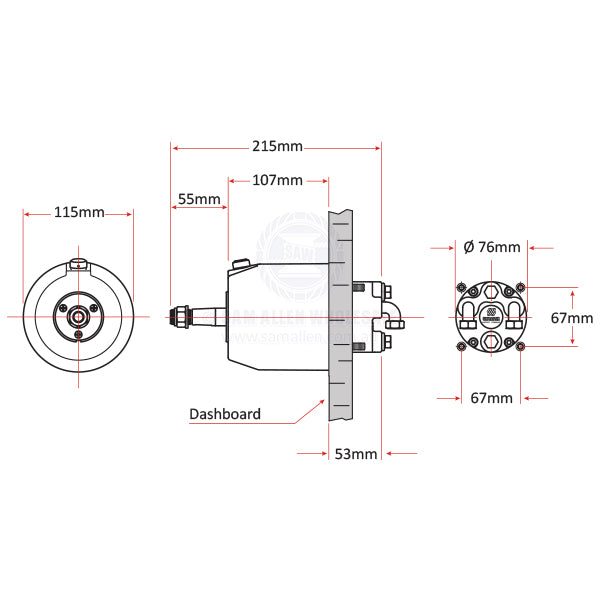

Steering helm hydraulic Ultraflex UP25F front mount
Specifications
Part No.
CMW-83925
Model
UP25F
Mounting
Front Mount
Displacement / Revolution
25cc - 1.5cu.in
No. of Pistons
5
Relief Valve Setting
70Bar - 1000PSI
Max Wheel Diameter
710mm - 28 inch
Note

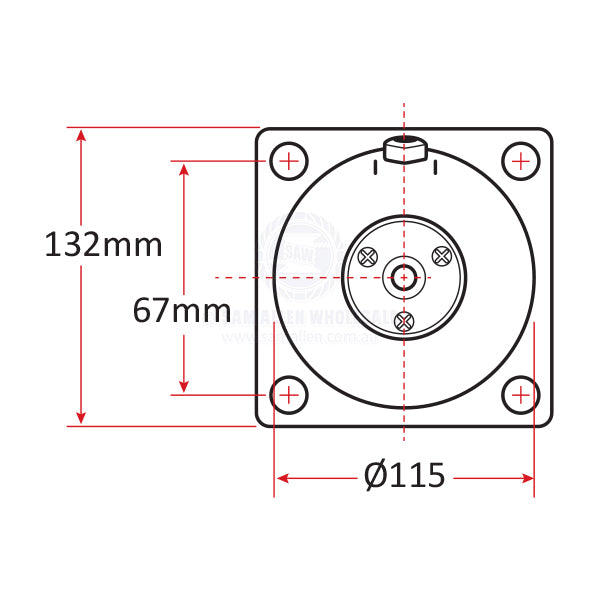

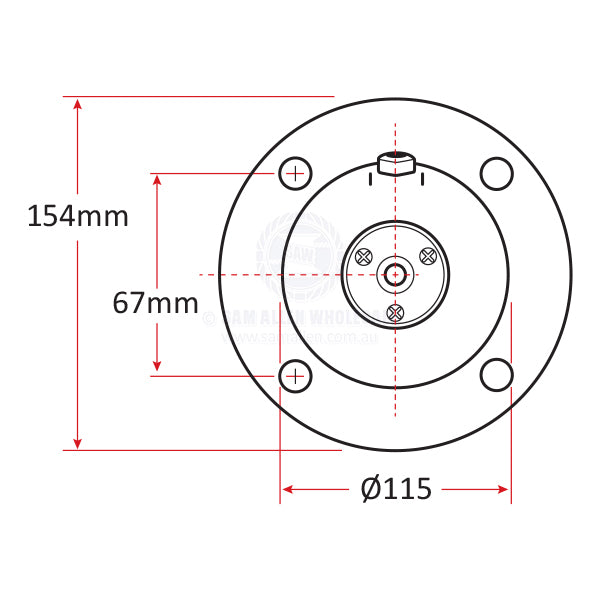

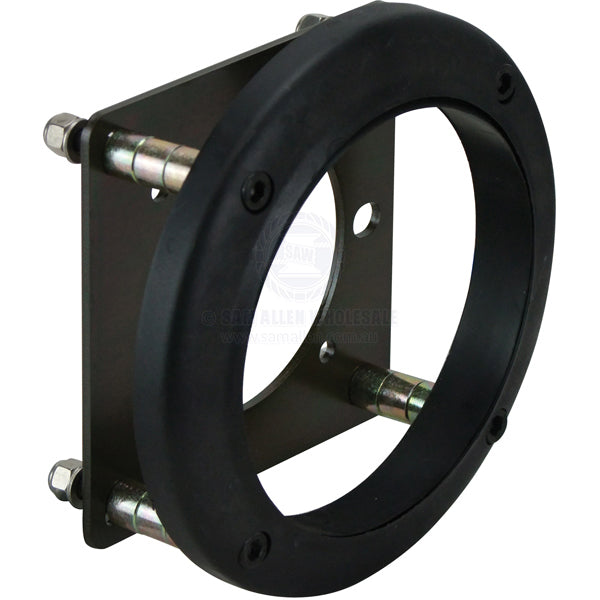

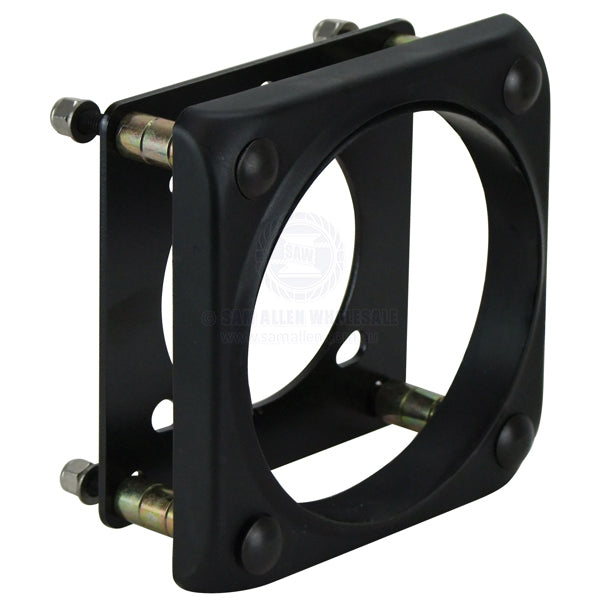

• Available in four different displacement sizes. • Compact design. • Ball bearing piston race. • Built-in lock valves for positive rudder lock. • Integral relief valve for over-pressure protection. • 3/4 inch tapered stainless steel shaft. • Easily accessible shaft seal for replacement. • Cast iron rotor for greater durability and longer life. • Includes adjustable swivel nut elbow fittings for 3/8 inch tube. NOTE: X64 - 83949 square flange or X57 - 83954 round flange allows the helm pumps to be installed in an intermediate dashboard position.
