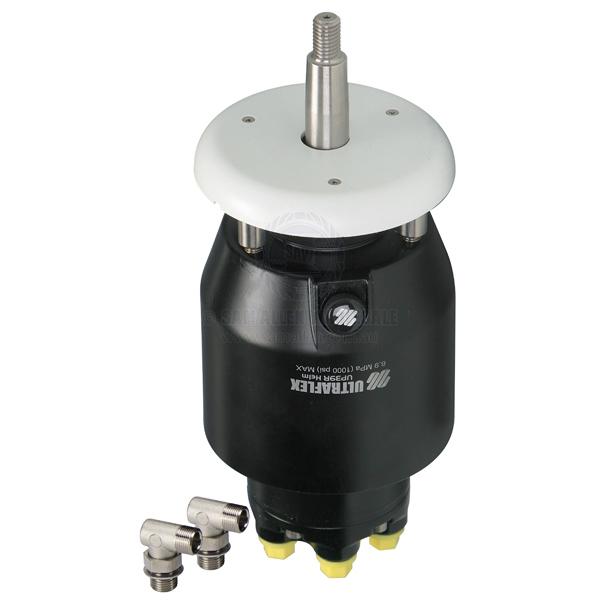

Steering helm hydraulic Ultraflex UP28R rear mount
Specifications
Part No.
CMW-83928R
Model
UP28R
Mounting
Rear Mount
Displacement / Revolution
28cc - 1.7cu.in
No. of Pistons
5
Relief Valve Setting
70Bar - 1000PSI
Max Wheel Diameter
710mm - 28 inch
Note
• Available in three different displacement sizes. • Compact design. • Ball bearing piston race. • Built-in lock valves for positive rudder lock. • Integral relief valve for over-pressure protection. • 3/4 inch tapered stainless steel shaft. • Easily accessible shaft seal for replacement. • Cast iron cylinder rotor for greater durability and longer life. • Includes adjustable swivel nut elbow fittings for 3/8 inch tube. • Complete with white bezel. NOTE: 84108 (optional but recommended) Remote Filler Kit suit rear mount helm not included.
