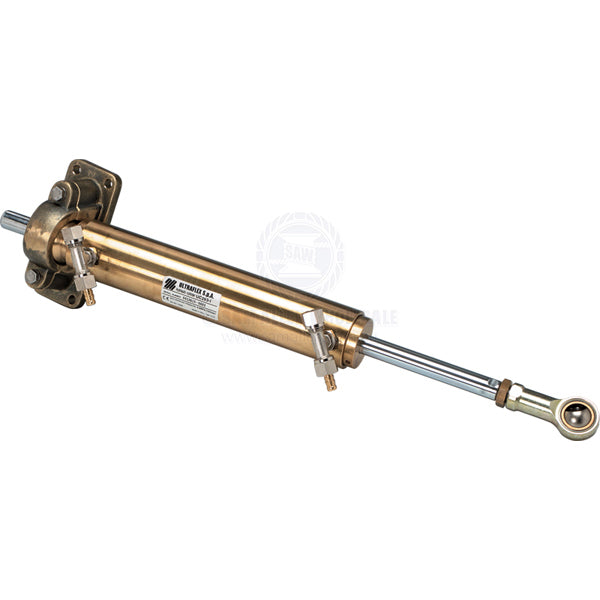

ULTRAFLEX HYDRAULIC INBOARD CYLINDER - BRASS UC378-I

ULTRAFLEX HYDRAULIC INBOARD CYLINDER - BRASS UC378-I

$1,777.55 AUD
$1,777.55 AUD
Sale Sold out

Description

Steering cylinder hydraulic inboard Ultraflex UC378-1

Features

  • For inboard engines.
  • Balanced: the number of turns lock-to-lock is equal.
  • Maximum rudder torque 187.6 kgm (16347lbs. in).
  • The UC378-I cylinders are recommended for use with UP39 series helms and 1/2 inch (12 mm) O.D. copper tube.

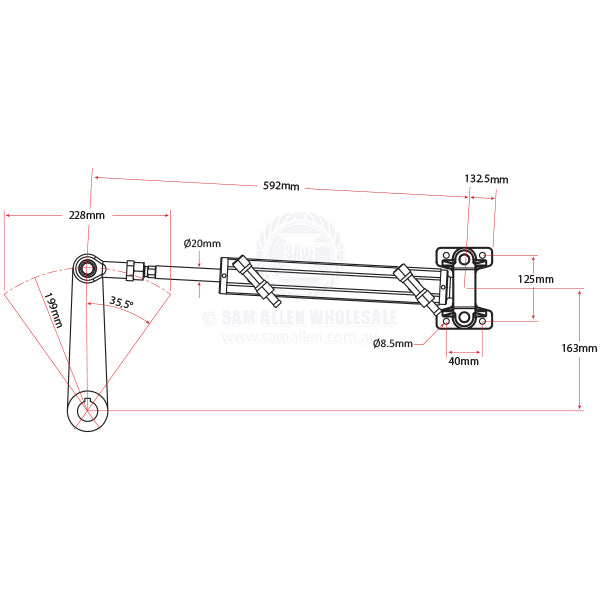

Specifications

Part No. CMW-83963
Model UC378-I
Volume 376 cc - 22.94 cu. In
Output force 1155 kg - 2545 lbs
Inside Diameter 50 mm - 1.97 inch
Stroke 228 mm - 9 inch
Tubing and Fittings 1/2 inch (12 mm) O.D. copper
Torque 187.6 kgm - 16347 lbs. in

Guides & Documents

83963_ordering_guide.pdf
