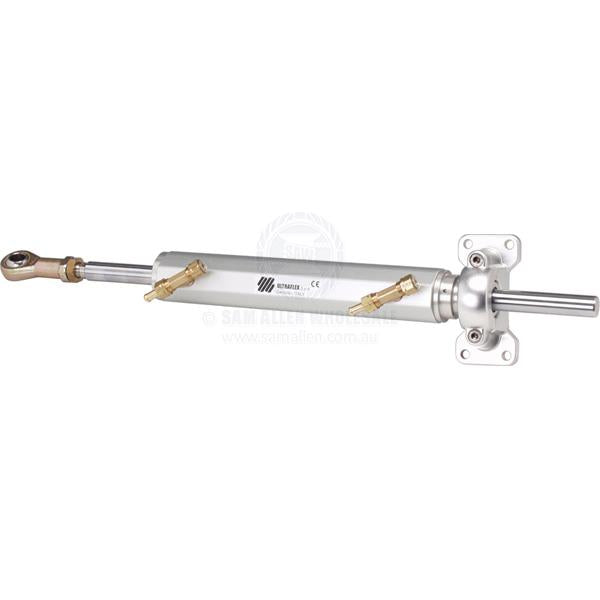

ULTRAFLEX HYDRAULIC INBOARD CYLINDER - UC116-I
ULTRAFLEX HYDRAULIC INBOARD CYLINDER - UC116-I
Regular price
$780.65 AUD
Regular price
Sale price
$780.65 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
Steering cylinder hydraulic inboard Ultraflex UC116-1
Features
- For inboard engines.
- Balanced: the number of turns lock-to-lock is equal.
- Maximum rudder torque 58kgm (5043 lbs. in).
- The UC116-I cylinders are recommended for use with UP25 or UP28 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).
- Nylon tubing 3/8 inch 84101 can be used as an alternative to the standard flexible KIT-OB hose kit for plumbing the system. For these applications the fitting kit for the additional station is 84113 - OB-2S (hose not included).

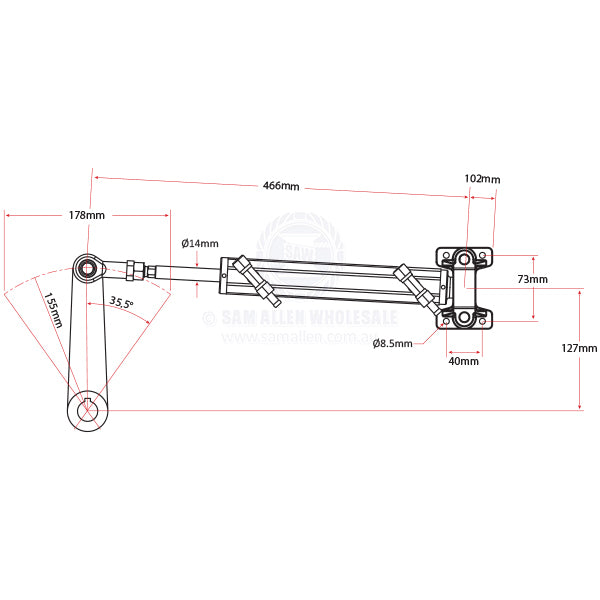

Specifications
| Part No. | CMW-83960 |
|---|---|
| Model | UC116-I |
| Volume | 116 cc - 7 cu. In |
| Output Force | 464 kg - 1023 lbs |
| Inside diameter | 32 mm - 1.25 inch |
| Stroke | 178 mm - 7 inch |
| For high pressure flex hose | 3/8 inch Tube Fittings |
| Torque | 58 kgm - 5043 lbs. in |
