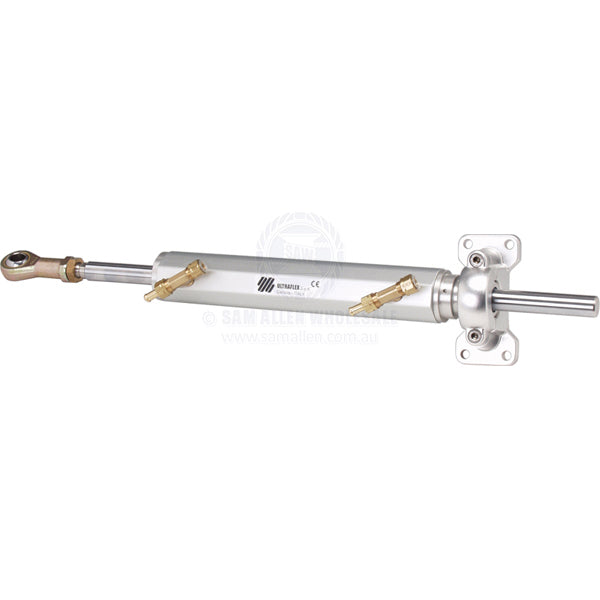

ULTRAFLEX HYDRAULIC INBOARD CYLINDER - UC215-I
ULTRAFLEX HYDRAULIC INBOARD CYLINDER - UC215-I
Regular price
$1,167.65 AUD
Regular price
Sale price
$1,167.65 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
Steering cylinder hydraulic inboard Ultraflex UC215
Features
- For inboard engines.
- Balanced: the number of turns lock-to-lock is equal.
- Maximum rudder torque 111 kgm (9652 lbs. in).
- The UC215-I cylinders are recommended for use with UP33 or UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).
- Nylon tubing 3/8 inch 84101 can be used as an alternative to the standard KIT-OB hose kit for plumbing the system. For these applications the fitting kit for the additional station is 84113 - OB-2S (hose not included).

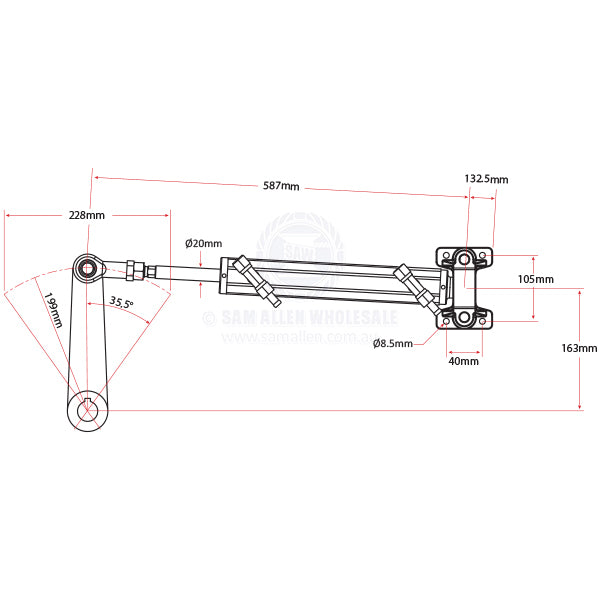

Specifications
| Part No. | CMW-83962 |
|---|---|
| Model | UC215-I |
| Volume | 215 cc - 13.12 cu. In |
| Output Force | 673 kg - 1483 lbs |
| Inside Diameter | 40 mm - 1.57 inch |
| Stroke | 228 mm - 9 inch |
| For high pressure flex hose | 3/8 inch Tube Fittings |
| Torque | 111 kgm - 9652 lbs. in |
