ULTRAFLEX HYDRAULIC INBOARD CYLINDER - UC69-I

ULTRAFLEX HYDRAULIC INBOARD CYLINDER - UC69-I

$726.80 AUD
$726.80 AUD
Sale Sold out
Shipping calculated at checkout.

Description

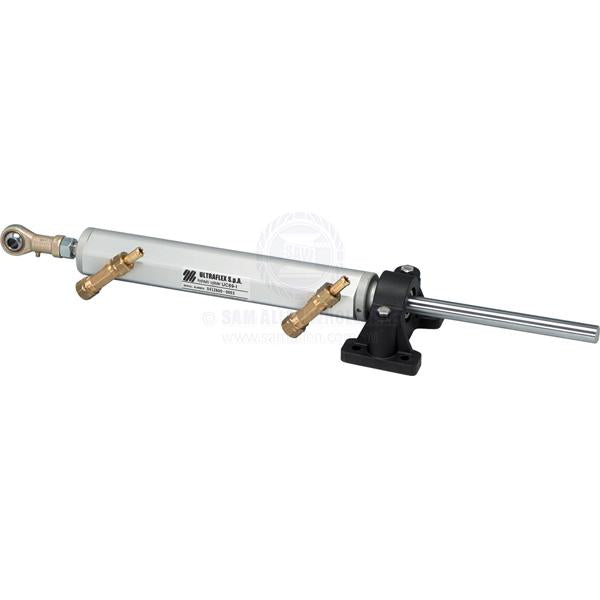

Steering cylinder hydraulic inboard Ultraflex UC69-1

Features

  • For inboard engines.
  • Balanced: the number of turns lock-to-lock is equal.
  • Recommended for inboards up to 8m (26ft) where maximum boat speed does not exceed 25knots.
  • The UC69-I cylinders are recommended for use with UP20 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).

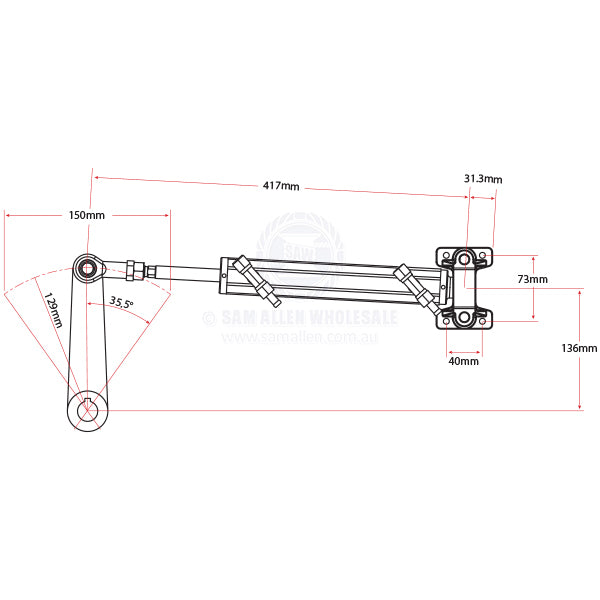

Specifications

Part No. CMW-83959
Model UC69-I
Volume 69 cc - 4.2 cu. In
Output Force 168 kg - 371 lbs
Inside Diameter 25 mm - 0.98 inch
Stroke 150mm - 5.9 inch
For high pressure flex hose 3/8 inch Tube Fittings
Torque 32 kgm - 2783 lbs. in

Guides & Documents

83959_ordering_guide.pdf
