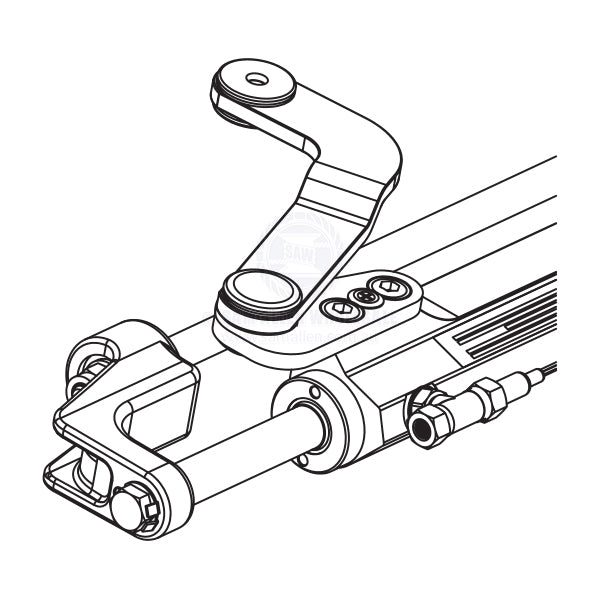

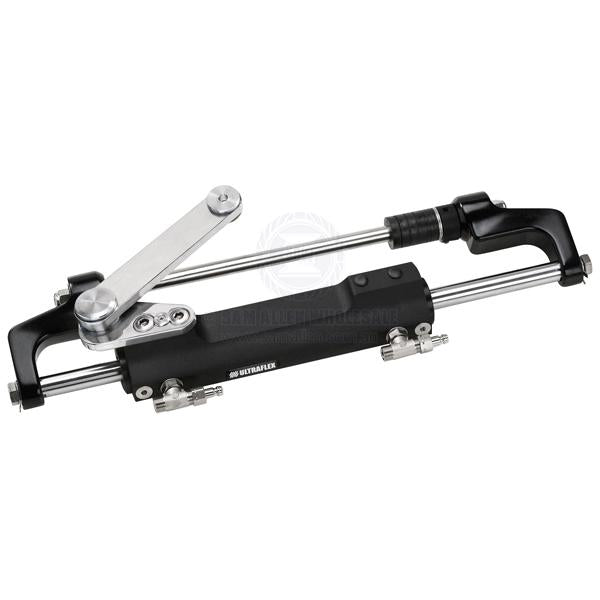

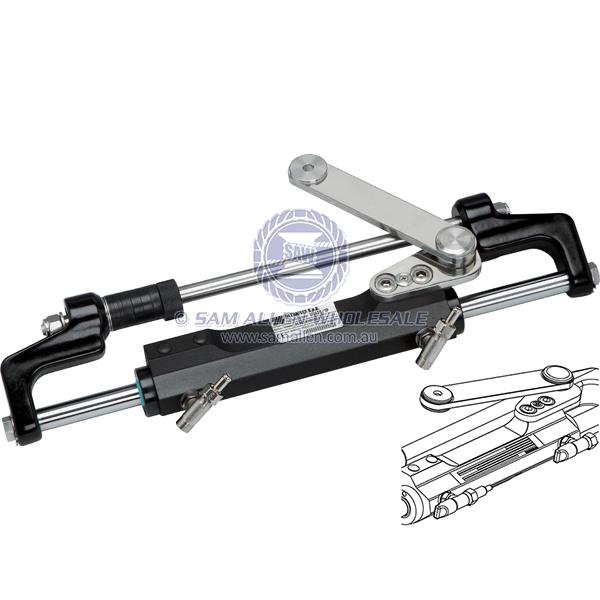

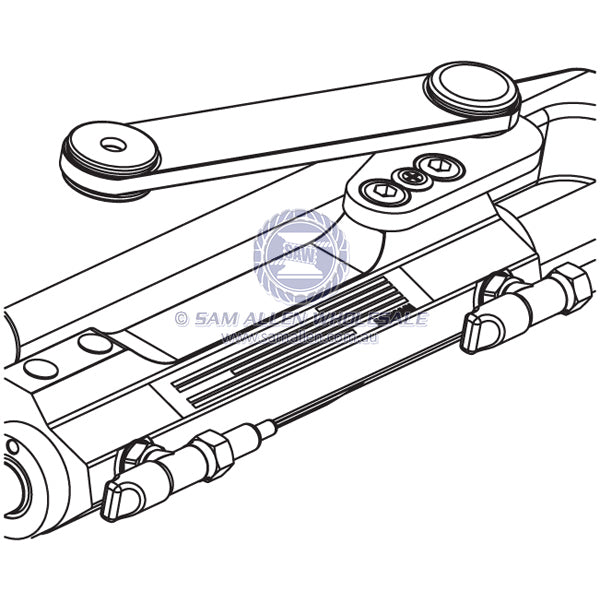

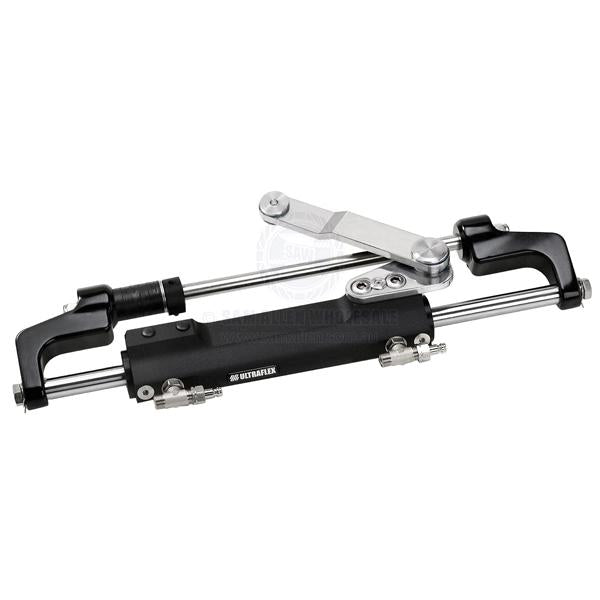

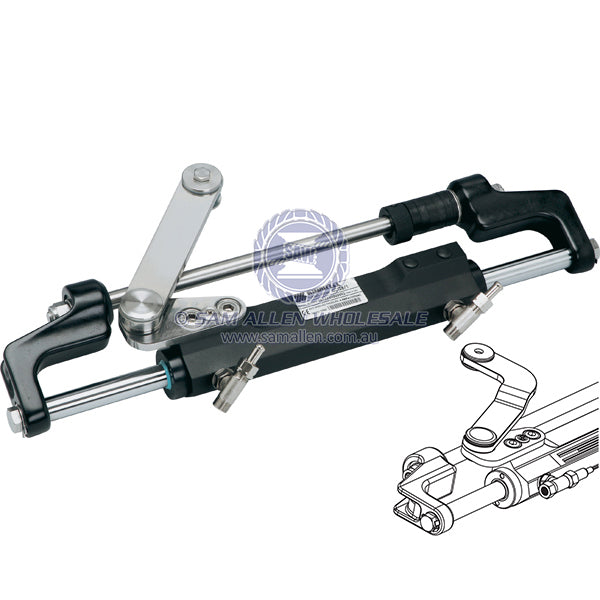

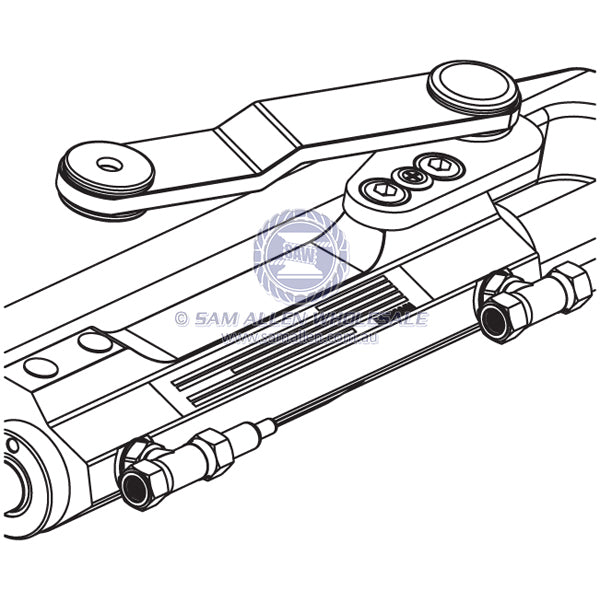

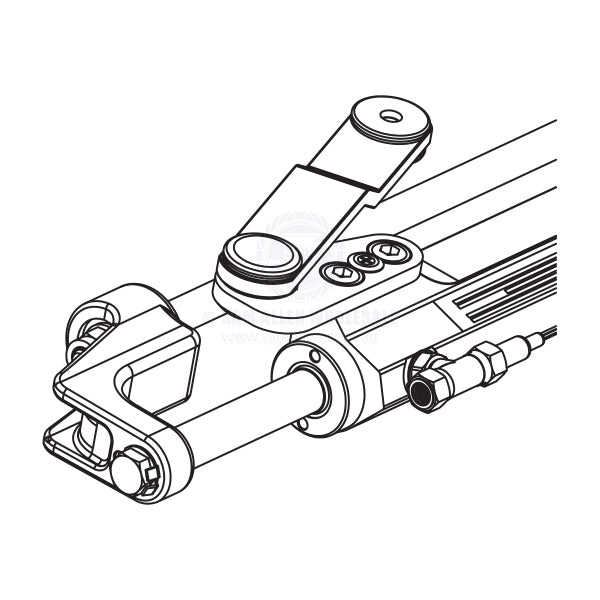

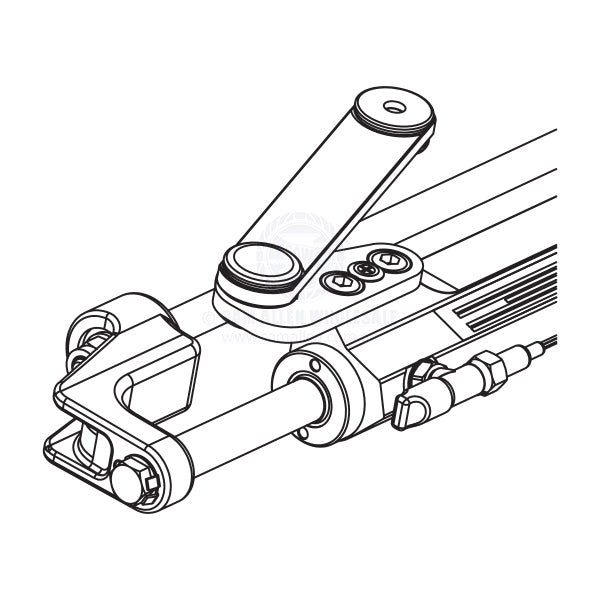

ULTRAFLEX HYDRAULIC OUTBOARD CYLINDER - FRONT MOUNT - UC128-OBF

$1,229.60 AUD

Sale Sold out

Shipping calculated at checkout.

Steering cylinder hydraulic front mount Uflex UC128- OBF/1 starboard

For outboard engines up to 300 HP.
Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
Adjustable slip nut style fittings for easy installation.
High resistance stainless steel connection bolt (Ultrabolt).
The UC128 cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies.
Constructed of top grade materials, this cylinder is simple to install and fits almost every 2 and 4 stroke outboard engine in the market.
The UC128 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).

Part No.	CMW-83913-1
Model	UC128-OBF/1
Volume	120 cc - 7.3 cu. In
Output Force	450 kg - 992 lbs
Inside Diameter	35mm - 1.37 inch
Stroke	185 mm - 7.28 inch
For high pressure flex hose	3/8 inch Tube Fittings
Bleed fittings	DN5 Quick connect
Note	For higher horsepower applications, high performance SilverSteer cylinder is recommended.
