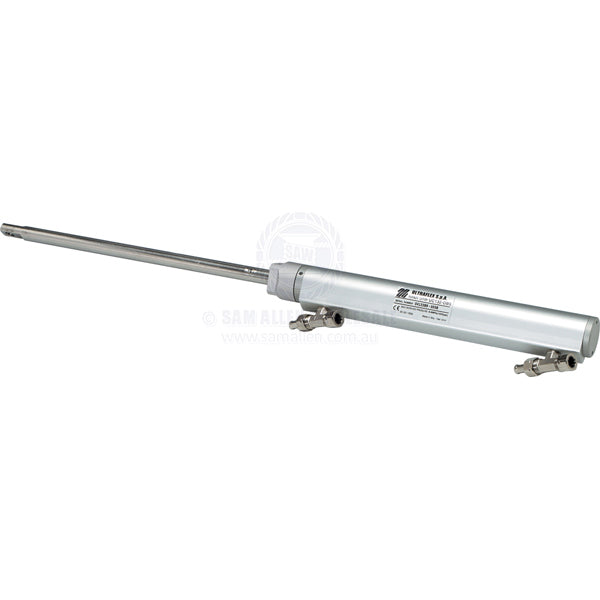

ULTRAFLEX HYDRAULIC OUTBOARD CYLINDER - STERNDRIVE UC132-OBS
ULTRAFLEX HYDRAULIC OUTBOARD CYLINDER - STERNDRIVE UC132-OBS
Regular price
$764.55 AUD
Regular price
Sale price
$764.55 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
Steering cylinder hydraulic side mount Ultraflex UC132-OBS
Features
- For sterndrive engines.
- Unbalanced: the number of turns lock-to-lock is not equal.
- UC132-OBS side mount cylinder features a patented turning nut for a fast and easy installation to the engine tilt tube.
- Clearance required at the engine tube side is 375 mm (14.76 inch).
- Recommended for use where maximum boat speed does not exceed 40knots.
- The UC132 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).
Specifications
| Part No. | CMW-83914 |
|---|---|
| Model | UC132-OBS |
| Volume | 132 / 163 cc - 8 / 9.95 cu. in |
| Output Force | 464 / 574 kg - 1023 / 1265 lbs |
| Inside diameter | 32 mm - 1.25 inch |
| Stroke | 203 mm - 8 inch |
| For high pressure flex hose | 3/8 inch Tube Fittings |
| Note | UC132-OBS cylinder is not intended for use with 105 Bar (1500psi) SilverSteer Series Helms. |
