Steering kit hydraulic Ultraflex Gotech <115hp with 6m QC hose kit

Part No.	CMW-83918-1

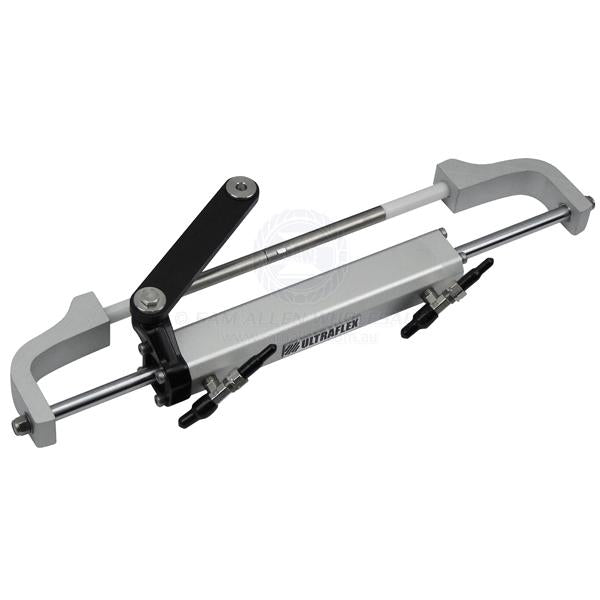

Cylinder	Front Mount UC81-OBF/1 (83917)

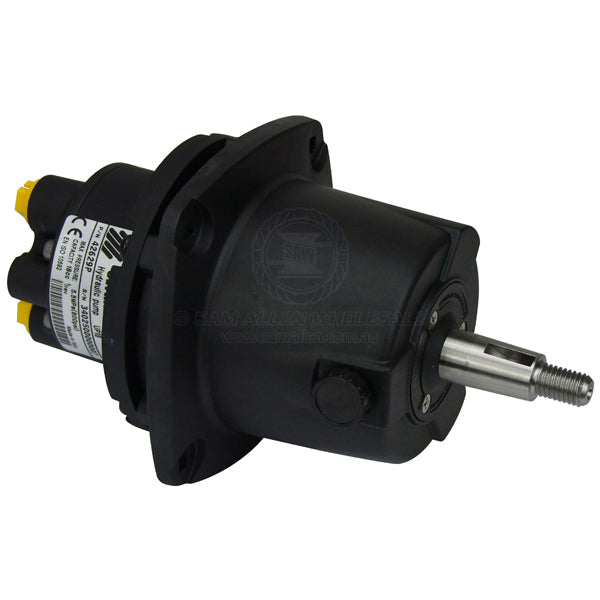

Helm/Turns	4.5 Turns UP18 (83918)

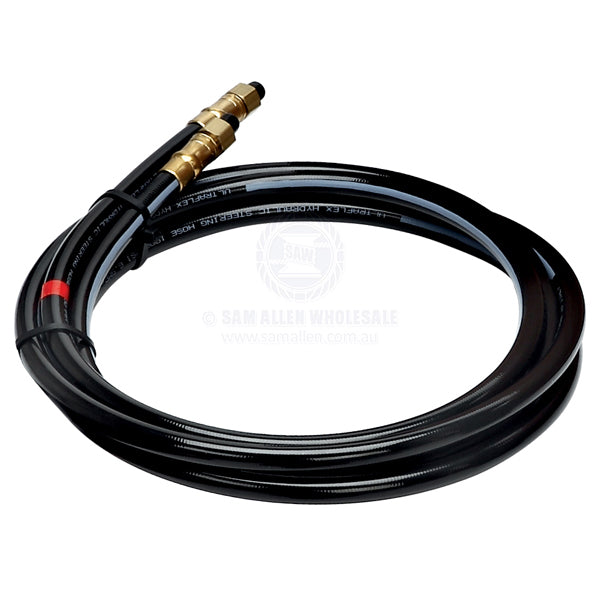

Hose Type Length	QuickFit 2 x 6 Metre 84163
Kit Ref.	1

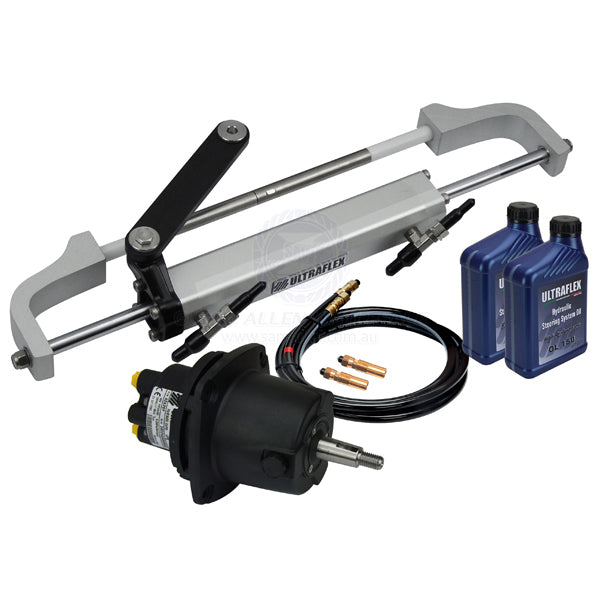

Note	The UltraFlex Gotech Steering Kit is designed for outboard engines up to 115HP. It includes a Front Mount Cylinder, Helm Pump, hydraulic oil and premium heavy-duty HiFlex QuickFit hose, everything for a simple installation. • For outboard engines rated up to 115HP. • Zero feedback for super smooth steering. • 4.5 turns lock to lock, balanced. • Heavy-duty QuickFit HiFlex hose and fittings included. NOTE: Steering wheels not included in kits. Kit Contains: 1 x 83917 - UC81-OBF front mount cylinder (Refer to chart below). 1 x 83918 - UP18 front mount helm pump 18cc. 2 x 84115 - 1 litre hydraulic oil. 1 x 84163 - 6m (19.7 inch) x 1/4 inch I.D. hoses, pre-assembled at one end and QuickFit Brass Connectors - Pair. NOTE: Suzuki DF100-115 4T engines built from 1998 to 2008 installing UC81-OBF cylinder require 83919 kit page 700.

ULTRAFLEX HYDRAULIC STEERING KIT - 115HP GOTECH - UC81-OBF
