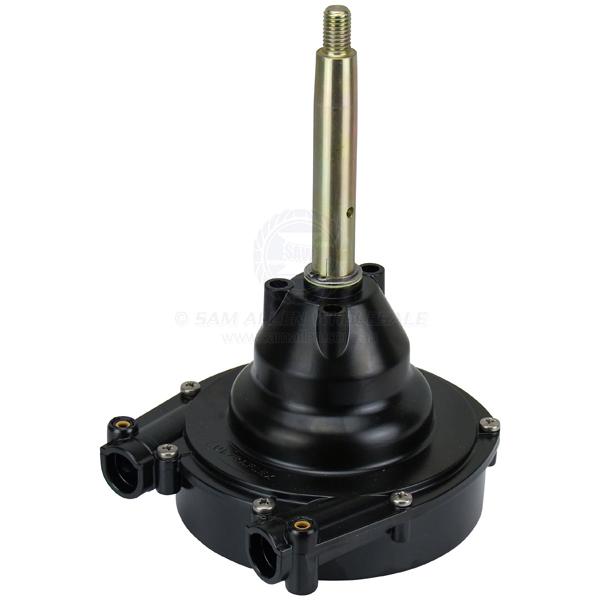

ULTRAFLEX MECHANICAL STEERING HELM - HIGH PERFORMANCE PLANETARY GEAR - T91

Features

• Specifically designed for high performance and high efficiency applications.
• Fast connect, simple installation, patented end fitting.
• Corrosion resistant materials.
• Particularly suitable where clearance is limited.
• Standard 3/4 inch tapered shaft.
• Steering wheel turns approximately 4.2 times lock to lock.
• Maximum allowable steering wheel diameter 406mm (16 inch).
• Compact mounting.
• The T91 is perfect for Outboard, Inboard and Power Assisted applications.
• Uses the Ultraflex M90 Mach cable. Mounting bezels required: X34 - 83545 - black, 90° mounting X34W - 83545W - white, 90° mounting X35 - 83540 - black, 20° mounting
• For boats faster than 50mph, dual mechanical cable or hydraulic steering systems are recommended.
• Exceeds both EN 28848 and ABYC P17 safety standards.
