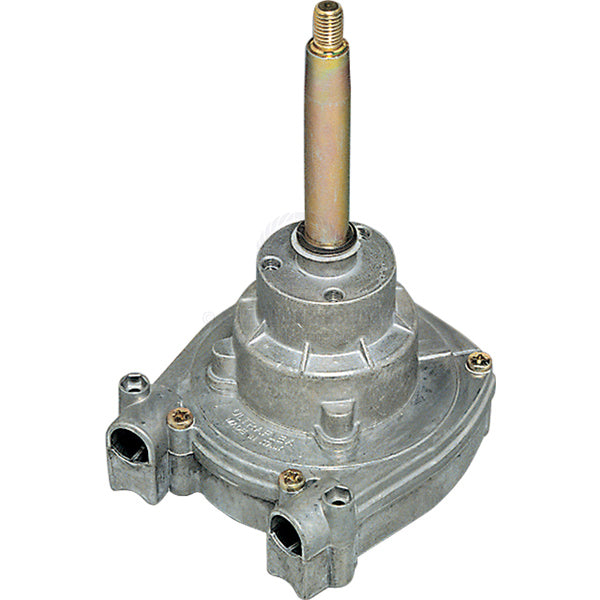

ULTRAFLEX MECHANICAL STEERING HELMS - PLANETARY GEAR - NON-FEEDBACK - T73NRFC / T74NRFC

$933.30 AUD

Sale Sold out

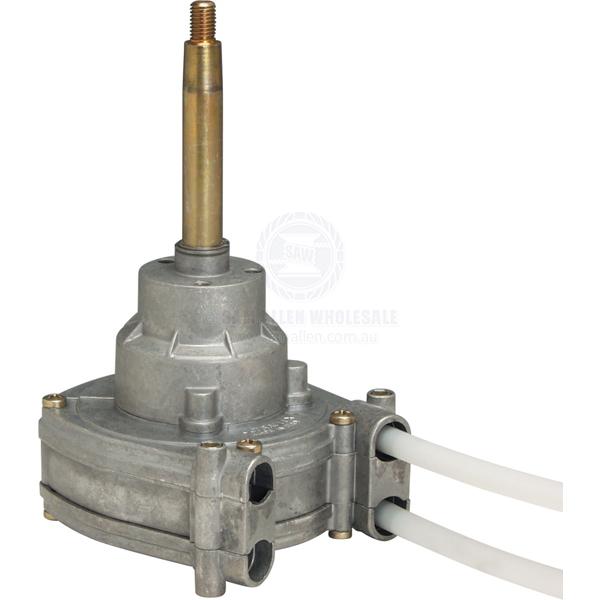

Steering helm mechanical Ultraflex T74NRFC planetary NFB twin cable

Non-Feedback design incorporates a patented mechanism, which eliminates continuous load on the operator caused by propeller torque.
Fast connect and simple installation.
Ideal for outboards
Standard 3/4 inch tapered shaft.
Corrosion resistant materials.
Steering wheel turns approximately 3.8 times lock to lock.
Maximum allowable steering wheel diameter 406mm (16 inch).
Compact mounting.
Uses M66 Ultraflex® cable or a Seastar® SSC62 style cable. Mounting bezels required (Not Included): X34 - 83545 - black, 90° mounting X34W - 83545W - white, 90° mounting X35 - 83540 - black, 20° mounting
For boats exceeding 50mph the twin cable steering system T74NRFC is recommended.
Exceeds both EN 28848 and ABYC P17 safety standards.

Part No.	CMW-83528
Model	T74NRFC
Note	Not suitable for power assisted steering, stern drives.
